Window Defogger System
Window Defogger System
WINDSHIELD
/ WINDOWGLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DIAGRAM

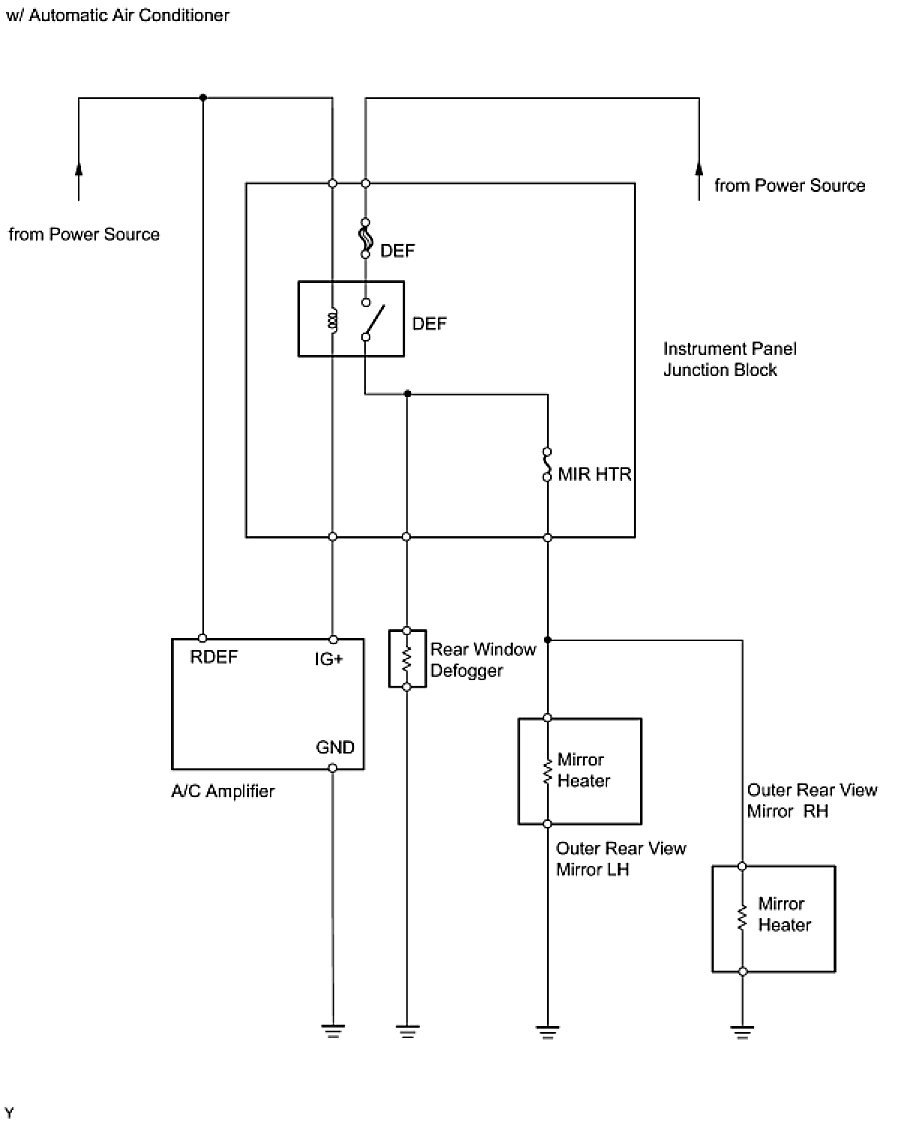

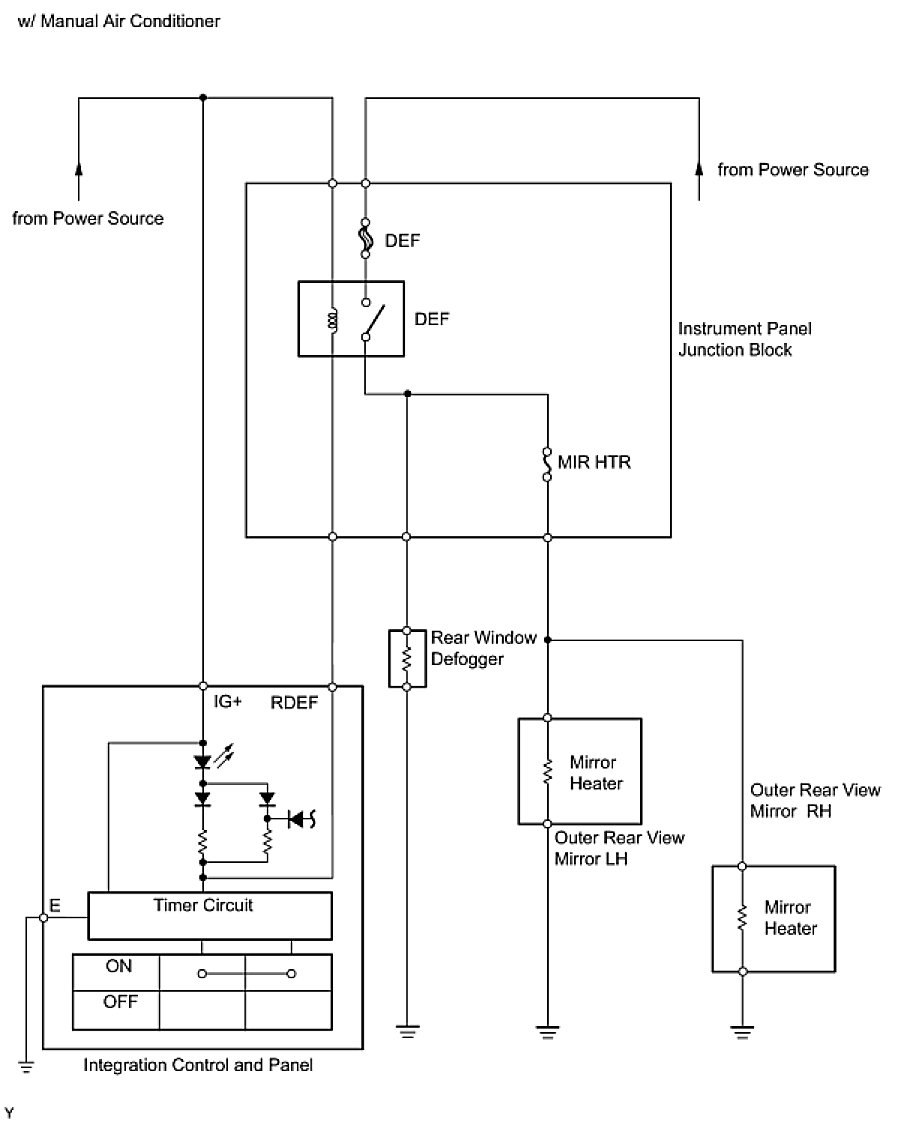

SYSTEM DIAGRAM
