U241E AUTOMATIC TRANSAXLE: SPEED SENSOR: INSTALLATION

INSTALLATION





1. INSTALL SPEED SENSOR NC
(a) Coat a new O-ring with ATF.
(b) Install the O-ring to the sensor.

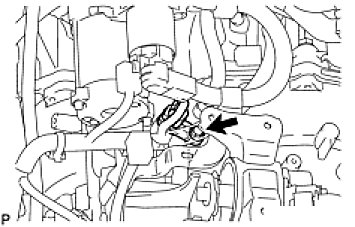

(c) Install the sensor with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
(d) Connect the sensor connector.






2. INSTALL SPEED SENSOR NT
(a) Coat a new O-ring with ATF.
(b) Install the O-ring to the sensor.
(c) Install the sensor with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
(d) Connect the sensor connector.
3. INSTALL BATTERY
(a) Install the battery bracket reinforcement with the 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Install the battery carrier with the 4 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(c) Install the battery tray.
(d) Install the battery with the battery clamp.
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf) for bolt
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf) for nut
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
