Shift Interlock: Description and Operation

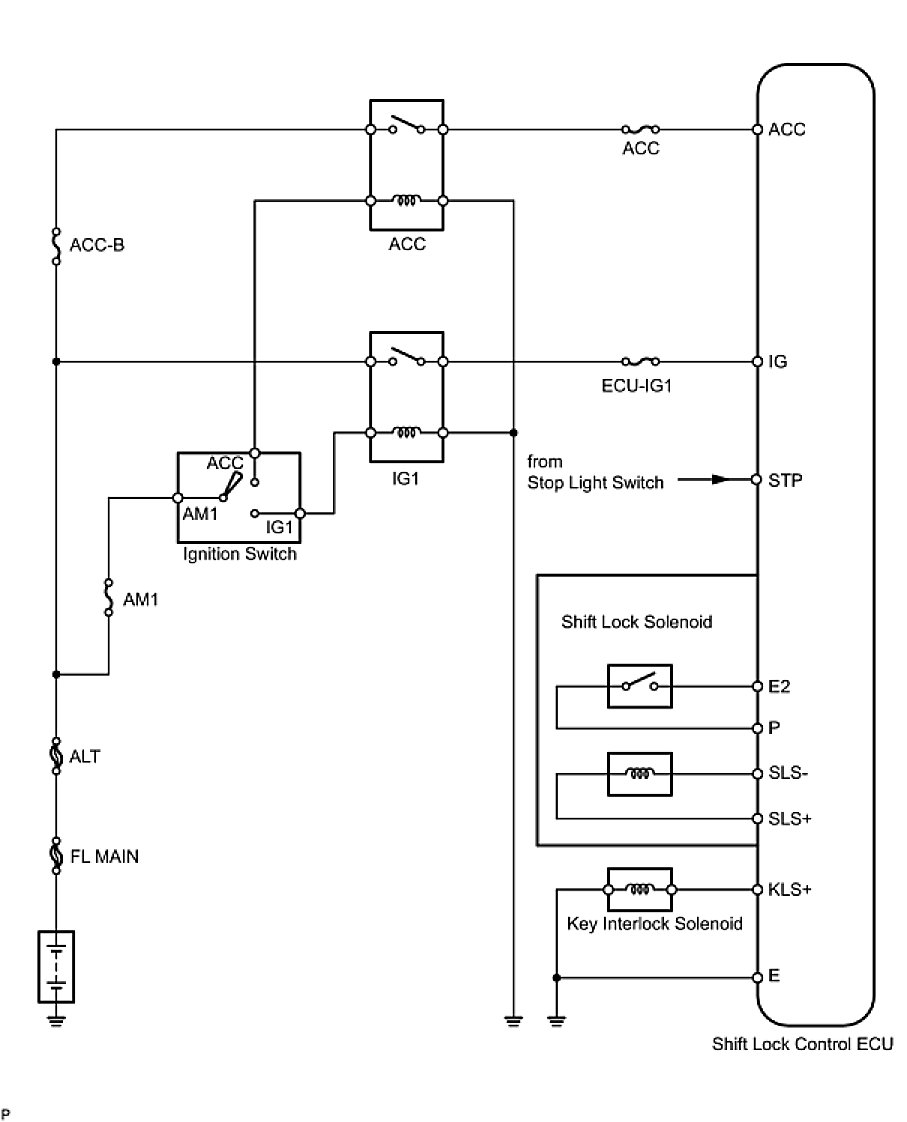

U241E AUTOMATIC TRANSAXLE: SHIFT LOCK SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
