U241E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE UNIT: REASSEMBLY

REASSEMBLY - Continued

59. INSTALL VALVE BODY OIL STRAINER ASSEMBLY

(a) Coat a new O-ring with ATF, and install it to the oil strainer.

(b) Install the oil strainer and 3 bolts to the valve body.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)
60. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

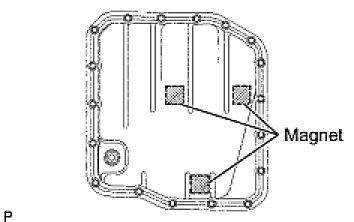

(a) Install the 3 magnets in the oil pan.
(b) Install a new oil pan gasket to the oil pan.

(c) Install the oil pan to the transaxle with the 18 bolts.
Torque: 7.6 Nm (77 kgf-cm, 67 in-lbf)
NOTE: Because the bolts are seal bolts, apply seal packing to new bolts and tighten them within 10 minutes after application.

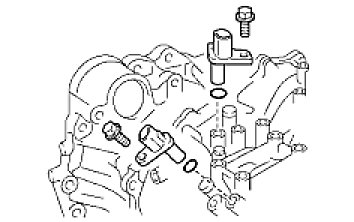

61. INSTALL SPEED SENSOR

(a) Coat 2 new O-rings with ATF, and install them to the 2 sensors.
(b) Install the 2 sensors with the 2 bolts to the transaxle.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)

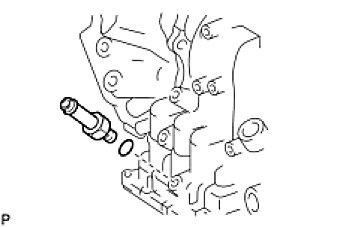

62. INSTALL OIL COOLER INLET TUBE UNION

(a) Coat a new O-ring with ATF, and install it to the union.
(b) Install the union to the transaxle.
Torque: 27 Nm (276 kgf-cm, 20 ft-lbf)
63. INSTALL OIL COOLER OUTLET TUBE UNION

(a) Coat a new O-ring with ATF, and install it to the union.
(b) Install the union to the transaxle case.
Torque: 25 Nm (255 kgf-cm, 18 ft-lbf)

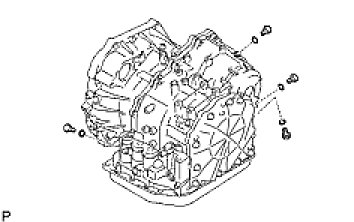

64. INSTALL NO. 1 TRANSAXLE CASE PLUG

(a) Coat 4 new O-rings with ATF, and install them to the 4 plugs.
(b) Install the 4 plugs to the transaxle.
Torque: 7.4 Nm (75 kgf-cm, 65 in-lbf)

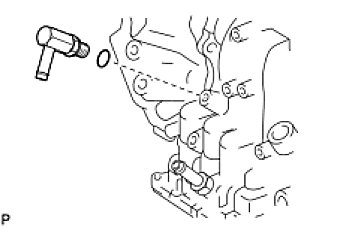

65. INSTALL BREATHER PLUG HOSE
(a) Install the breather plug hose to the breather plug.

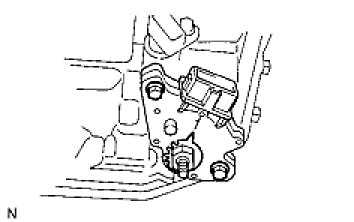

66. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

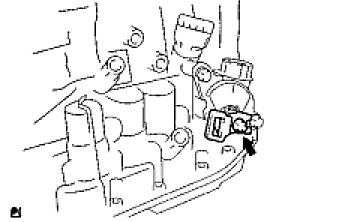

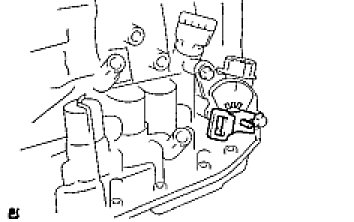

(a) Install the park/neutral position switch onto the manual valve lever shaft and temporarily install the 2 adjusting bolts.
(b) Install a new lock plate and the nut.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

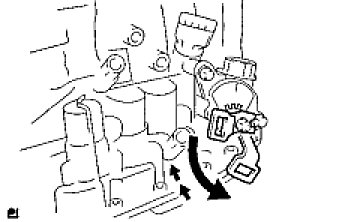

(d) Turn the lever counterclockwise until it stops, and then turn it clockwise 2 notches.
(e) Remove the control shaft lever.

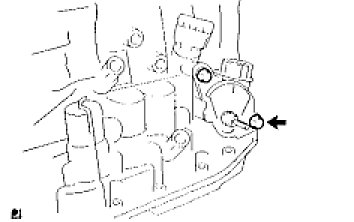

(f) Align the groove with neutral basic line.
(g) Tighten the 2 bolts.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)

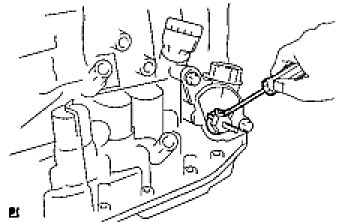

(h) Using a screwdriver, stake the nut with the lock plate.

(i) Install the control shaft lever, washer and nut.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)
67. INSTALL SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
(a) Coat a new O-ring with ATF and install it to the hole cover.
(b) Install the hole cover to the transaxle with the bolt.
