Disassembly

U241E AUTOMATIC TRANSAXLE: SECOND BRAKE PISTON: DISASSEMBLY

DISASSEMBLY

1. REMOVE 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY






(a) Place SST on the return spring and compress.
SST: 09387-00060

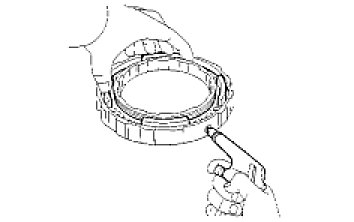

(b) Using a screwdriver, pry out the snap ring.






(c) Remove the piston return spring.
2. INSPECT 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY Second Brake Piston

3. REMOVE 2ND BRAKE PISTON






(a) Hold the 2nd brake piston and apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the 2nd brake cylinder to remove the 2nd brake piston.
4. REMOVE 2ND BRAKE PISTON O-RING






(a) Remove the 2 O-rings from the 2nd brake piston.
