Fuse: Application and ID
Fuse Layout and Amperage Ratings
Fuse Block Locations:

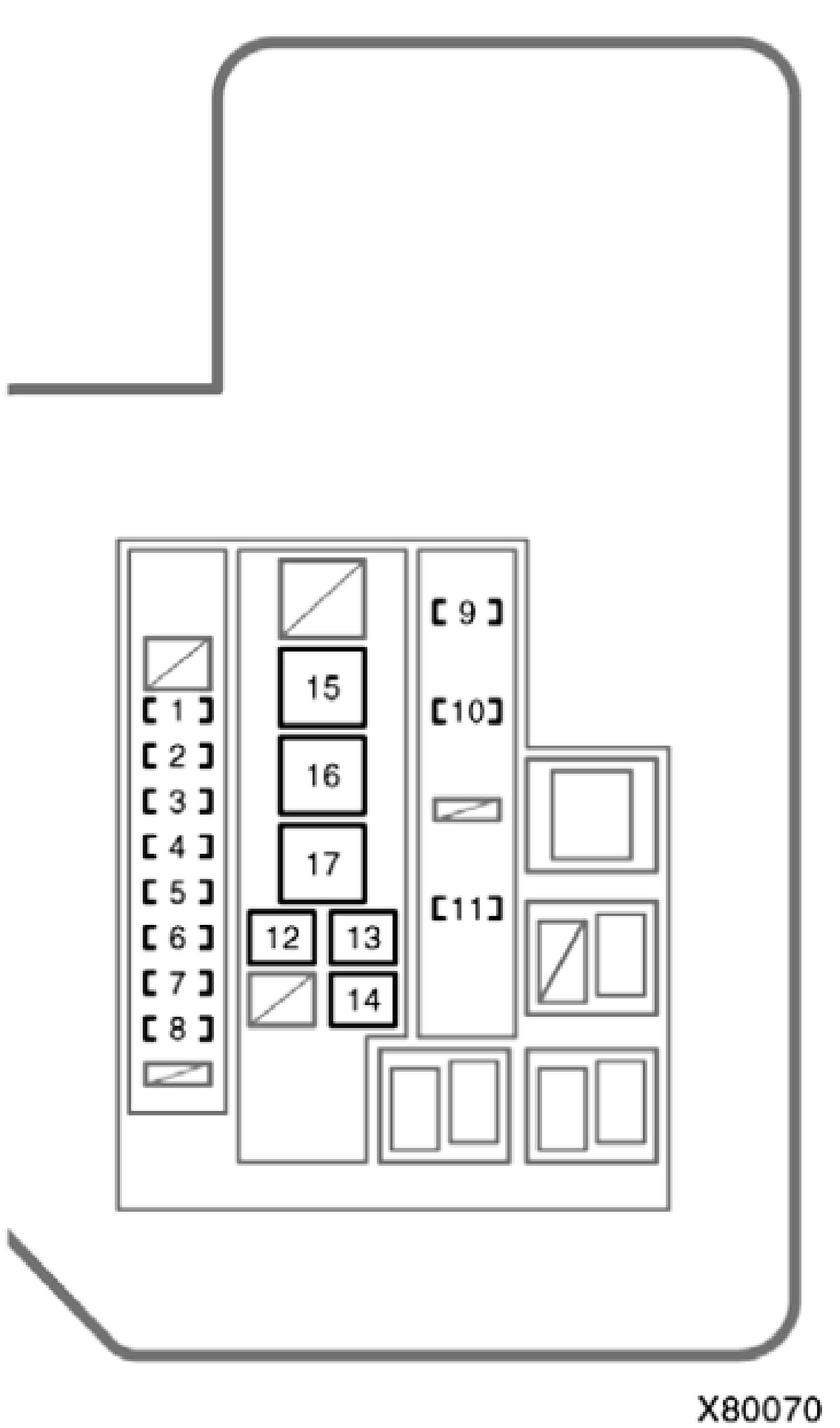

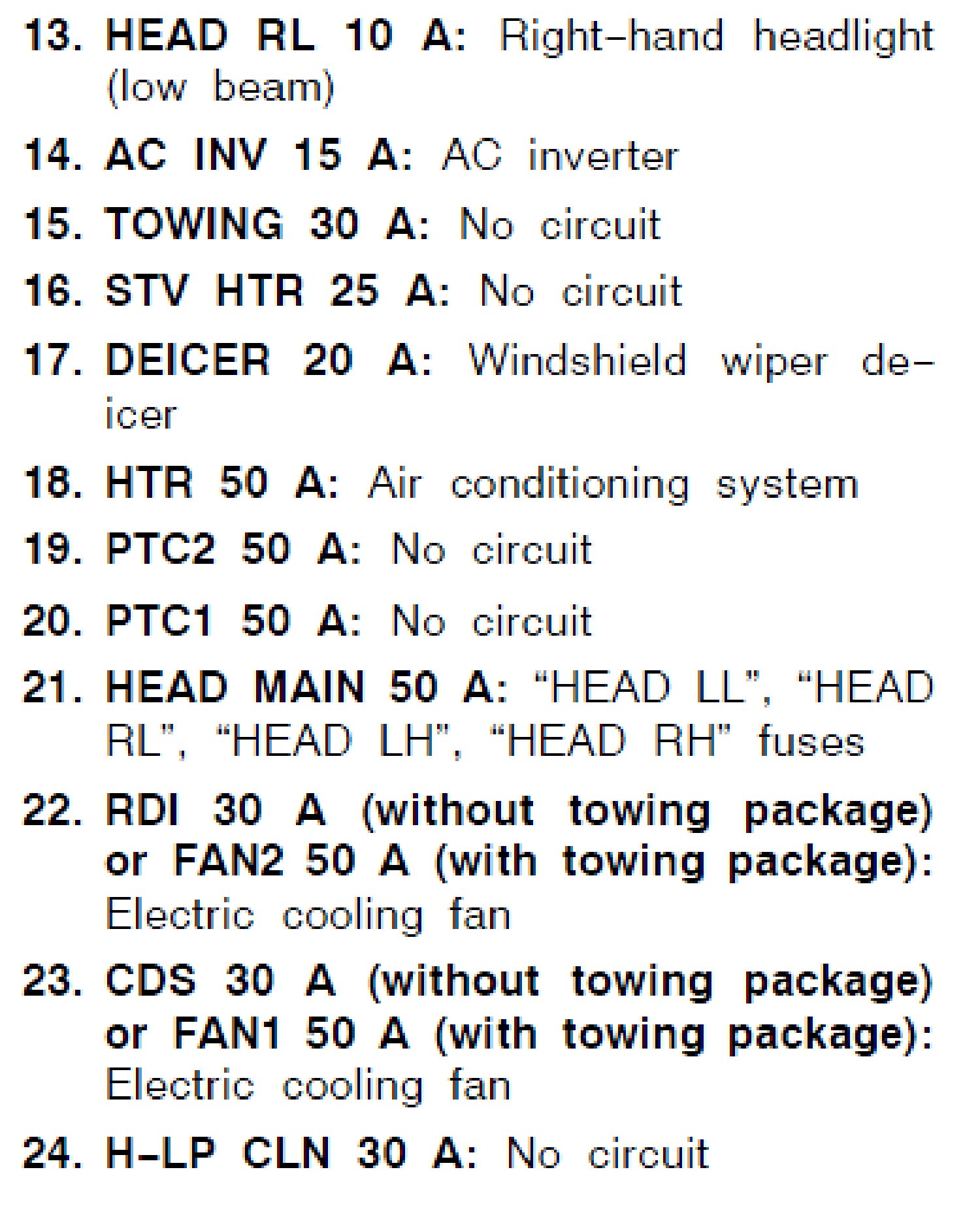

Fuse Location - Engine Compartment (No.1):

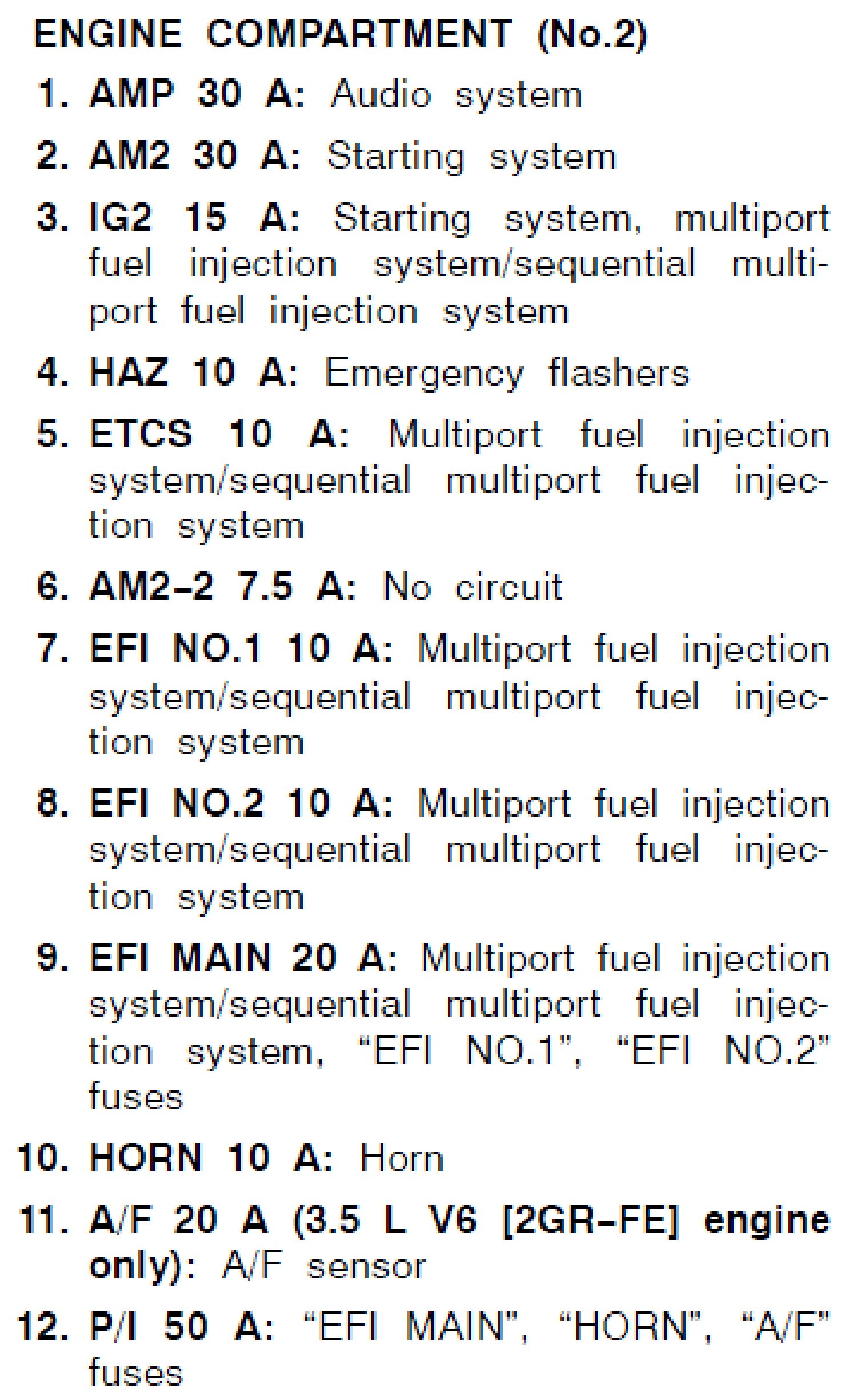

Fuse Location - Engine Compartment (No.2):

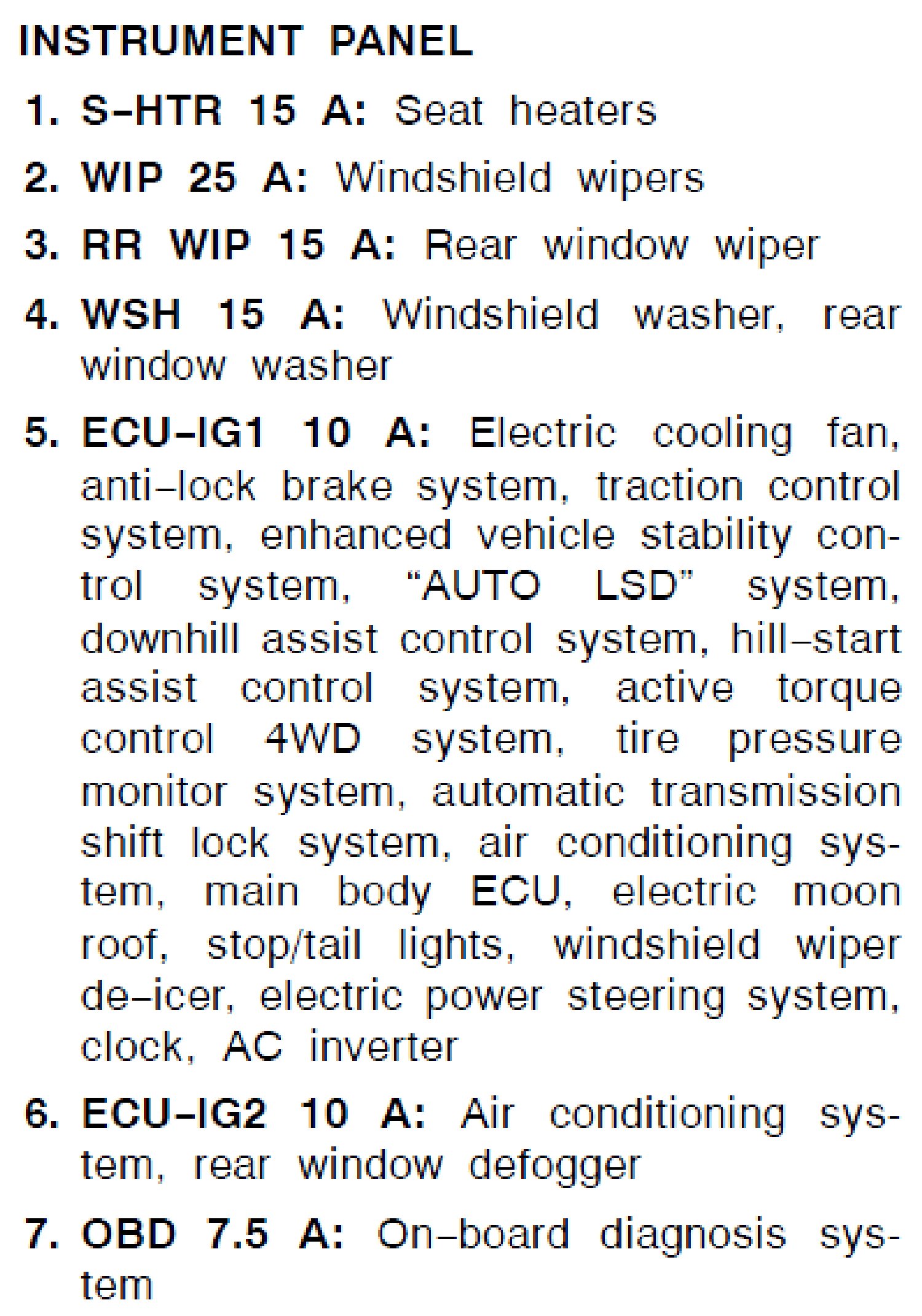

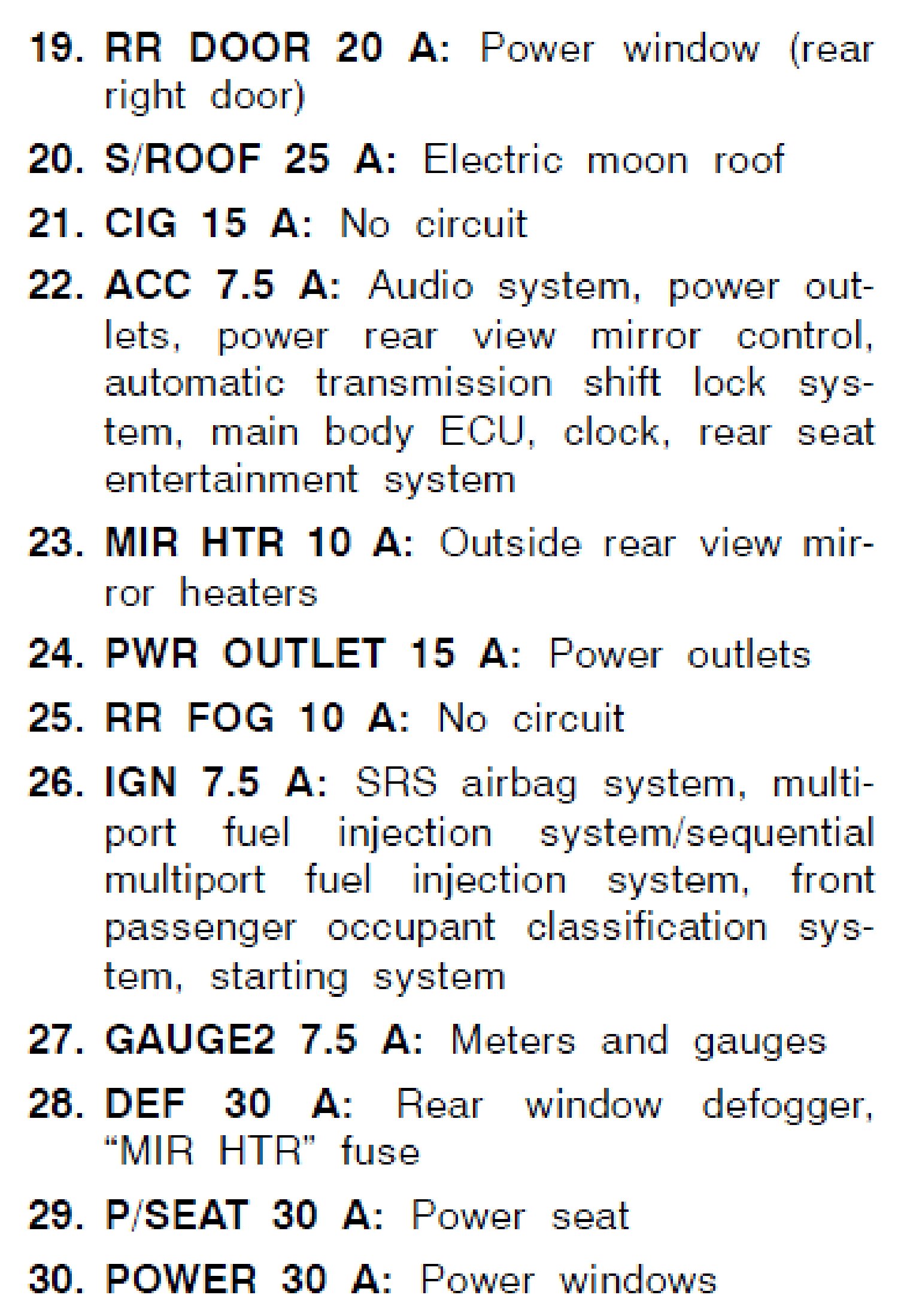

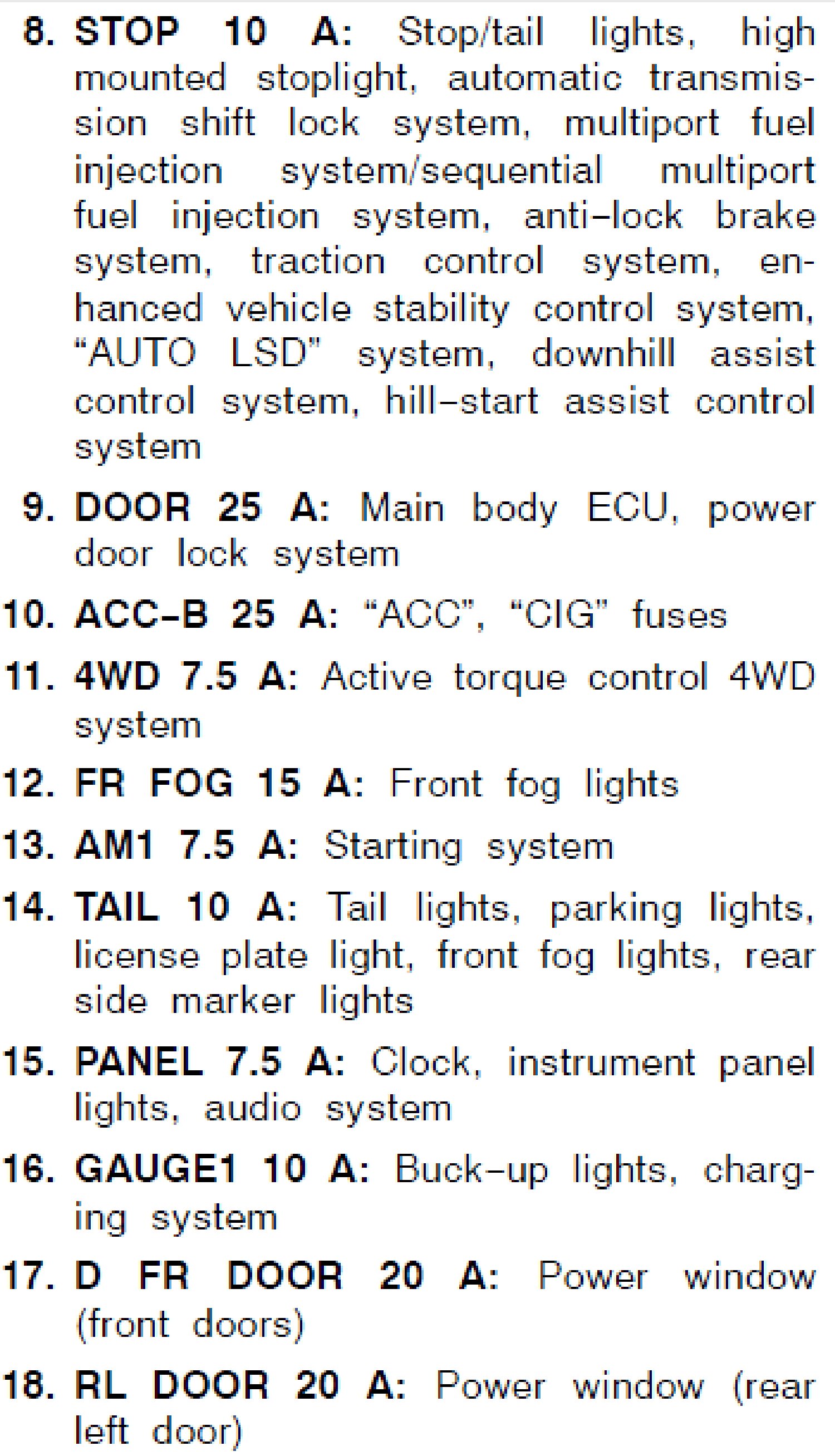

Fuse Location - Instrument Panel:
