SUSPENSION

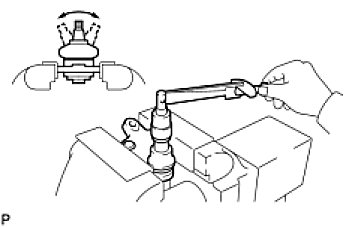

: FRONT LOWER BALL JOINT
Standard turning torque:
0.98 to 3.43 N*m (10 to 35 kgf*cm, 9 to 30 in.*lbf) or less
