Axle Nut

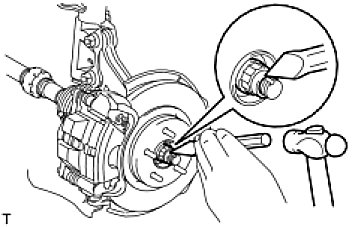

FRONT AXLE SHAFT NUT

Torque: 216 Nm (2,203 kgf-cm, 159 ft-lbf) for dia 26 for 2AZ-FE

Torque: 292 Nm (2,978 kgf-cm, 215 ft-lbf) for dia 30 for 2GR-FE




Using a chisel and hammer, stake the hub nut.

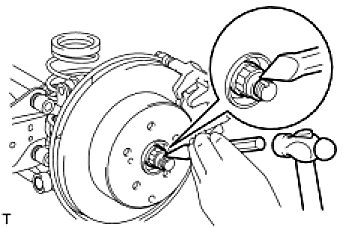

REAR AXLE SHAFT NUT (for 4WD)

Torque: 216 Nm (2,203 kgf-cm, 159 ft-lbf)




Using a chisel and hammer, stake the hub nut.
