Camshaft Bearing Cap

Bearing Caps

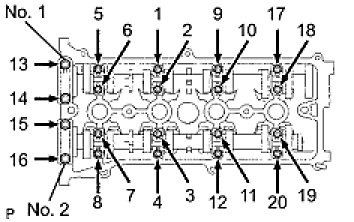

Using several steps, uniformly tighten the 20 bearing cap bolts in the sequence shown in the illustration.

Torque: 29.5 Nm (301 kgf-cm, 22 ft-lbf)
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
