Pinout Values and Diagnostic Parameters

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

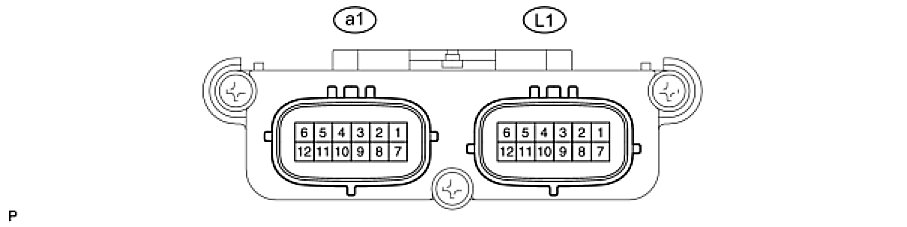

1. CHECK OCCUPANT CLASSIFICATION ECU

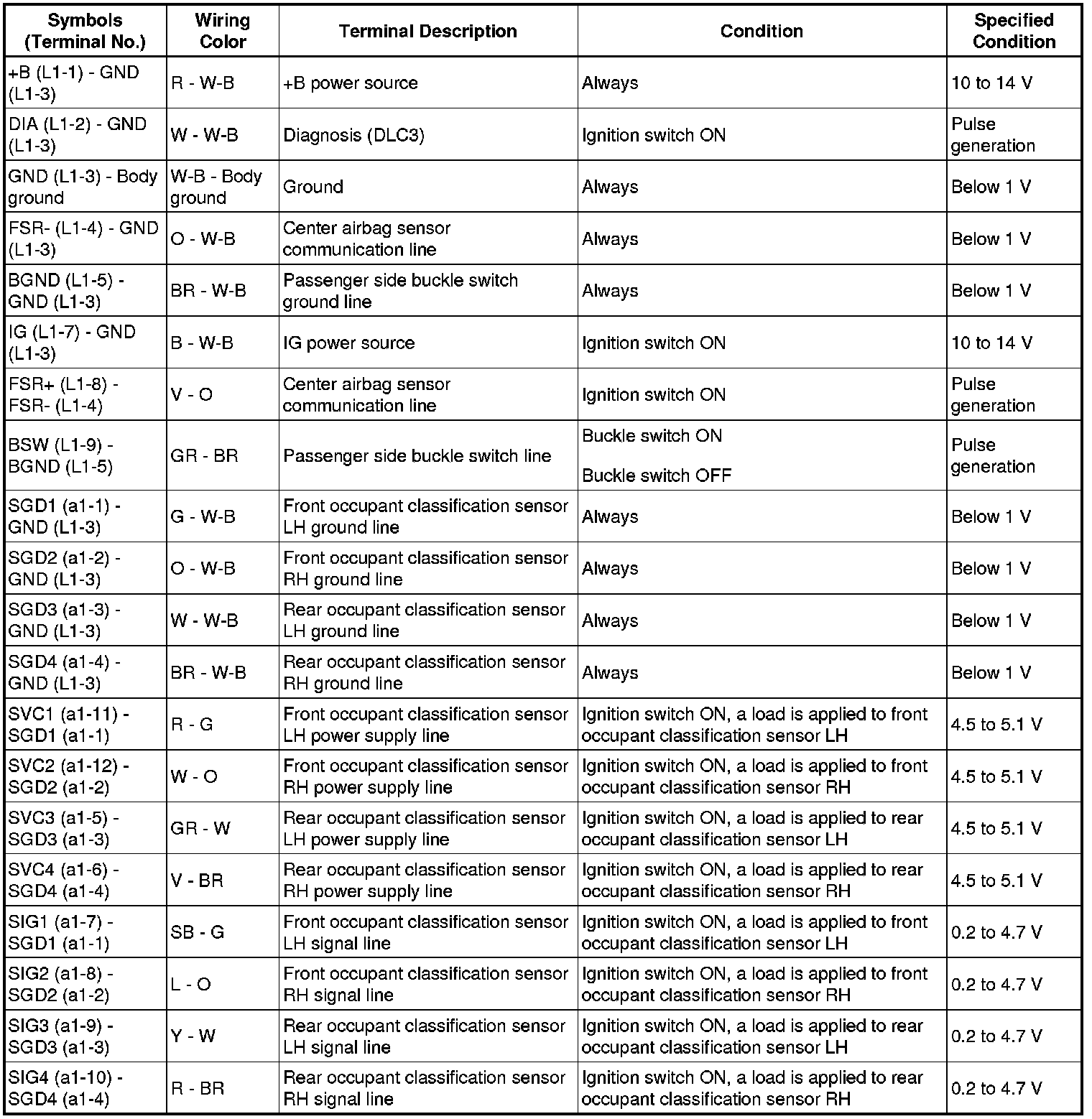

(a) Measure the voltage of the connector.
