Scan Tool Testing and Procedures

SEAT BELT: SEAT BELT WARNING SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. ACTIVE TEST
HINT: Performing Techstream ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch ON.
(c) Perform the ACTIVE TEST according to the display on the tester.

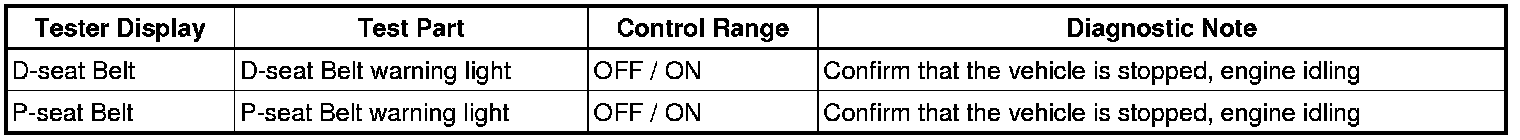

Center airbag sensor:
