Removal

SEAT BELT: CHILD RESTRAINT SEAT TETHER ANCHOR: REMOVAL

REMOVAL





1. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER
(a) Using a screwdriver, detach the 4 claws and remove the cover.
HINT: Tape the screwdriver tip before use.

2. REMOVE ROOF HEADLINING ASSEMBLY
HINT: It is not necessary to completely remove the roof headlining. Slightly lower the rear section of the roof headlining.

(a) Partially remove the roof headlining Removal.

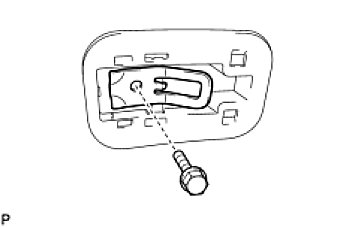

3. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
(a) Remove the bolt and bracket.
4. REMOVE CHILD RESTRAINT SEAT PROTECTOR
