Fog/Driving Lamp Relay: Testing and Inspection

LIGHTING: FOG LIGHT RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

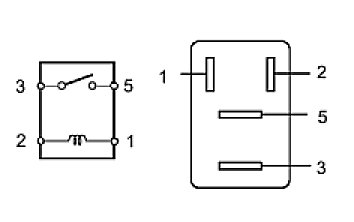

1. INSPECT FRONT FOG LIGHT RELAY
(a) Remove the front fog relay from the No. 6 relay block.






(b) Measure the resistance of the relay.

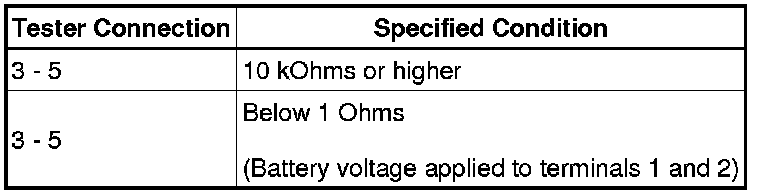

Standard resistance:





If the result is not as specified, replace the relay.
