Reassembly

2AZ-FE FUEL: FUEL TANK: REASSEMBLY

REASSEMBLY

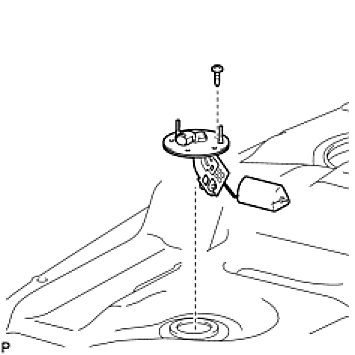

1. INSTALL FUEL SENDER GAUGE ASSEMBLY






(a) Install the sender gauge with the 5 screws.
Torque: 1.5 Nm (15 kgf-cm, 13 in-lbf)
2. INSTALL NO. 1 FUEL TANK CUSHION

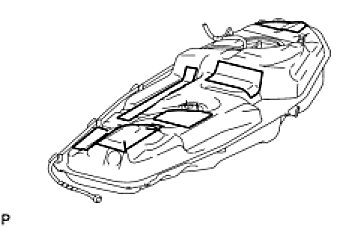

(a) Install 7 new fuel tank cushions onto the fuel tank as shown in the illustration.

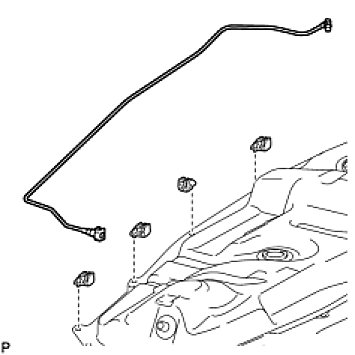

3. INSTALL NO. 1 FUEL TUBE CLAMP






(a) Install the 4 tube clamps to the fuel tank.
4. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
(a) Install the tube with the 4 clips.
5. INSTALL FUEL SUCTION WITH PUMP ASSEMBLY Installation

6. INSTALL FUEL TANK VENT TUBE SET PLATE Installation

7. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY Installation
