Toyota Truck
>>
2008
>>
RAV4 2WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Service and Repair
>>
Components
Components
2AZ-FE FUEL:
FUEL INJECTOR
: COMPONENTS

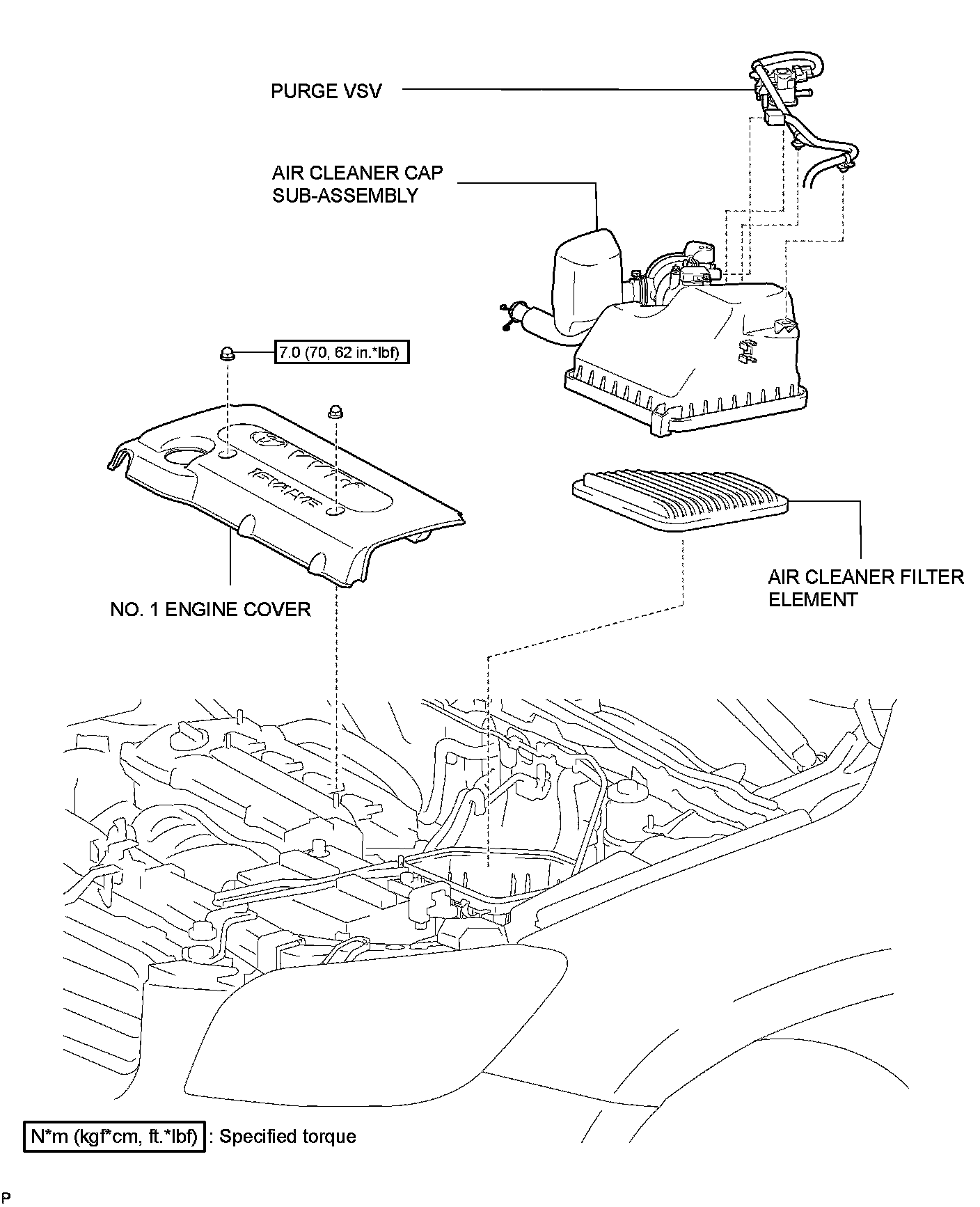

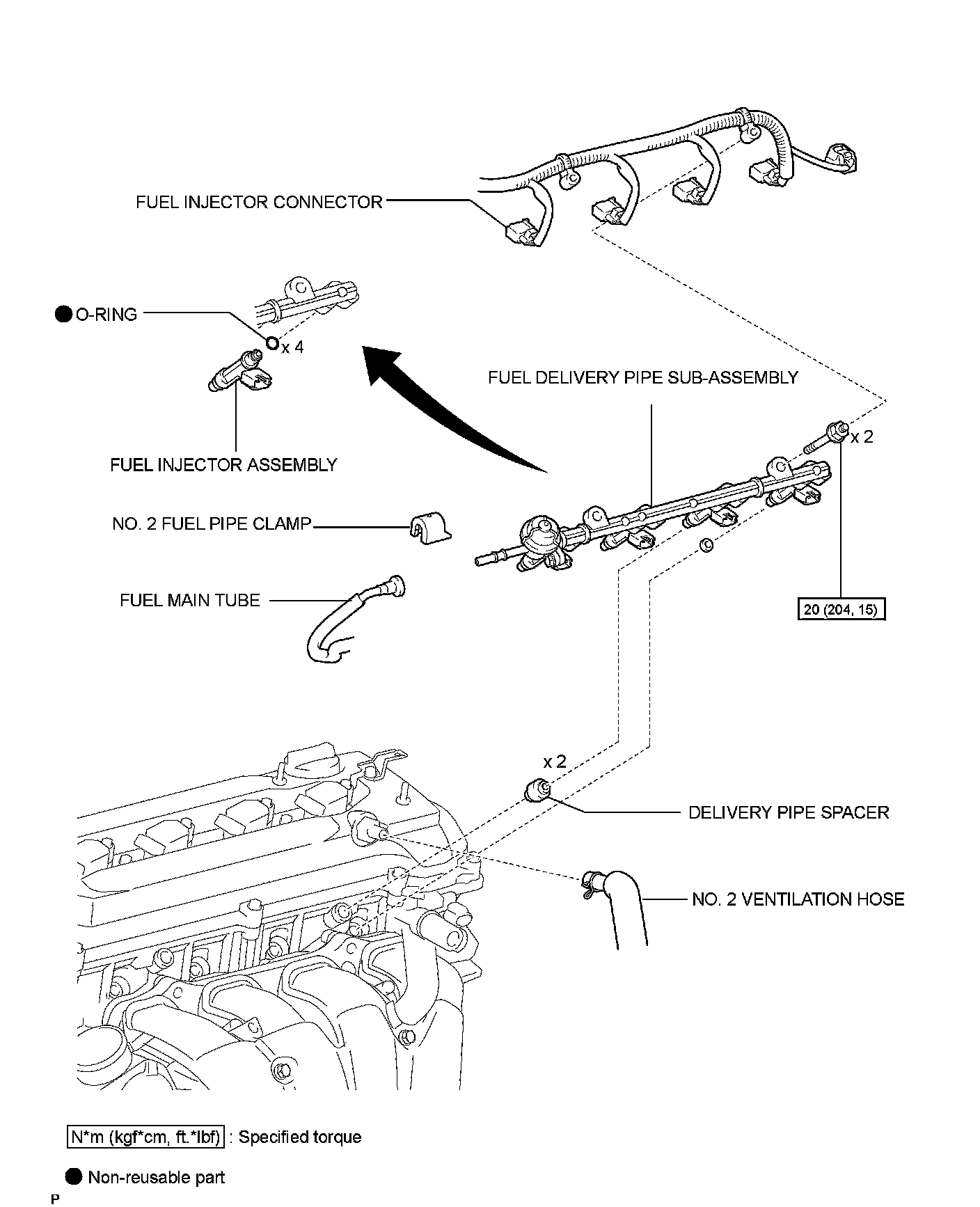

COMPONENTS
ILLUSTRATION
