Installation

2AZ-FE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL ROD: INSTALLATION

INSTALLATION

1. INSTALL ACCELERATOR PEDAL ROD

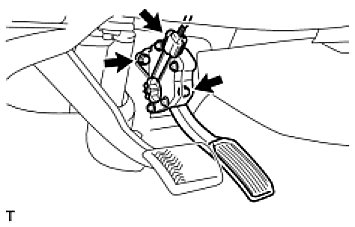

(a) Install the accelerator pedal rod with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(b) Connect the accelerator pedal position sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
