Reassembly

LIGHTING: HEADLIGHT ASSEMBLY: REASSEMBLY

REASSEMBLY
HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.

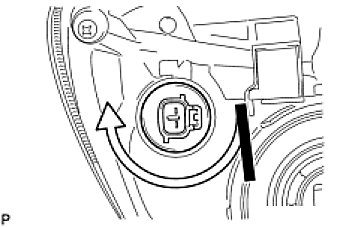

1. INSTALL FRONT TURN SIGNAL LIGHT BULB
(a) Install the bulb to the socket.
(b) Insert the bulb/socket unit into the headlight.
(c) Turn the bulb/socket unit in the direction indicated by the arrow to install it.

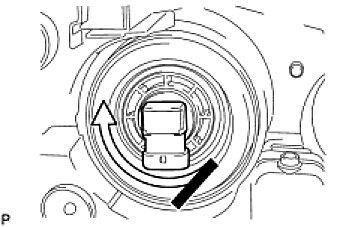

2. INSTALL NO. 2 HEADLIGHT BULB
(a) Insert the bulb into the headlight.
(b) Turn the bulb in the direction indicated by the arrow to install it.

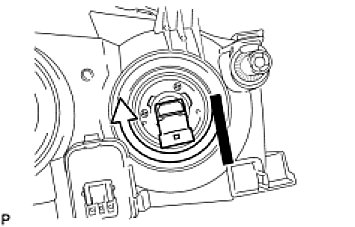

3. INSTALL NO. 1 HEADLIGHT BULB
(a) Insert the bulb into the headlight.
(b) Turn the bulb in the direction indicated by the arrow to install it.
