LIGHTING: FOG LIGHT ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.





1. INSTALL FOG LIGHT ASSEMBLY

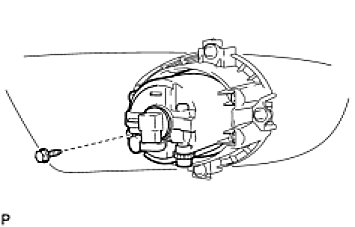

(a) Install the fog light with the bolt.
(b) Connect the connector.
2. INSTALL FRONT BUMPER COVER Installation

3. INSTALL RADIATOR SUPPORT OPENING COVER Installation

4. INSTALL FRONT FENDER LINER RH Installation

5. INSTALL FRONT FENDER LINER LH Installation

6. INSTALL CABLE TO NEGATIVE BATTERY TERMINAL
