Disassembly

LIGHTING: FOG LIGHT ASSEMBLY: DISASSEMBLY

DISASSEMBLY
HINT:
- Use the same procedures for the RH side and LH sides.
- The procedures listed below are for the LH side.





1. REMOVE FOG LIGHT BULB

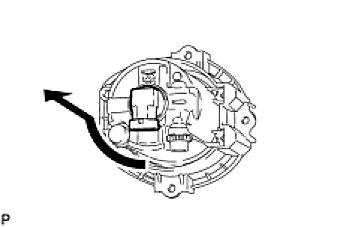

(a) Turn the bulb in the direction indicated by the arrow and pull to remove it.
