Air Conditioning System (for Automatic Air Conditioning System)








AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System): PARTS LOCATION

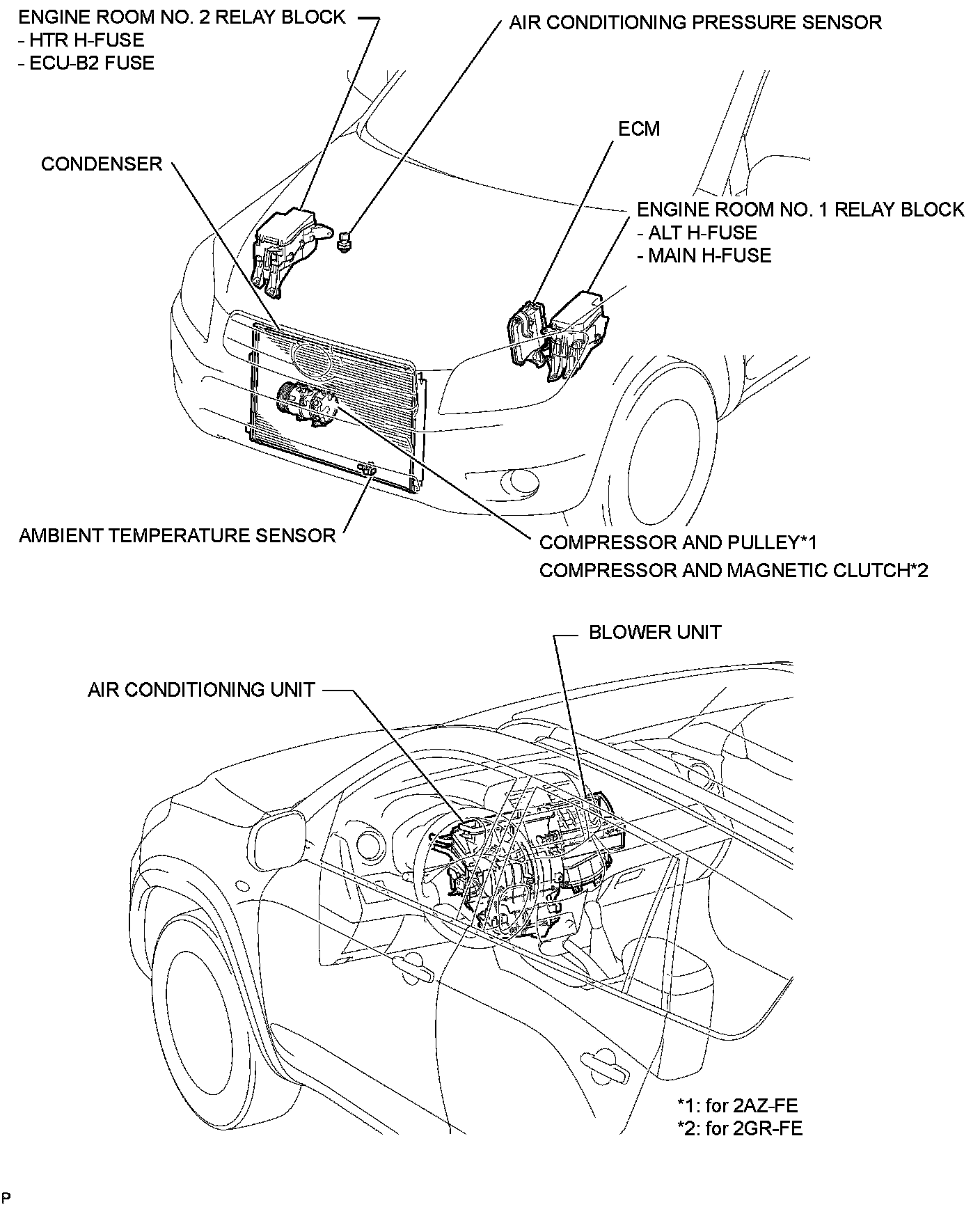

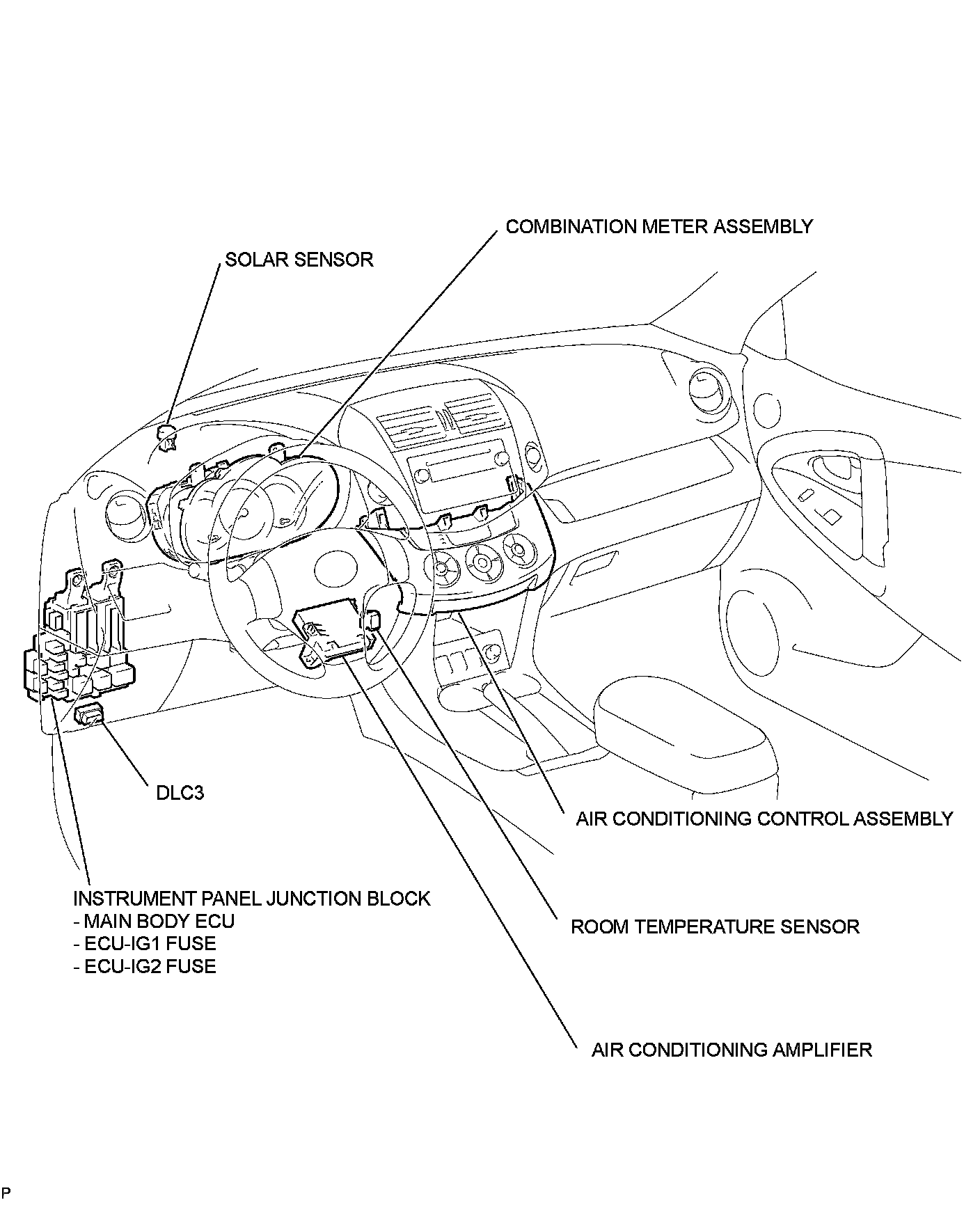

PARTS LOCATION

ILLUSTRATION
