System Diagram








AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): SYSTEM DIAGRAM

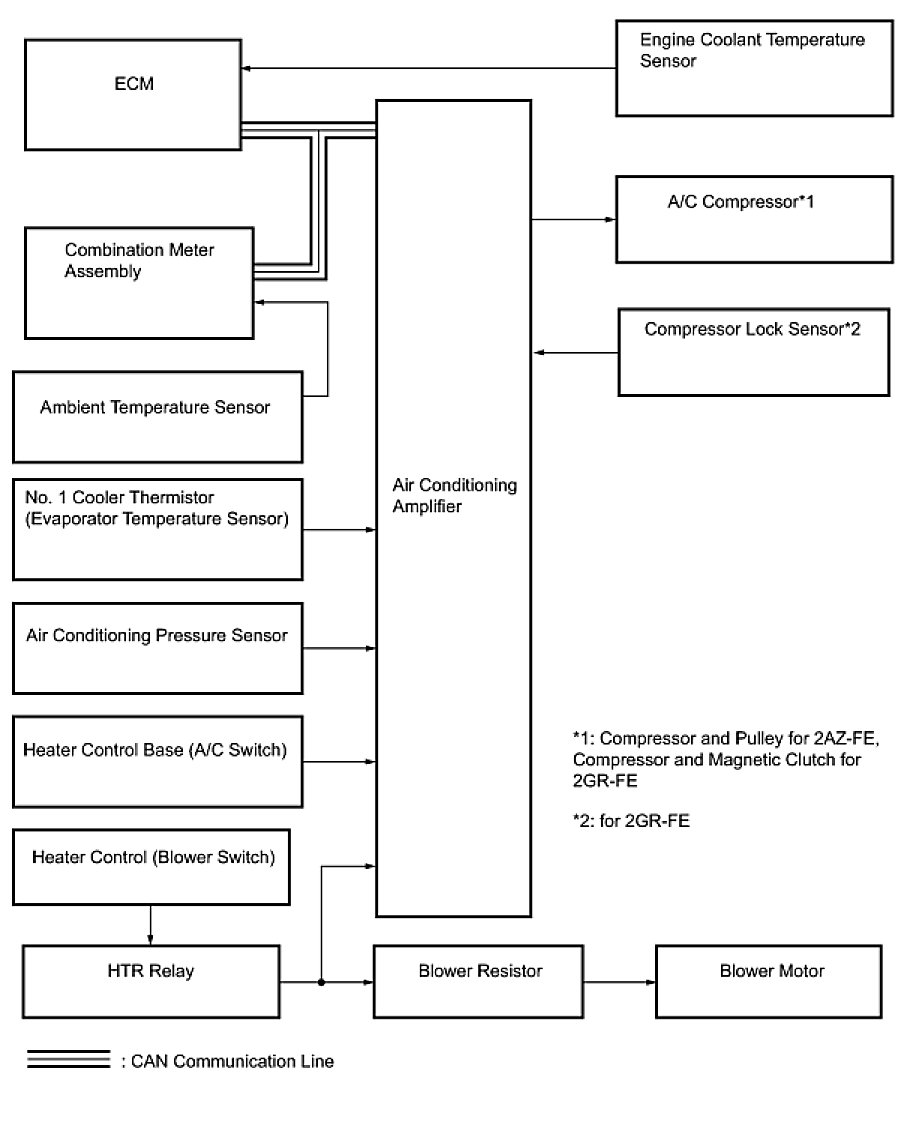

SYSTEM DIAGRAM

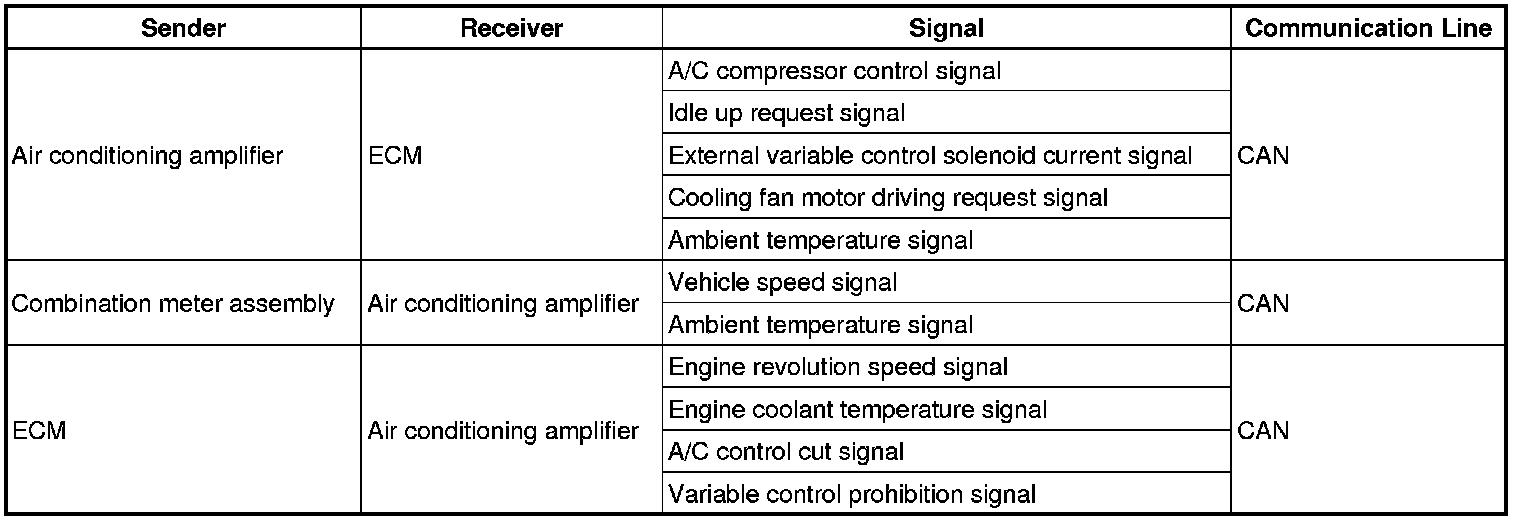

Communication table
