System Diagram








AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System): SYSTEM DIAGRAM

SYSTEM DIAGRAM

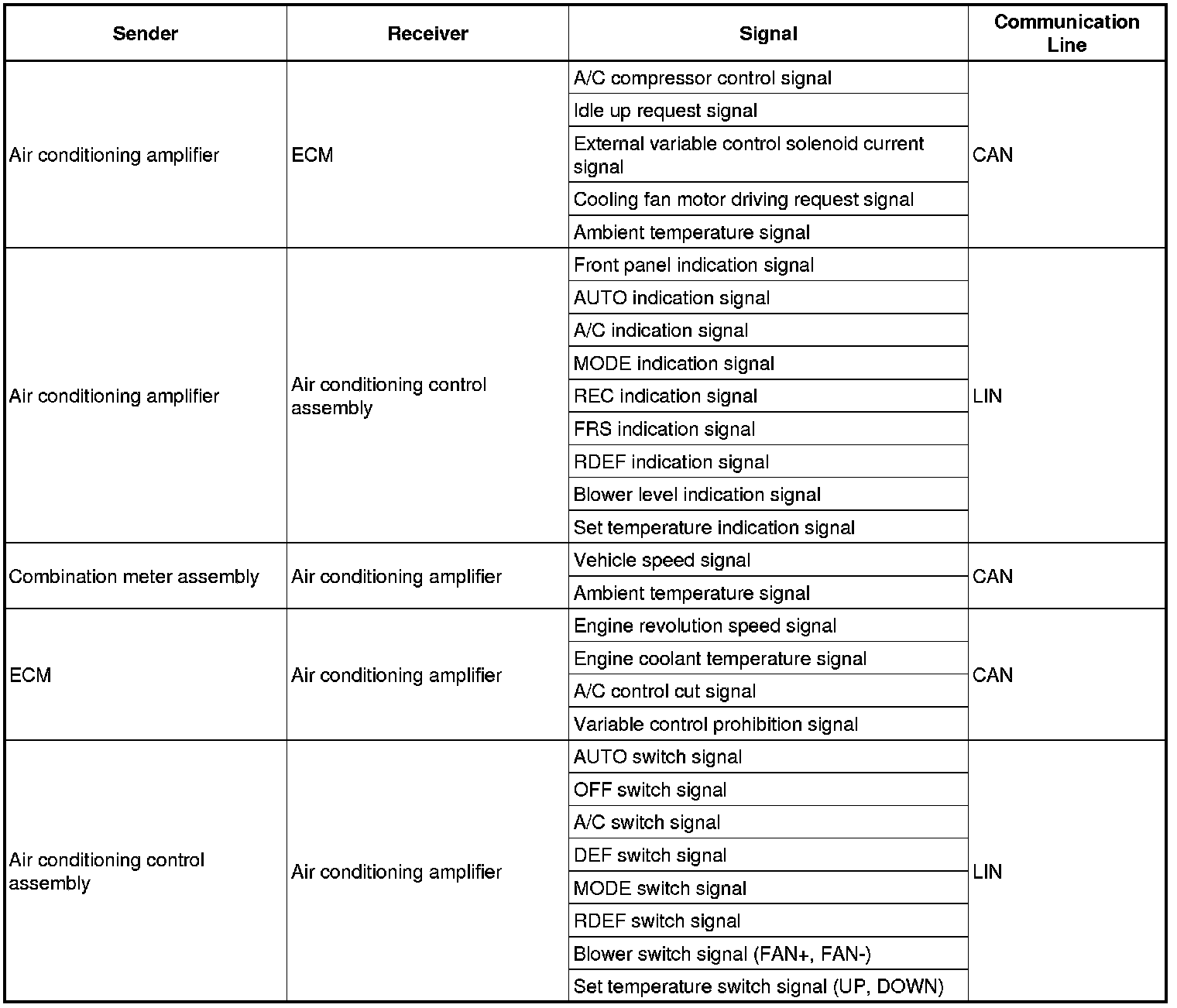

Communication table
