Removal

AIR CONDITIONING: AIR CONDITIONING PANEL (for Manual Air Conditioning System): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER Removal

3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER Removal

4. REMOVE RADIO RECEIVER ASSEMBLY Removal

5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY






(a) Remove the 2 screws.
(b) Using a screwdriver, detach the 3 clips.
HINT: Tape the screwdriver tip before use.

(c) Disconnect the connectors and remove the air conditioning control.
6. REMOVE AIR MIX CONTROL SWITCH

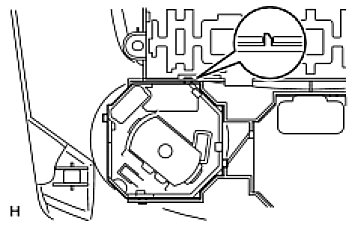

(a) Detach the 2 claws and remove the air mix control switch.
7. REMOVE BLOWER CONTROL SWITCH

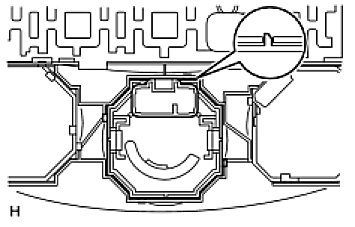

(a) Detach the 2 claws and remove the blower control switch.
8. REMOVE AIR VENT MODE CONTROL SWITCH






(a) Detach the 2 claws and remove the mode control switch.
