AIR CONDITIONING: AIR CONDITIONING PANEL (for Automatic Air Conditioning System): INSTALLATION

INSTALLATION

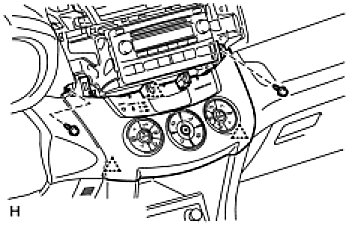

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
(a) Connect the connectors.
(b) Attach the 3 clips to install the air conditioning control.
(c) Install the 2 screws.
2. INSTALL RADIO RECEIVER Installation

3. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER Installation

4. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
