Blower Motor Resistor: Testing and Inspection

AIR CONDITIONING: BLOWER RESISTOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT BLOWER MOTOR CONTROL

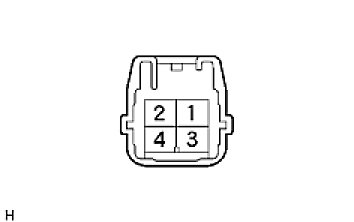

(a) Measure the resistance of the blower resistor.

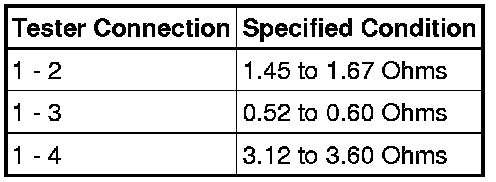

Standard resistance:





If the resistance is not as specified, replace the blower motor control.
