Home
>>
Toyota Truck
>>
2008
>>
RAV4 2WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Blade Heater Switch
Wiper Blade Heater Switch

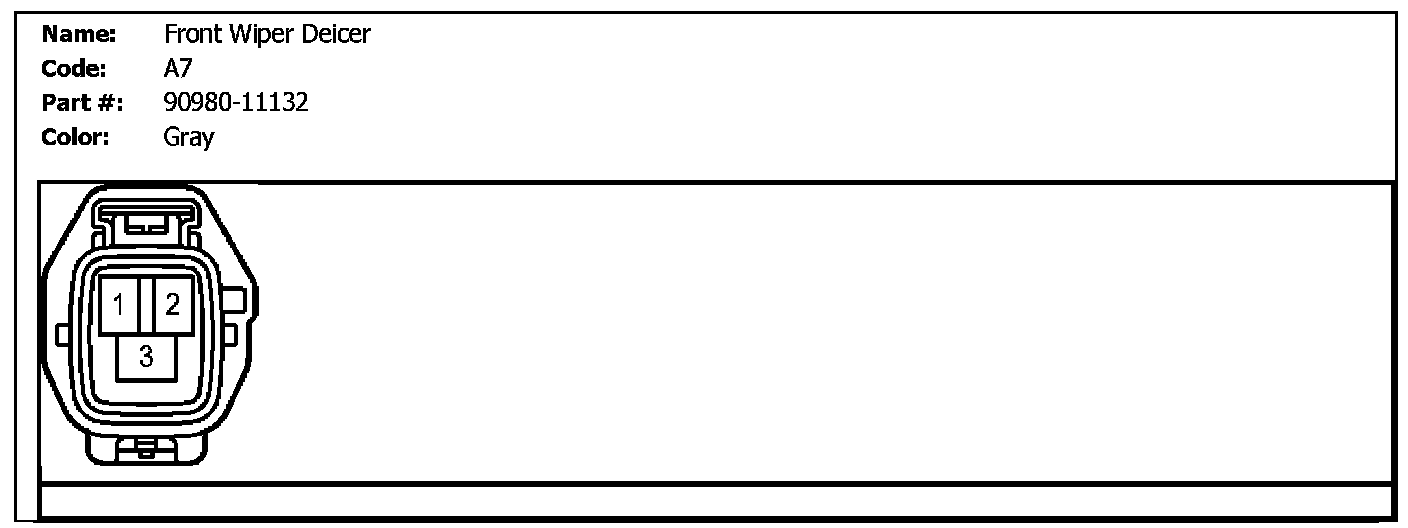

A7 (Front Wiper Deicer):

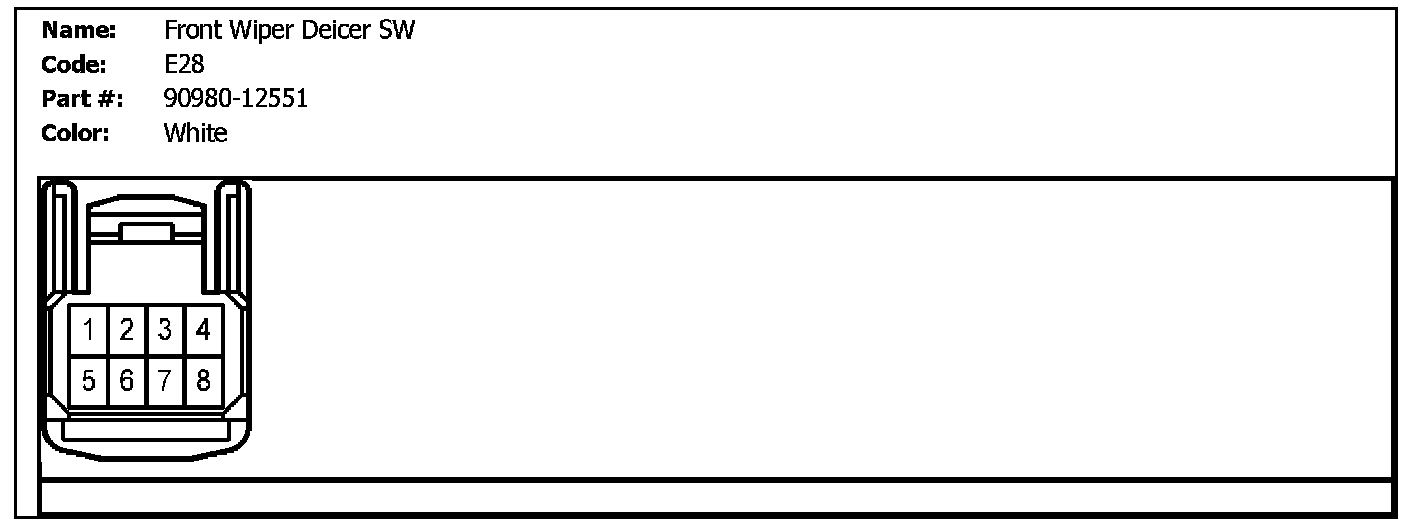

E28 (Front Wiper Deicer SW):
