Home
>>
Toyota Truck
>>
2008
>>
RAV4 2WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Solenoid, A/T
Shift Solenoid, A/T

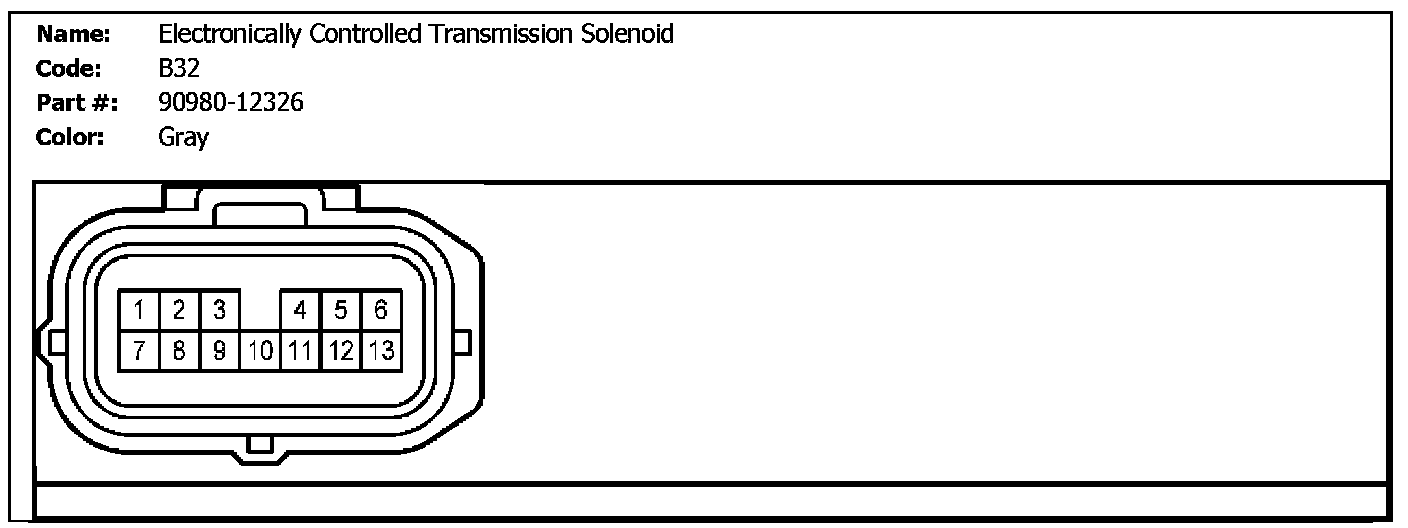

B32 (Electronically Controlled Transmission Solenoid):

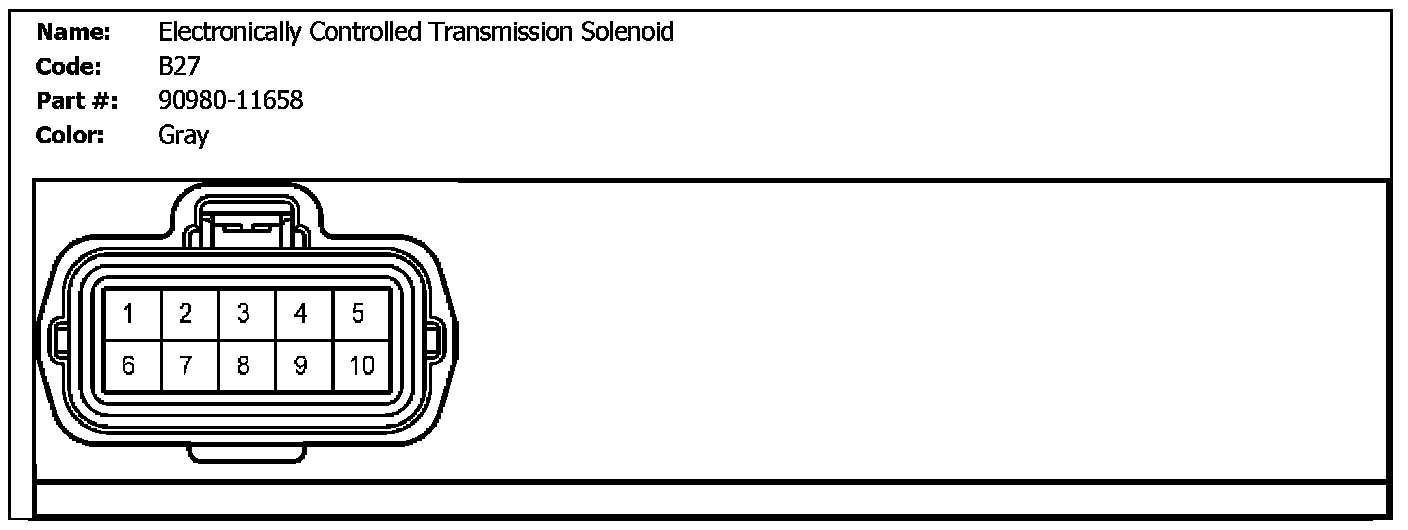

B27 (Electronically Controlled Transmission Solenoid):
