Power Seat Switch
Power Seat Switch

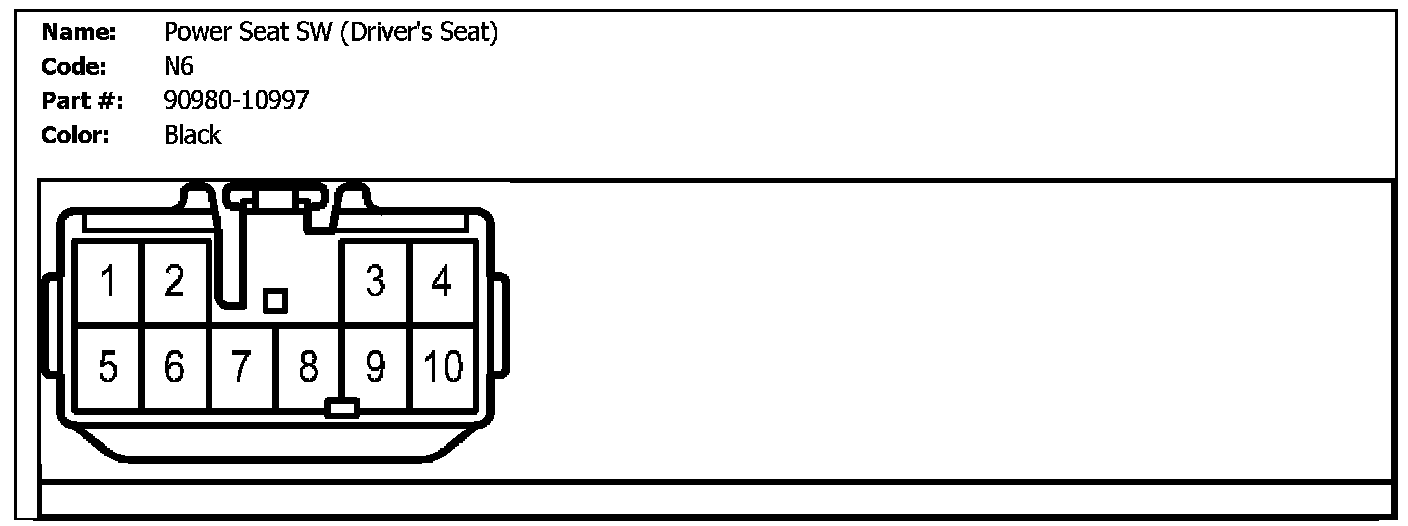

N6 (Power Seat SW (Driver's Seat)):

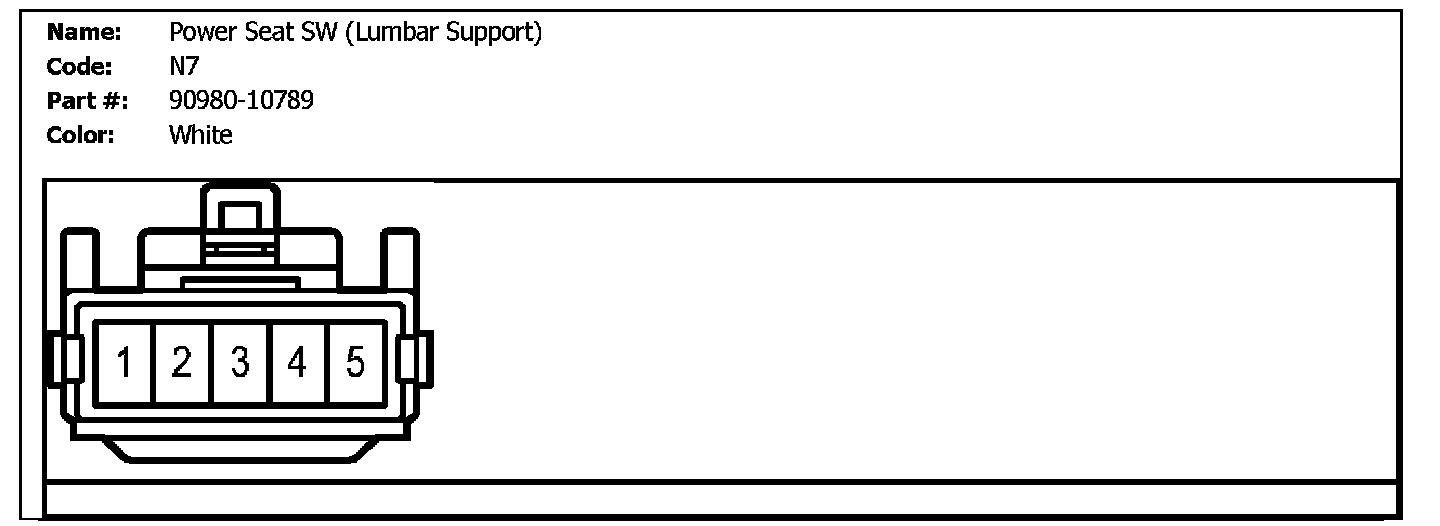

N7 (Power Seat SW (Lumbar Support)):
