Position of Parts In Instrument Panel

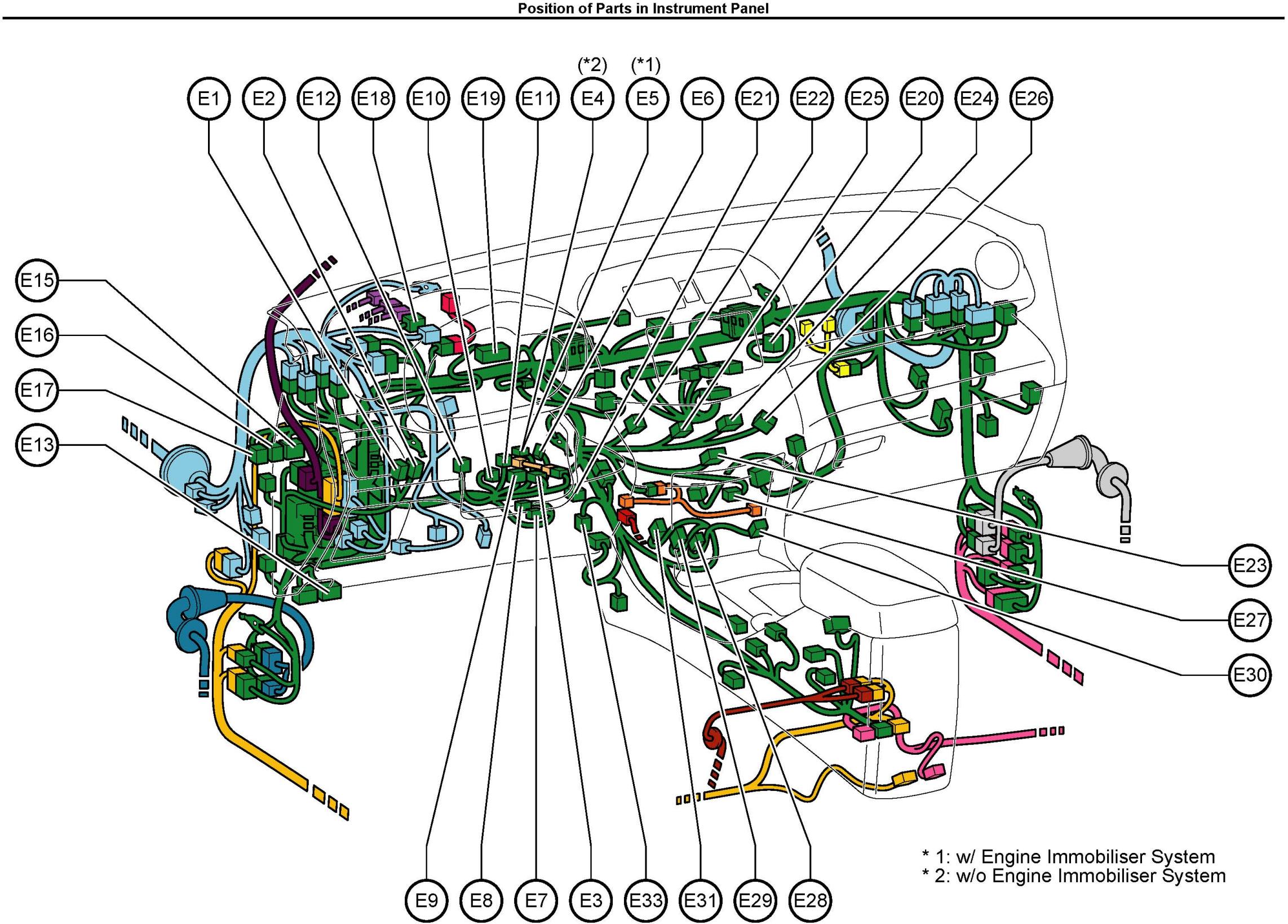

Position of Parts In Instrument Panel:

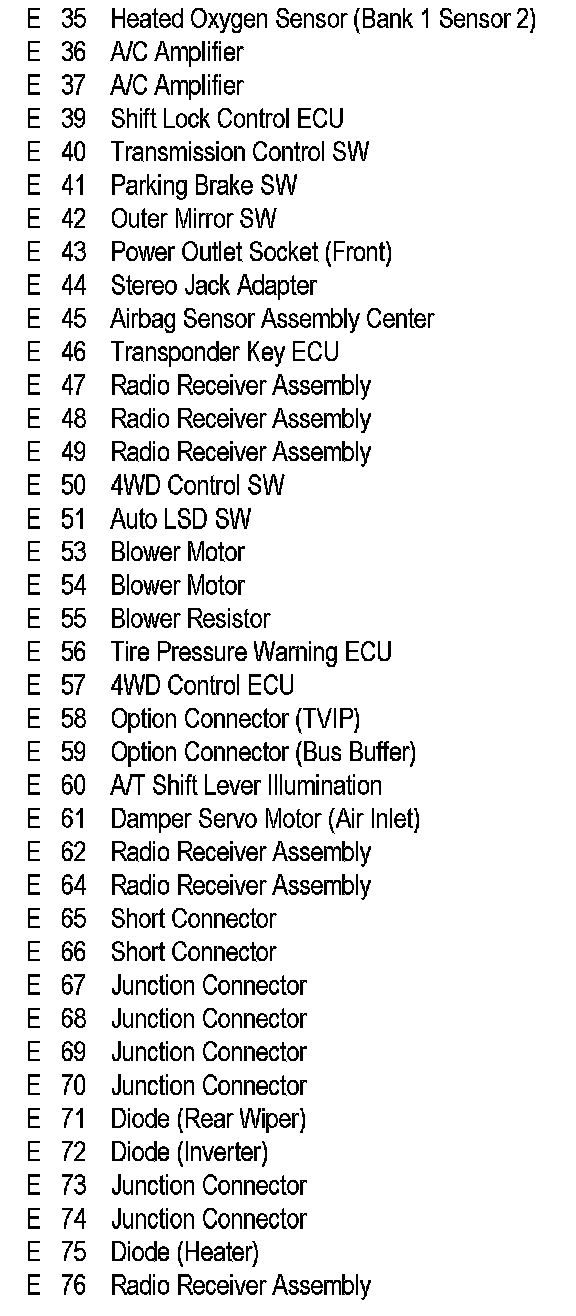

Legend:

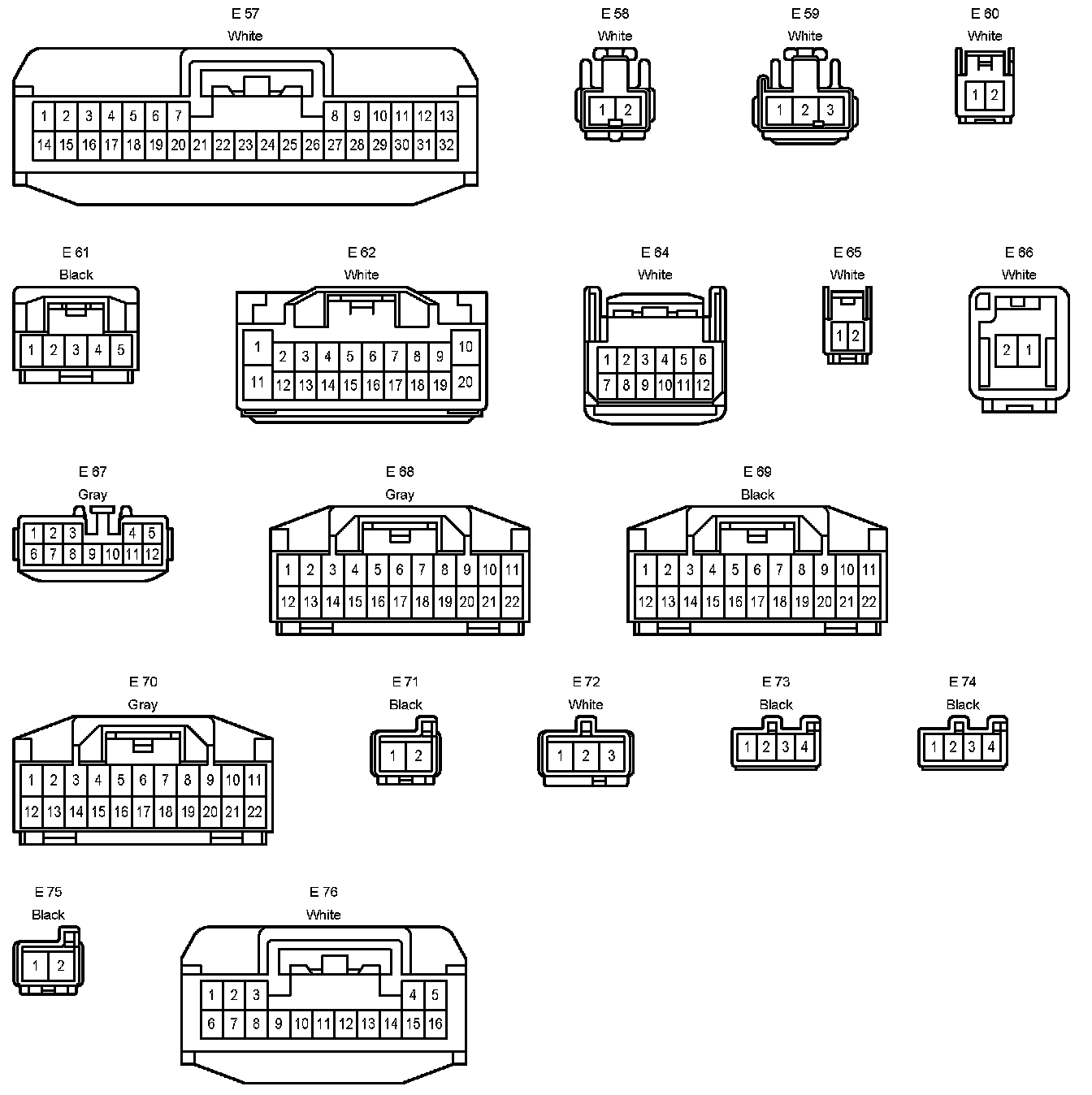

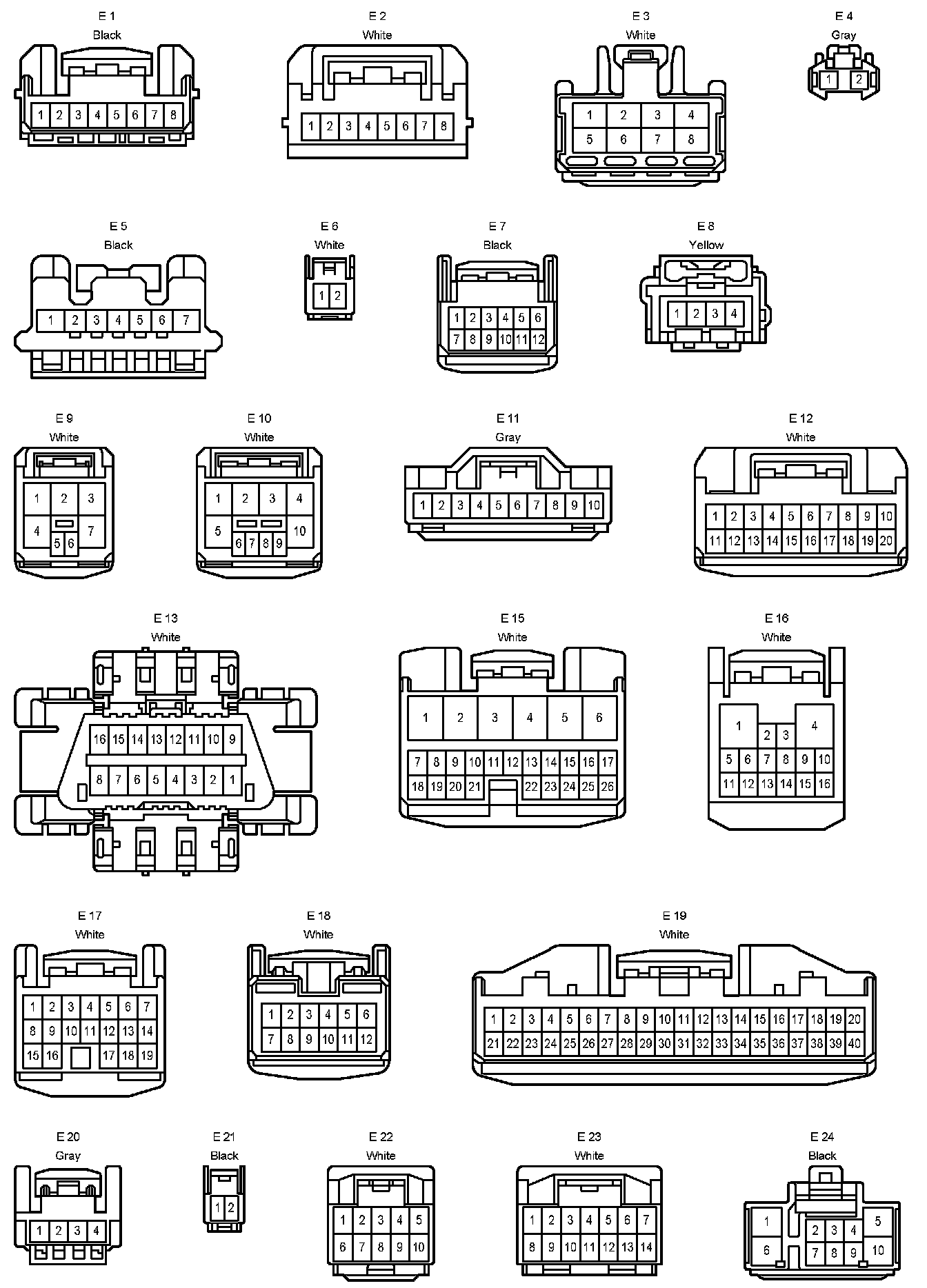

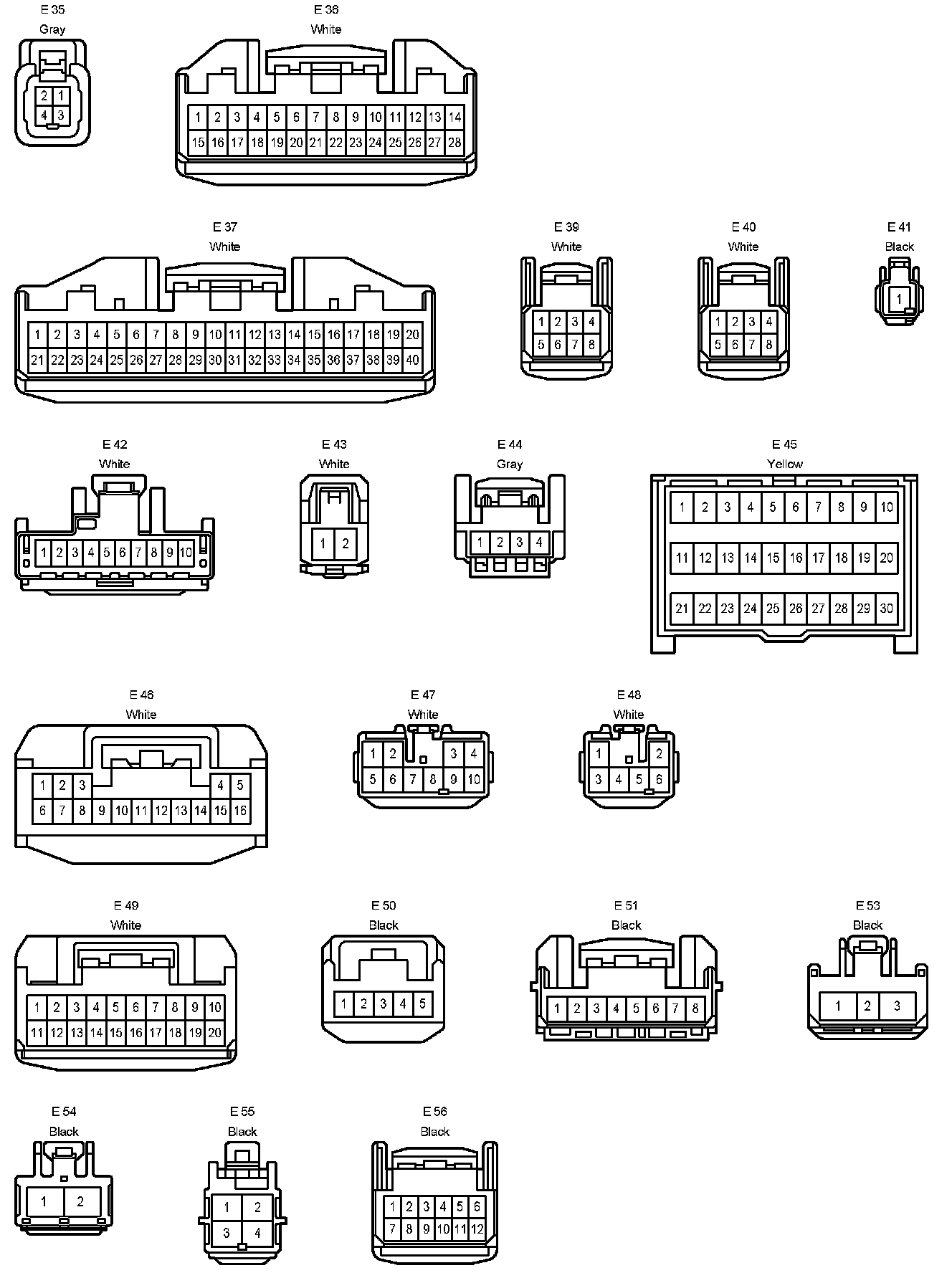

Connector Views:



Connector Views:

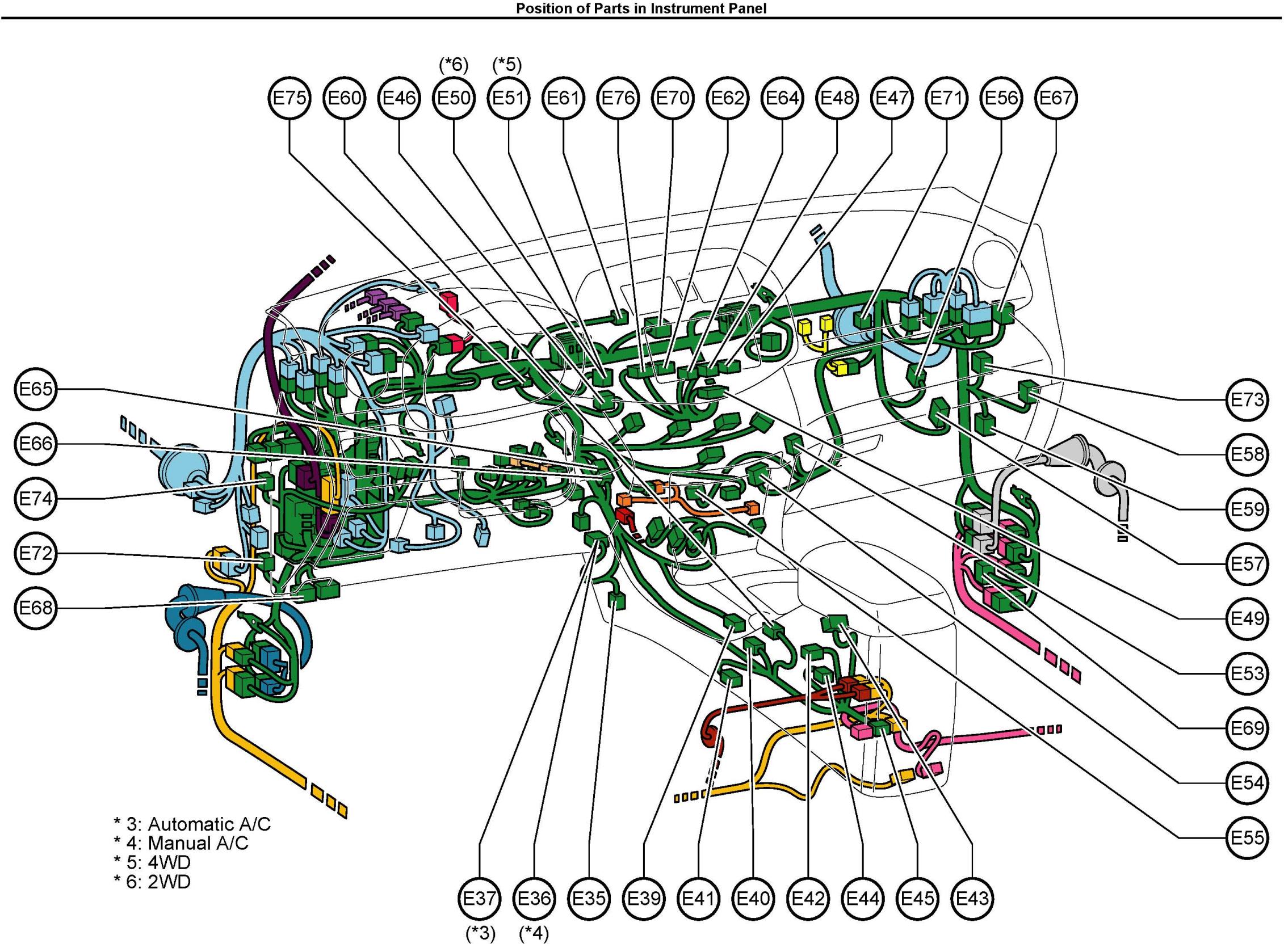

Position of Parts In Instrument Panel:

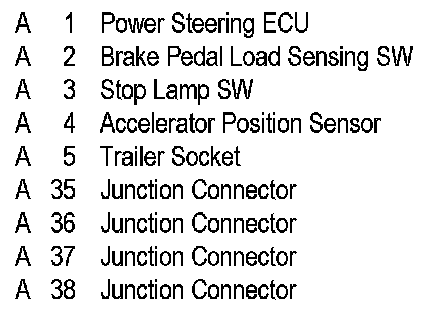

Legend:

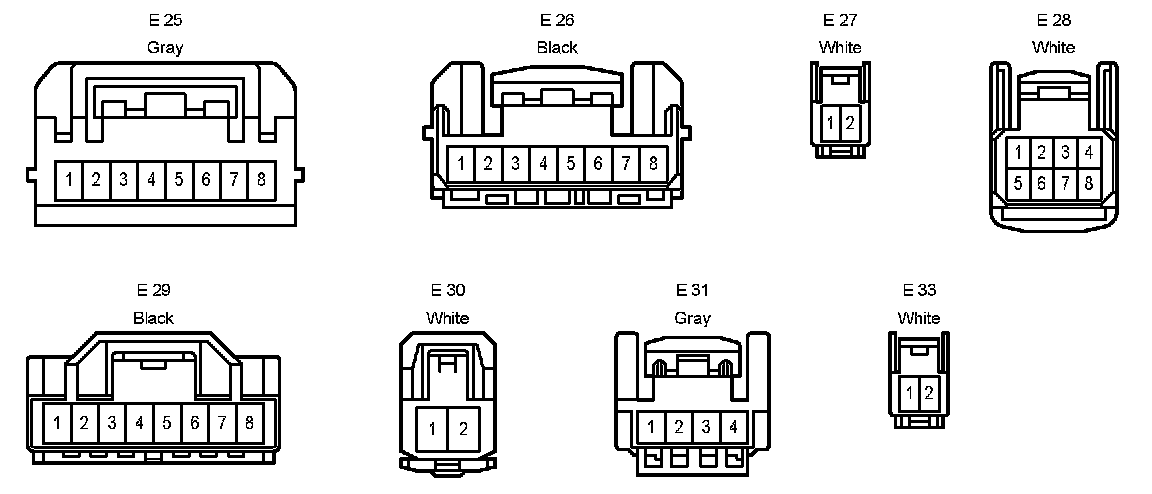

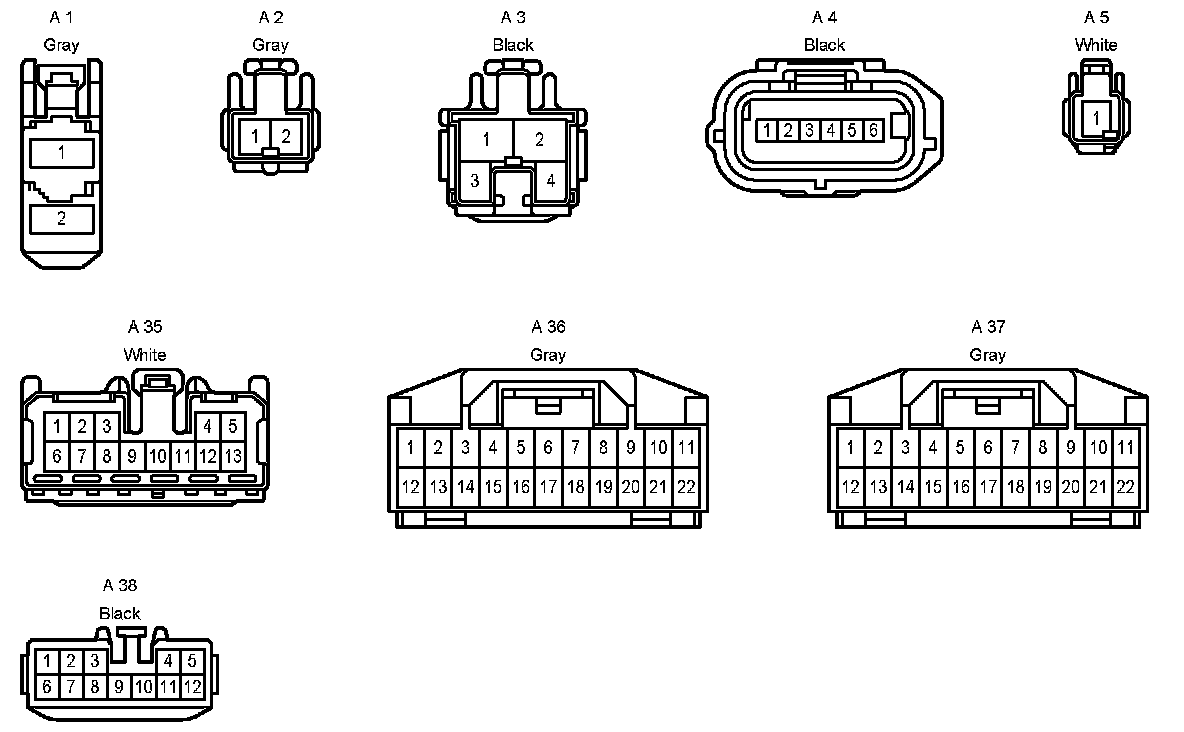

Connector Views:



Connector Views:

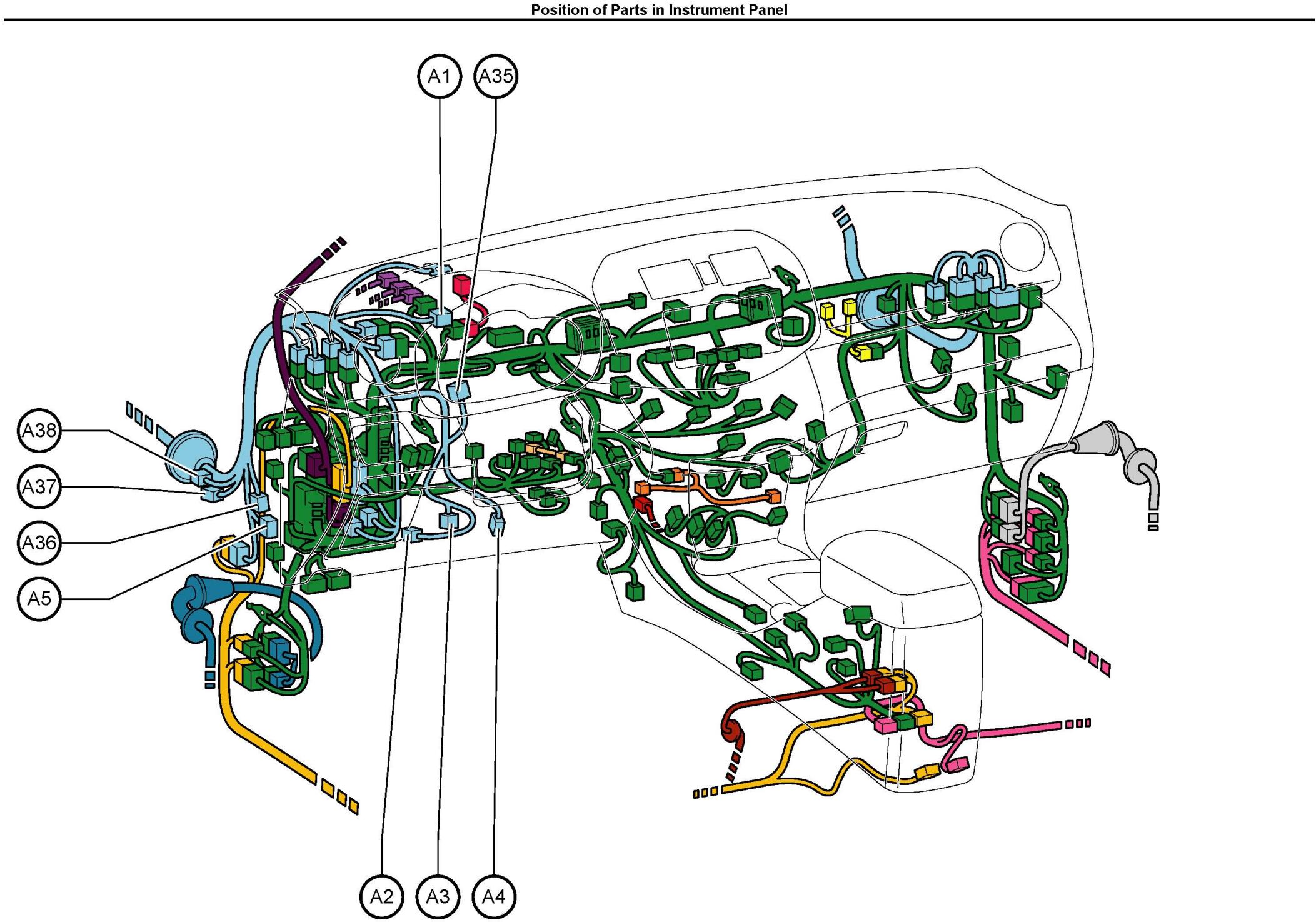

Position of Parts In Instrument Panel:



Legend:



Connector Views:
