Position of Parts In Body
Position of Parts In Body

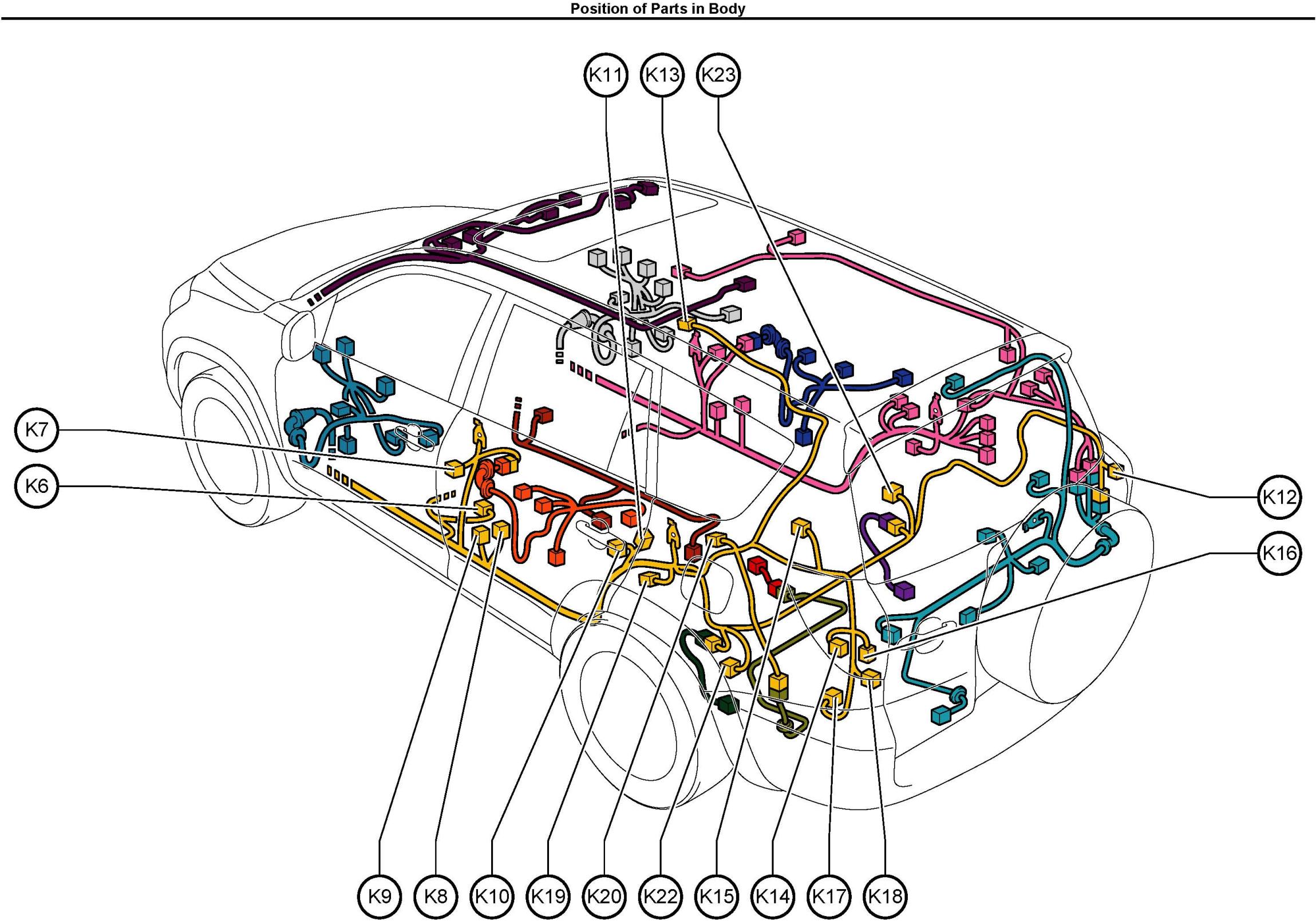

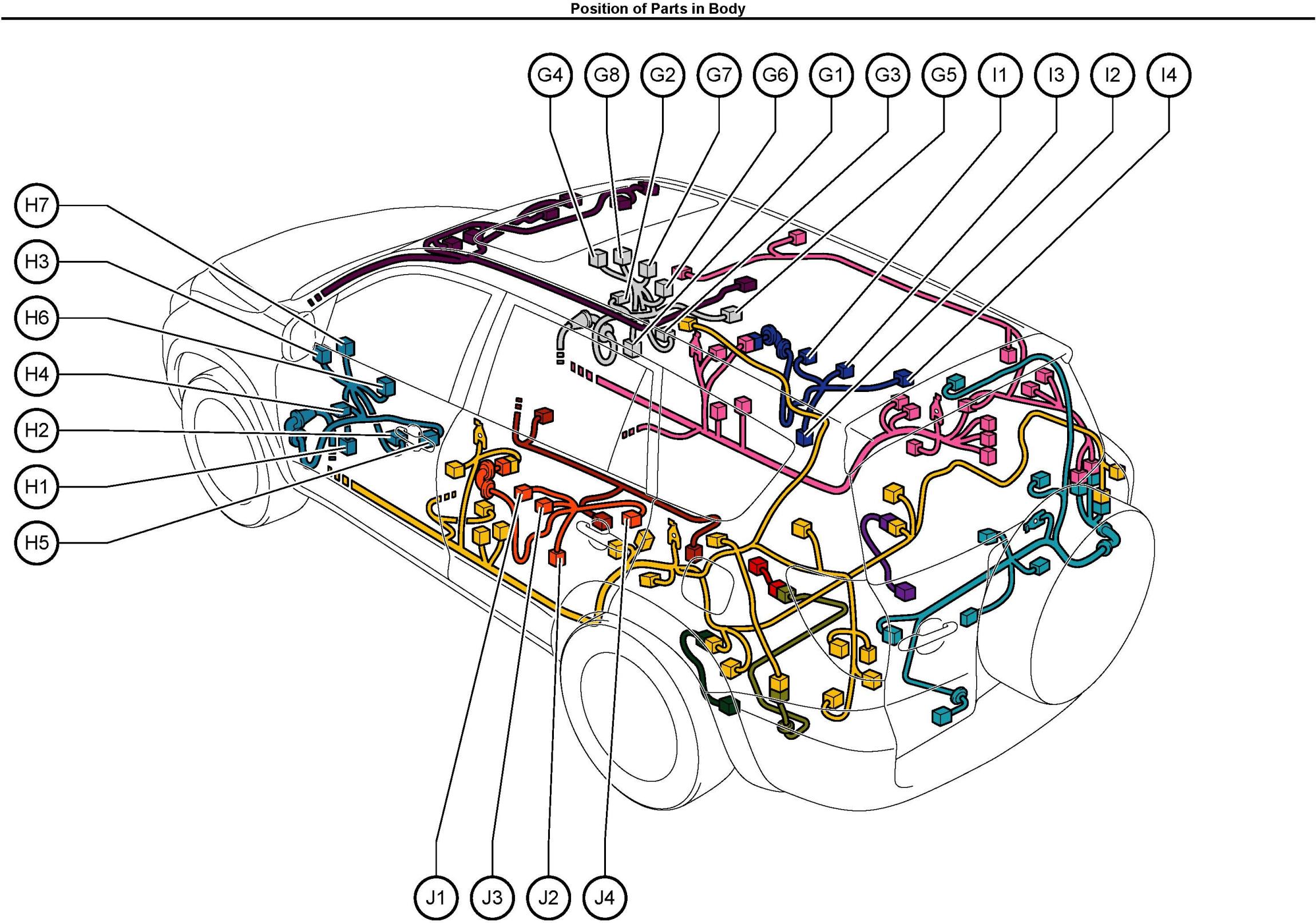

Position of Parts In Body:

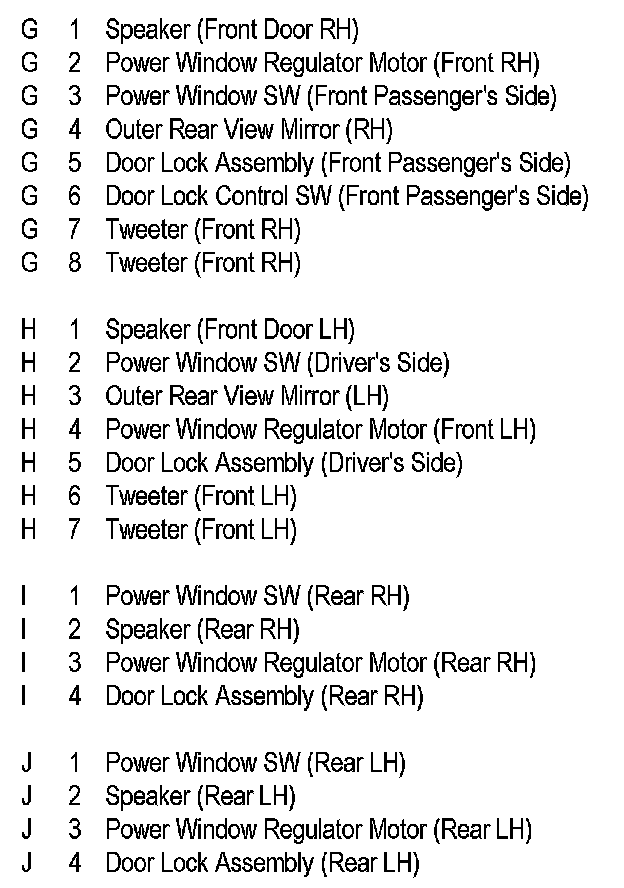

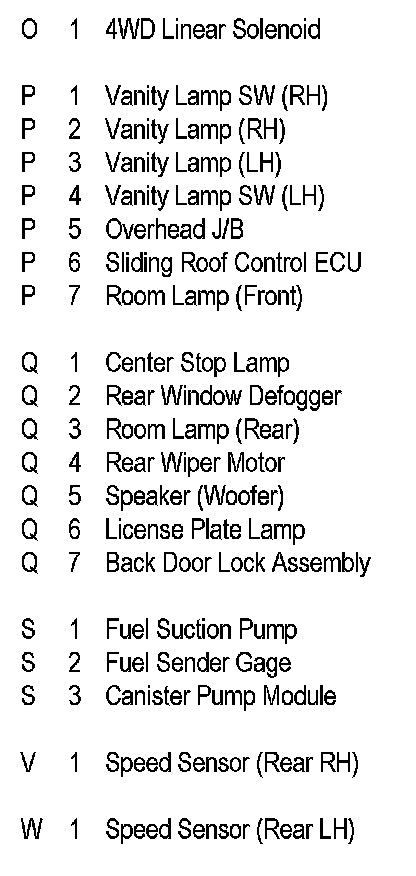

Legend:

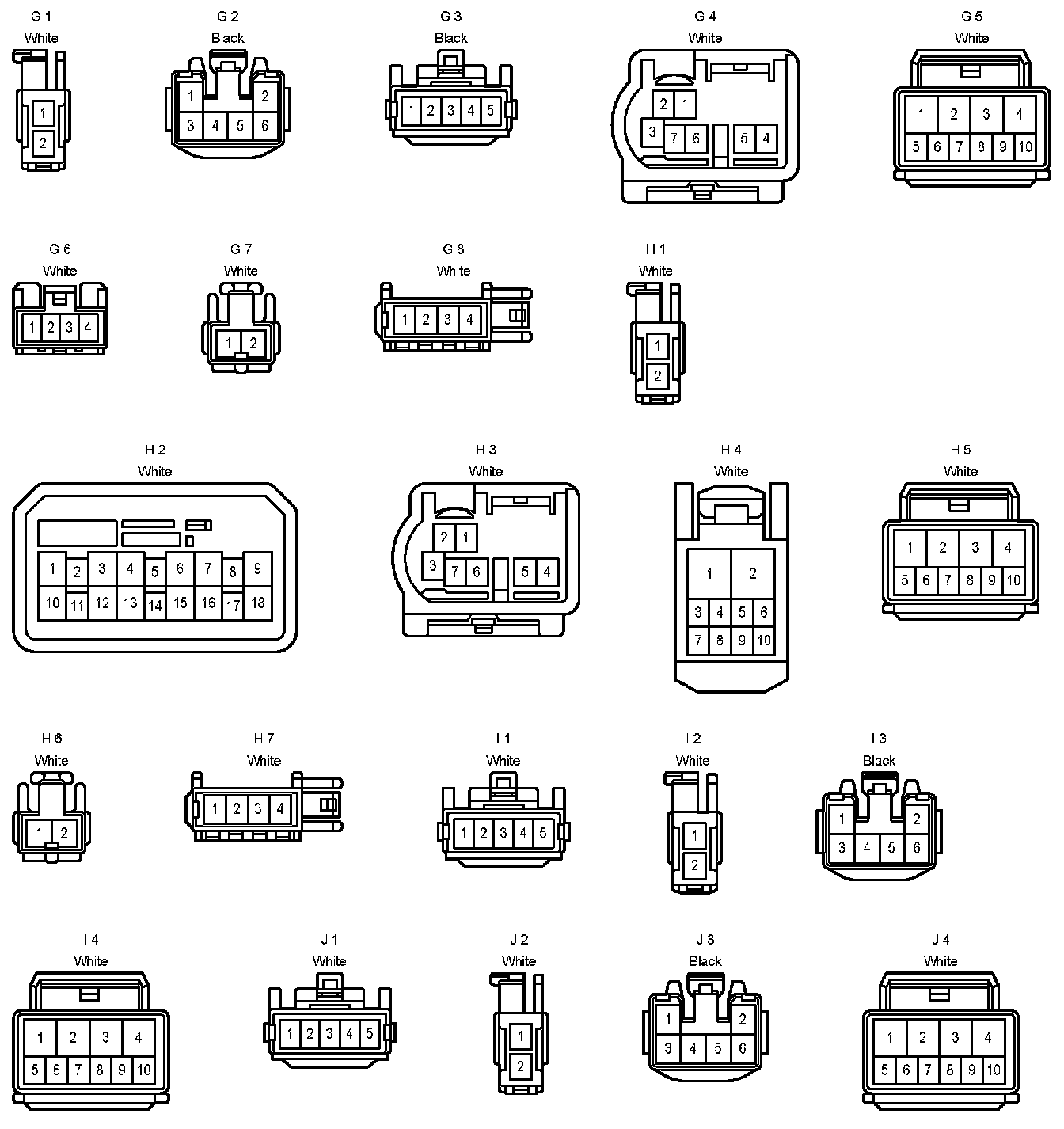

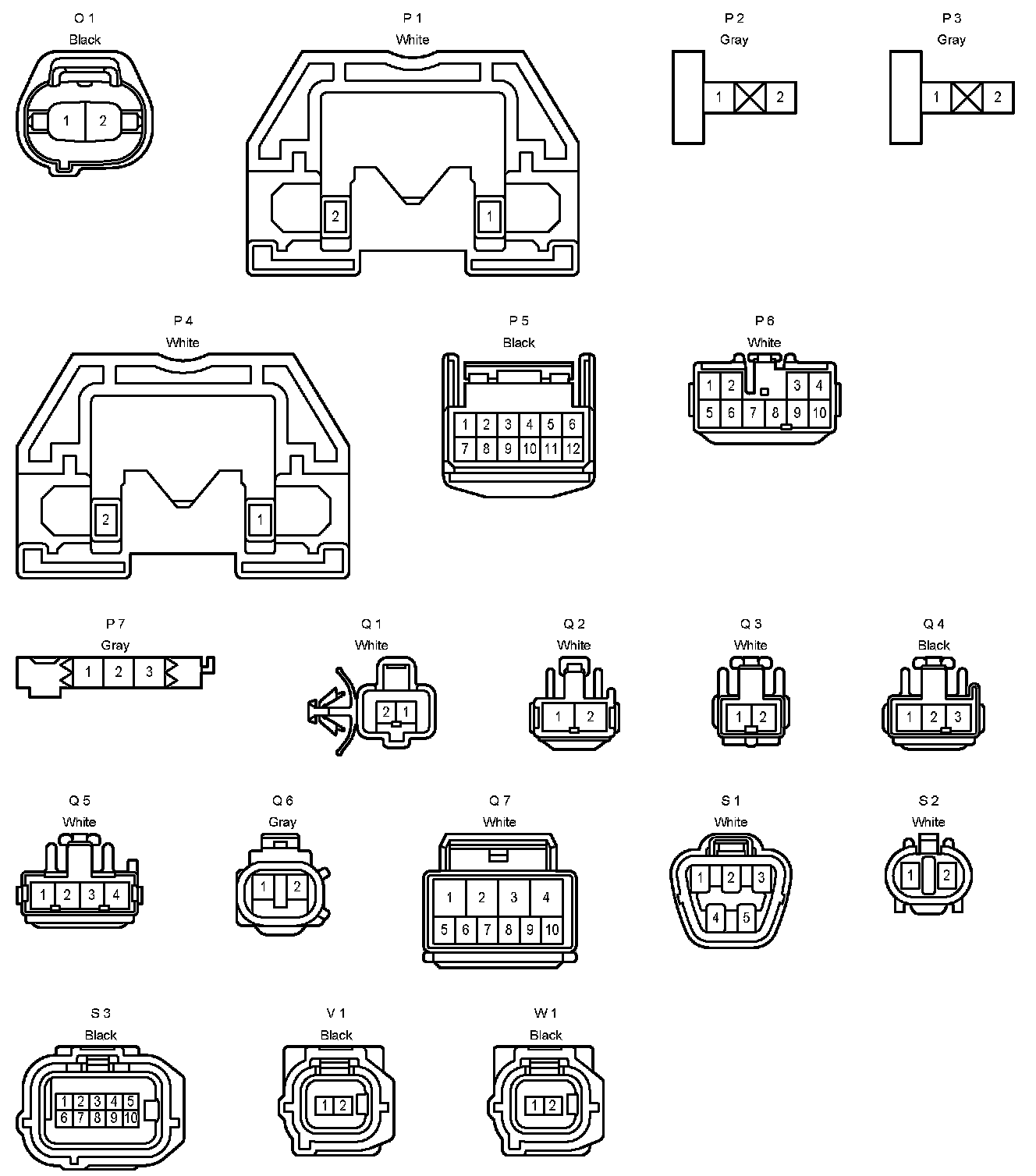

Connector Views:

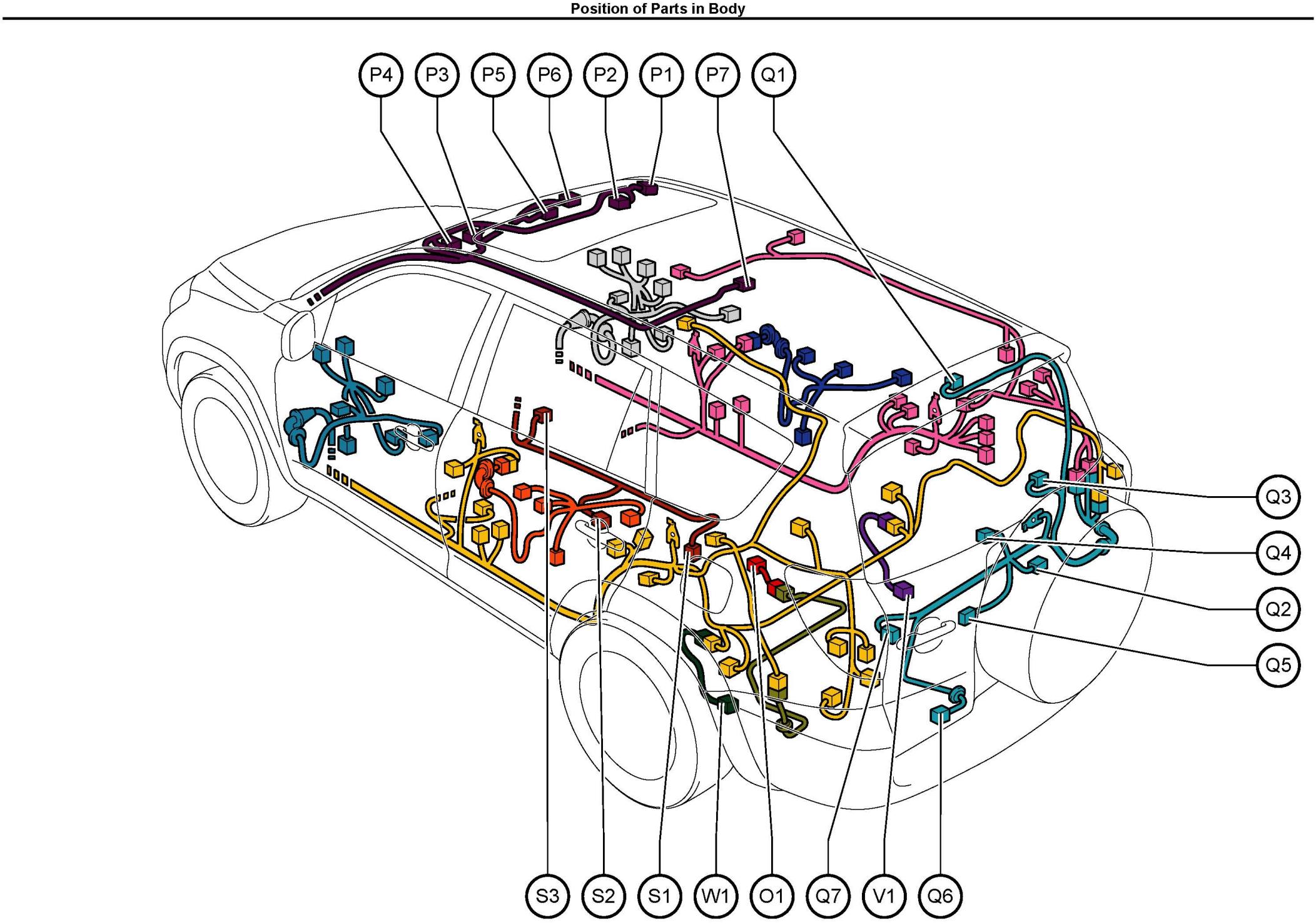

Position of Parts In Body:

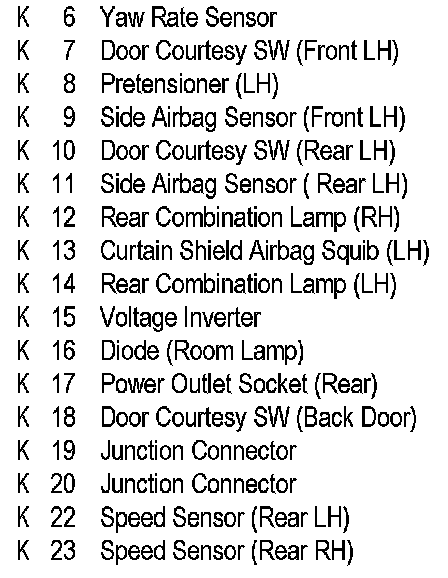

Legend:

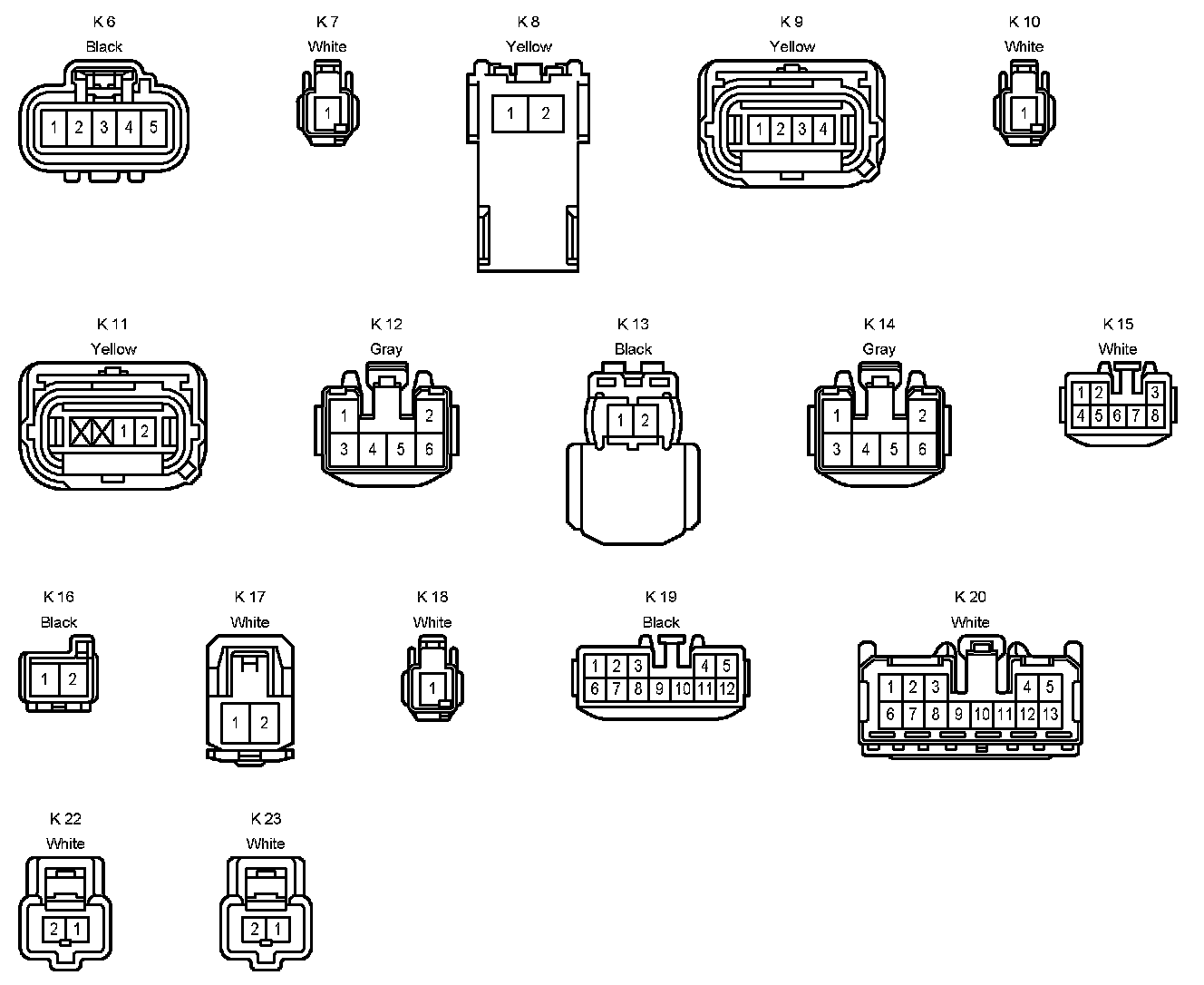

Connector Views:

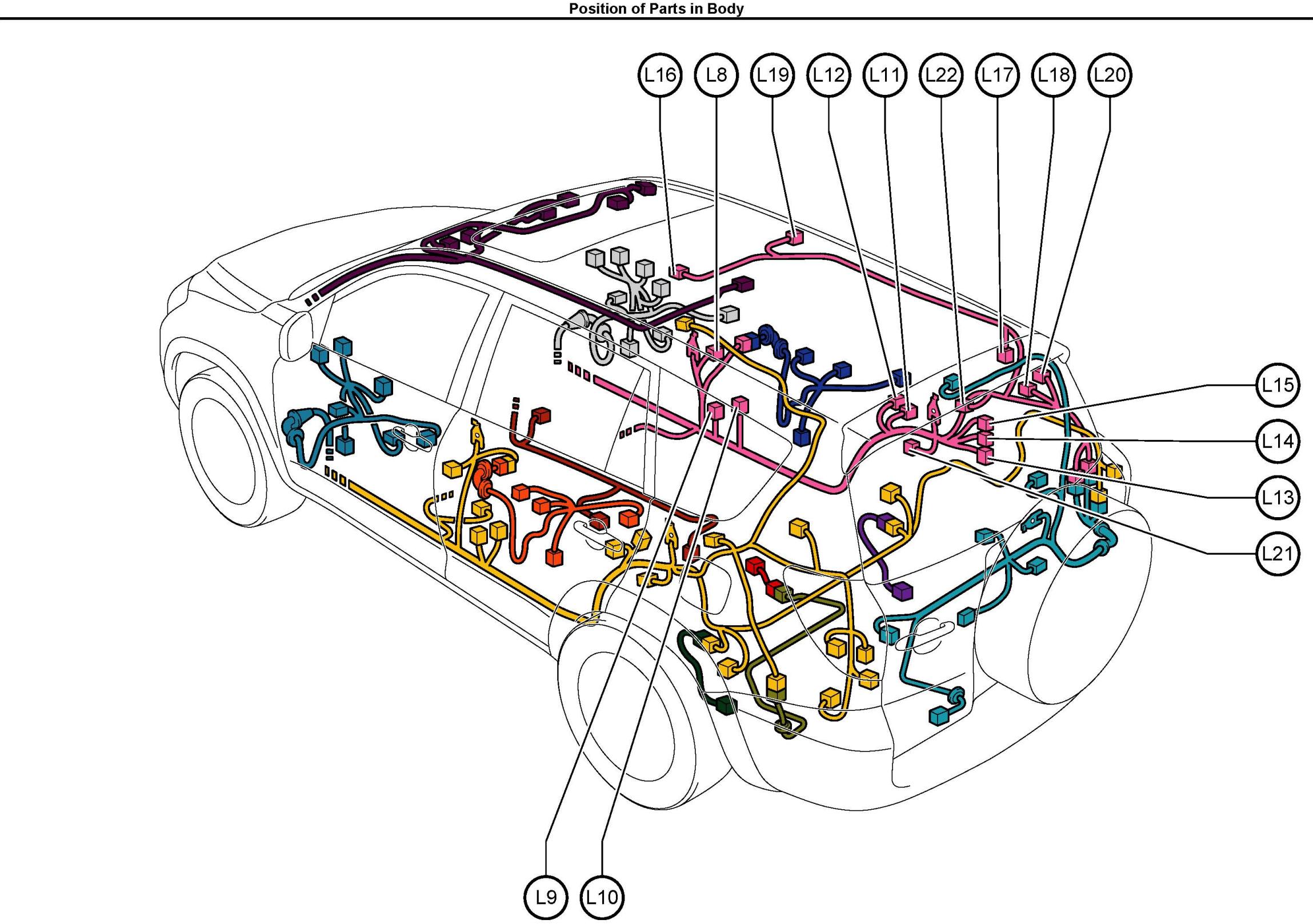

Position of Parts In Body:

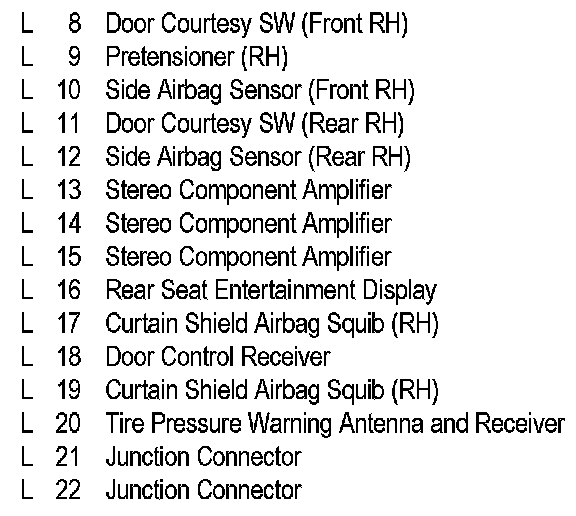

Legend:

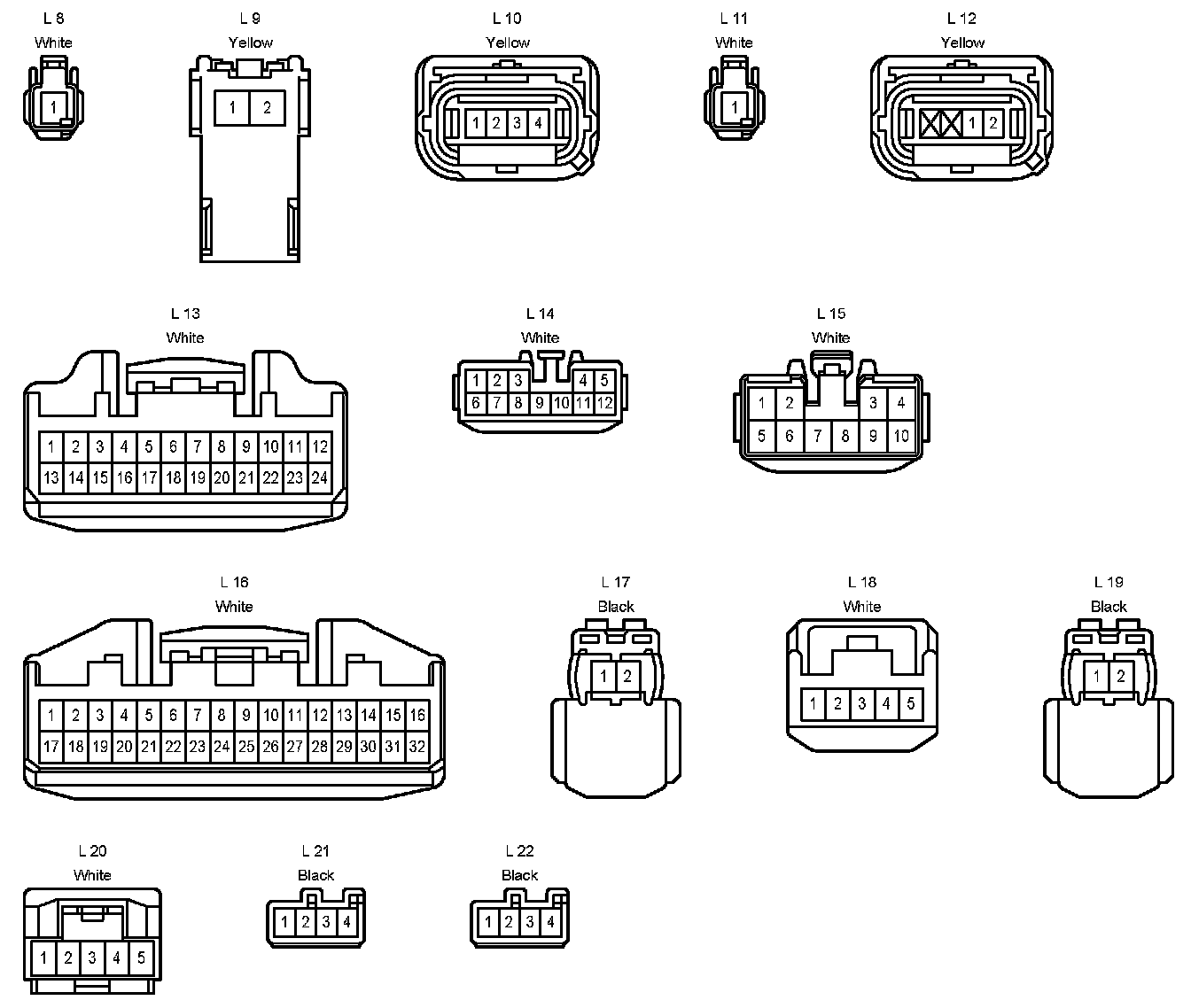

Connector Views:
Position of Parts In Body:
Legend:
Connector Views:
