Toyota Truck
>>
2008
>>
RAV4 2WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Service and Repair
>>
Front Brake
>>
Components
Components

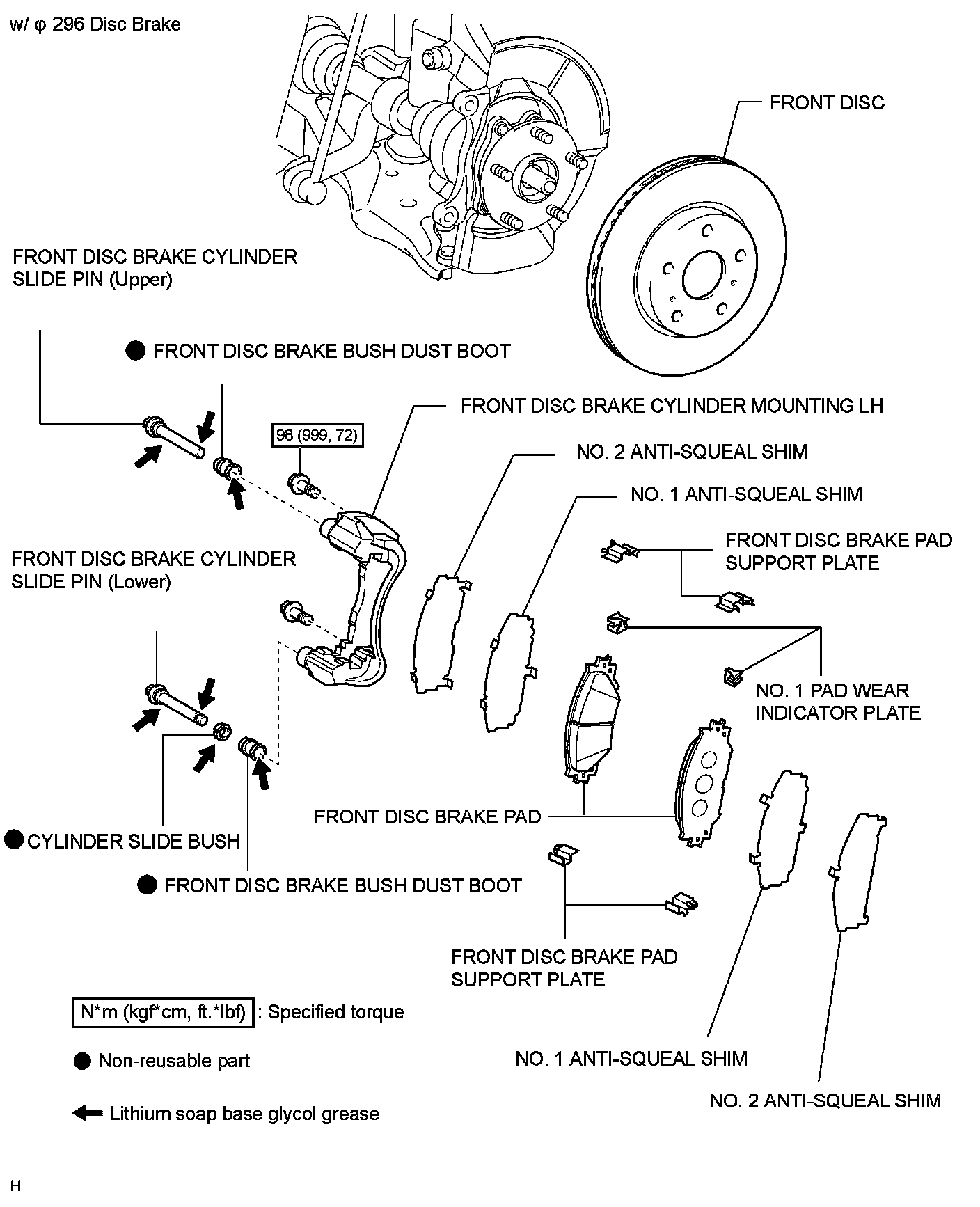

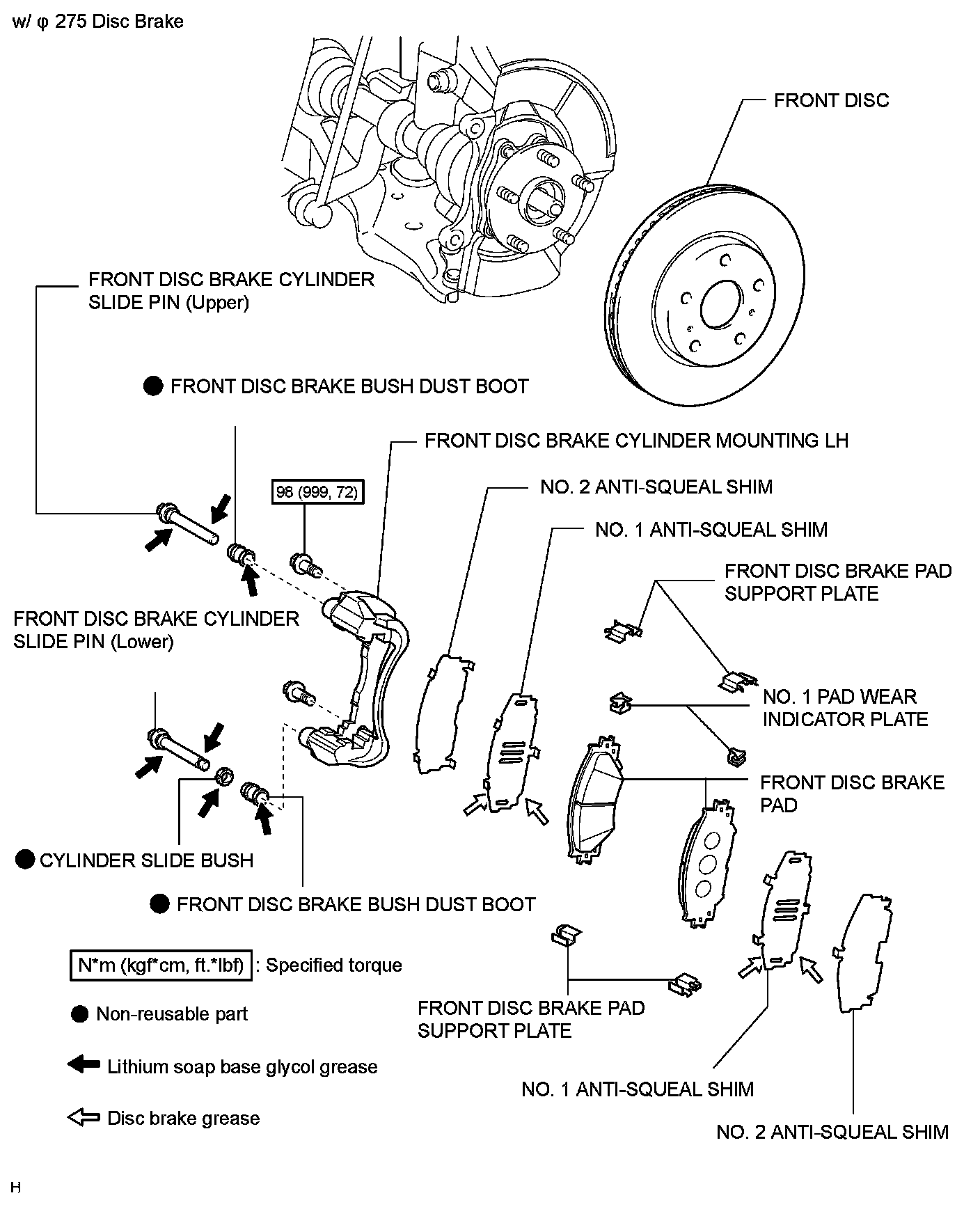

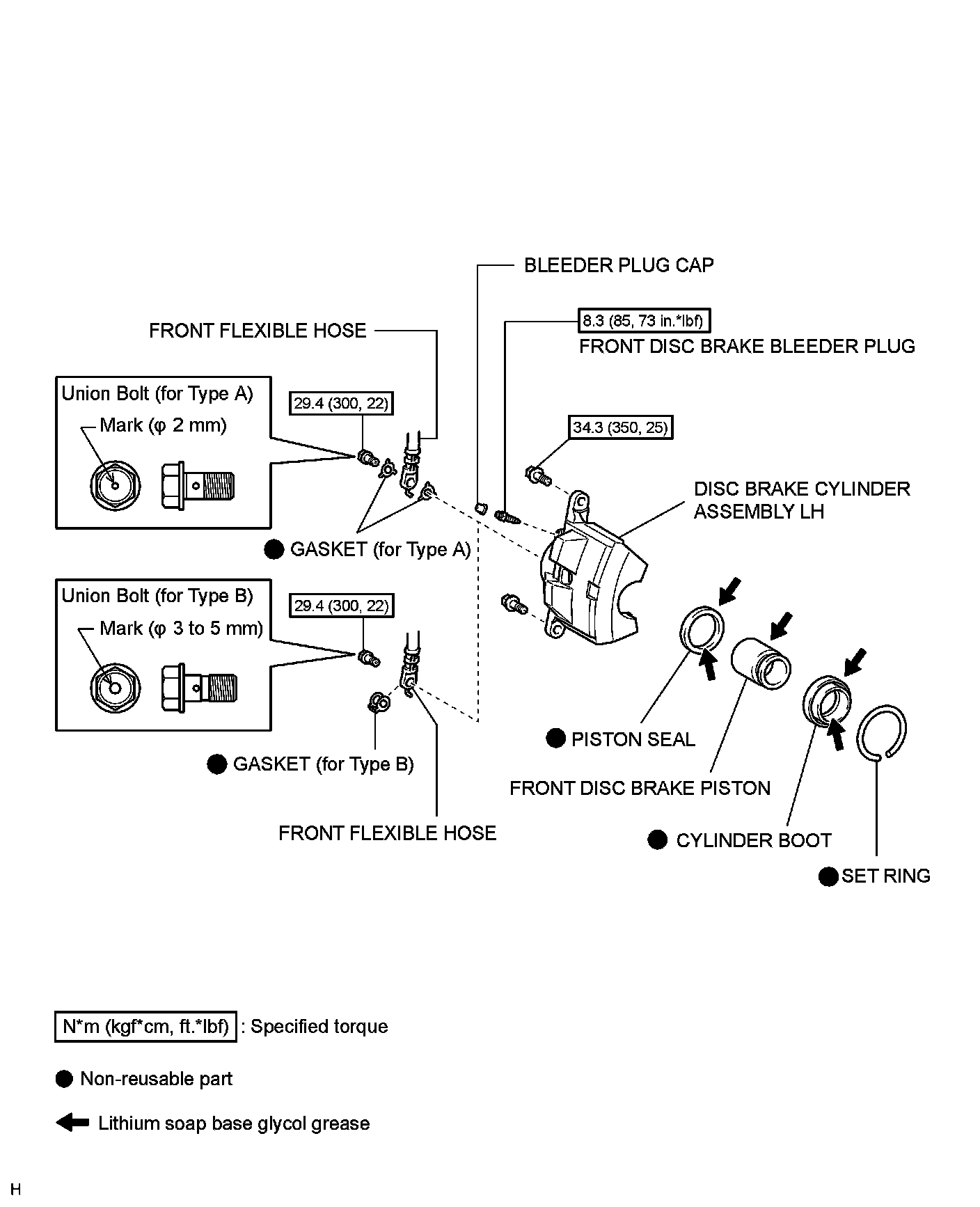

BRAKE: FRONT BRAKE: COMPONENTS
COMPONENTS
ILLUSTRATION
