Brake Pedal Assy: Testing and Inspection

BRAKE: BRAKE PEDAL: INSPECTION

INSPECTION

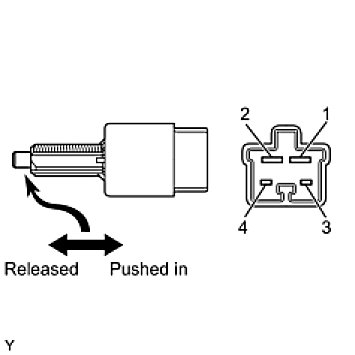

1. INSPECT STOP LIGHT SWITCH ASSEMBLY






(a) Measure the resistance of the switch.

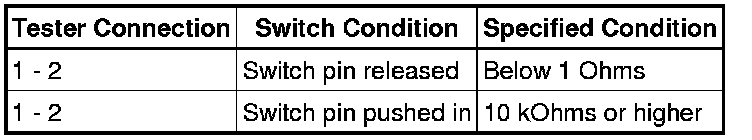

Standard resistance:





If the result is not as specified, replace the stop light switch assembly.
