BRAKE CONTROL: ABS AND TRACTION ACTUATOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (for 2AZ-FE)
(a) Remove the air cleaner case.
HINT: Refer to the procedures from the removal of the purge VSV up until the removal of the air cleaner case.

3. REMOVE AIR CLEANER CASE (for 2GR-FE)
(a) Remove the air cleaner case.
HINT: Refer to the procedures from the removal of the air cleaner cap sub-assembly up until the removal of the air cleaner case.

4. DRAIN BRAKE FLUID
NOTE: Wash off brake fluid immediately if it comes in contact with any painted surface.

5. DISCONNECT BRAKE LINES

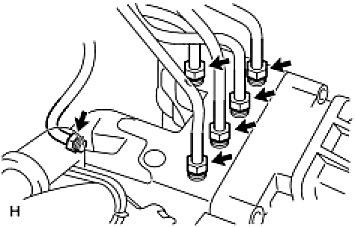

(a) Using SST, disconnect the 6 brake lines from the actuator.
SST: 09023-00101






(b) Place tags or marks to identify the installation locations of each brake line.
6. REMOVE ABS AND TRACTION ACTUATOR ASSEMBLY WITH BRACKET

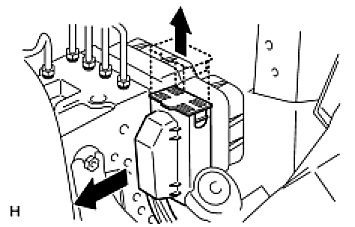

(a) Pull the lock lever upward and disconnect the connector.






(b) Disconnect the brake tube clamp from the bracket.

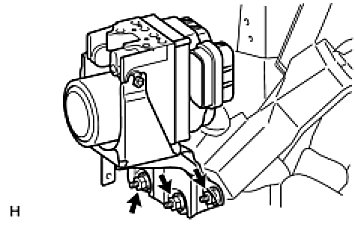

(c) Remove the 3 nuts and actuator with bracket.
NOTE: Be careful not to damage the brake tubes.
