Disassembly

BRAKE CONTROL: ABS AND TRACTION ACTUATOR: DISASSEMBLY

DISASSEMBLY

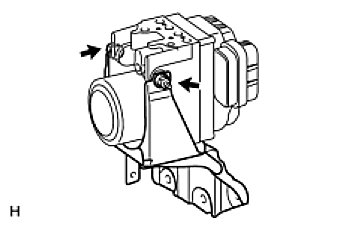

1. REMOVE ABS AND TRACTION ACTUATOR ASSEMBLY






(a) Remove the 2 nuts and actuator from the bracket.
2. REMOVE BRAKE ACTUATOR BOLT HOLDER
(a) Remove the 2 bolt holders from the actuator.
3. REMOVE BRAKE ACTUATOR BOLT CUSHION
(a) Remove the 3 cushions from the actuator.
