System Diagram
System Diagram

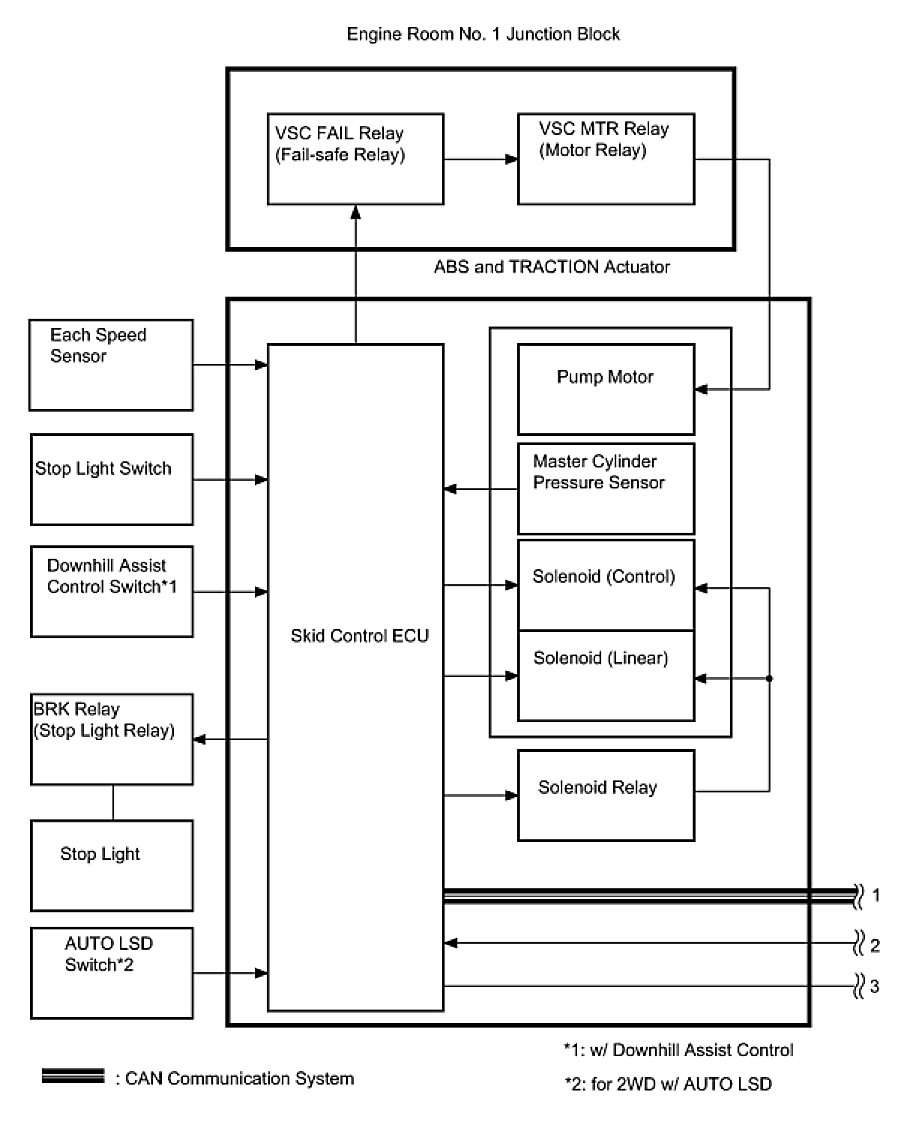

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
