Seat Temperature Switch: Testing and Inspection

SEAT: SEAT HEATER SWITCH: INSPECTION

INSPECTION

1. INSPECT SEAT HEATER SWITCH

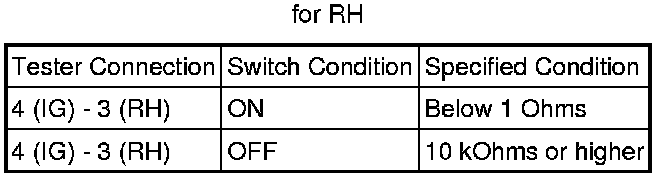

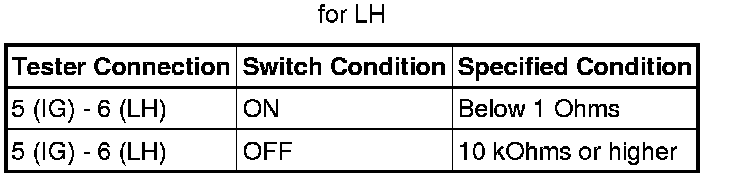

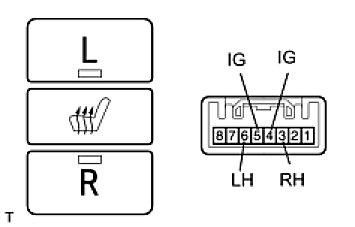

(a) Measure the resistance of the seat heater switch when the switch is operated.
Standard resistance:

If the result is not as specified, replace the switch.

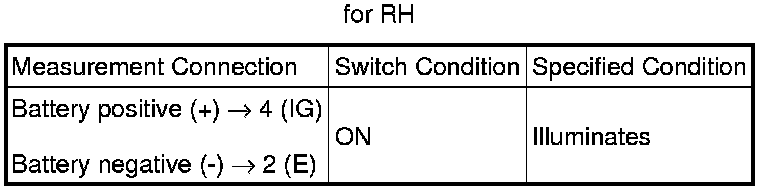

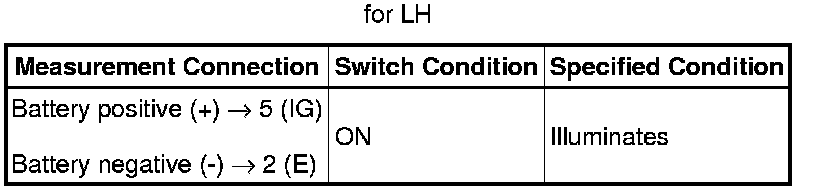

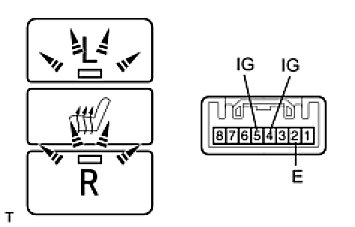

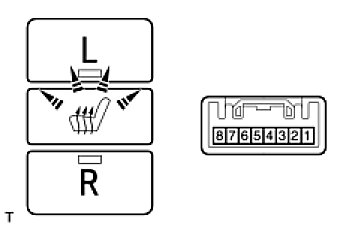

(b) Check that the seat heater switch indicator light illuminates when the switch is operated.
OK:

If the result is not as specified, replace the switch.
