Removal

MIRROR: OUTER REAR VIEW MIRROR: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH Disassembly

2. REMOVE FRONT ARMREST UPPER BASE PANEL LH Disassembly

3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly







4. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

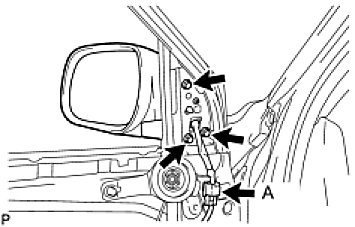

(a) Disconnect the mirror connector labeled A.
(b) Remove the 3 screws.
(c) Remove the outer rear view mirror.
5. REMOVE OUTER MIRROR COVER LH (w/ Mirror Heater)

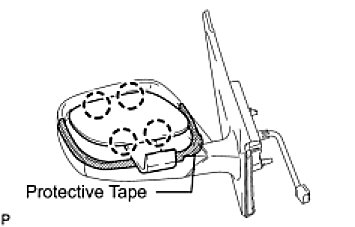

(a) Using a moulding remover, detach the 4 claws.
HINT: Apply protective tape to the mirror body.





(b) Remove the 2 connectors and disconnect the mirror.






(c) Using a screwdriver, detach the 8 claws and remove the mirror cover.
HINT: Tape the screwdriver tip before use.

6. REMOVE OUTER MIRROR COVER LH (w/o Mirror Heater)





(a) Using a moulding remover, detach the 4 claws.
HINT: Apply protective tape to the mirror body.





(b) Disconnect the mirror.






(c) Using a screwdriver, detach the 8 claws and remove the mirror cover.
HINT: Tape the screwdriver tip before use.
