MIRROR: OUTER REAR VIEW MIRROR: INSTALLATION

INSTALLATION

1. INSTALL OUTER MIRROR COVER LH

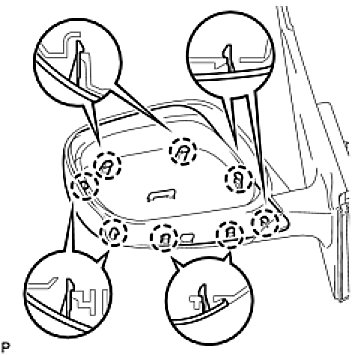

(a) Attach the 8 claws and install the mirror cover.
(b) After installing the outer mirror cover, check that there is no gap between the cover and mirror body.
HINT: If there is a gap between the cover and body, noise will occur during driving.

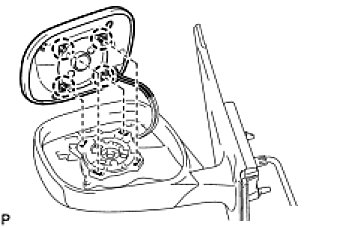

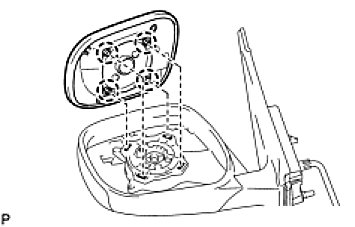

(d) w/o Mirror Heater:
Attach the 4 claws to install the mirror.

2. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
(a) Pass the connector labeled A and wire harness of the mirror through the wire harness hole.
(b) Temporarily install the mirror by inserting the bosses on the mirror into the holes on the vehicle.

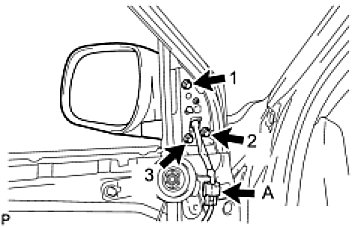

(c) Tighten the 3 screws in the sequence shown in the illustration and Install the mirror.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
(d) Connect the connector labeled A.
3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

4. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH Reassembly
