Engine Control System - SFI System

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0500: Vehicle Speed Sensor "A"

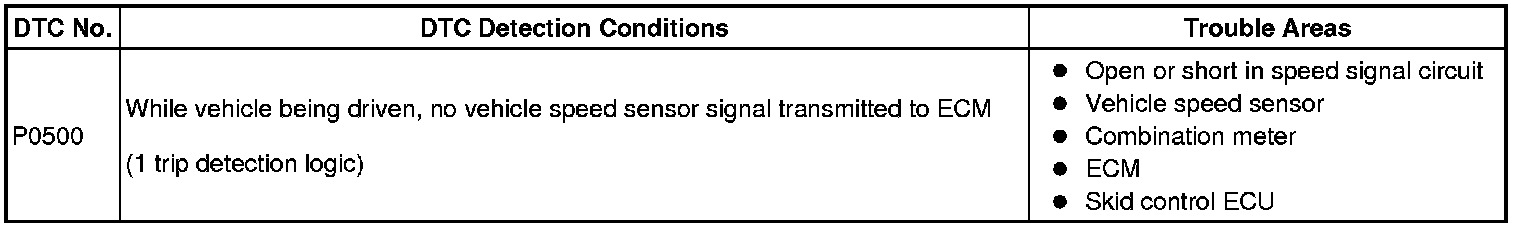

DTC P0500 - Vehicle Speed Sensor "A"

DESCRIPTION

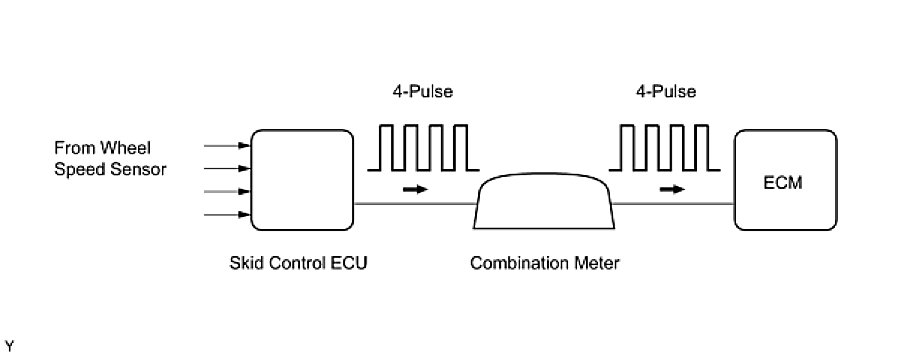

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. The skid control ECU converts these wheel speed signals into a 4-pulse signal and outputs it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of these pulse signals.









MONITOR DESCRIPTION

The ECM assumes that the vehicle is being driven, when the indicated engine speed is more than 2,300 rpm and 30 seconds have elapsed since the Park/Neutral Position (PNP) switch was turned OFF. If there is no speed signal from the combination meter, despite these conditions being met, the ECM interprets this as a malfunction in the speed signal circuit. The ECM then illuminates the MIL and sets the DTC.

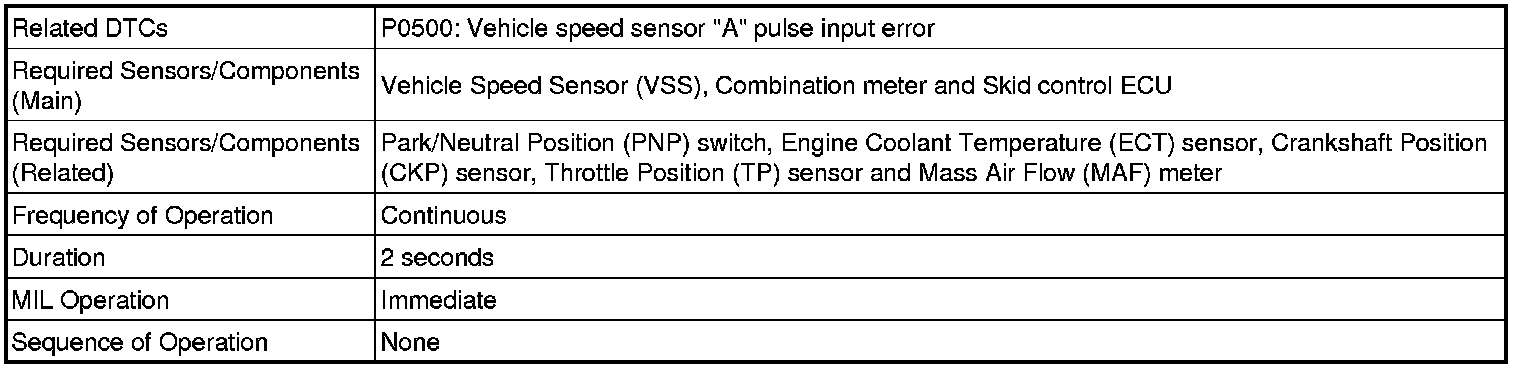

MONITOR STRATEGY

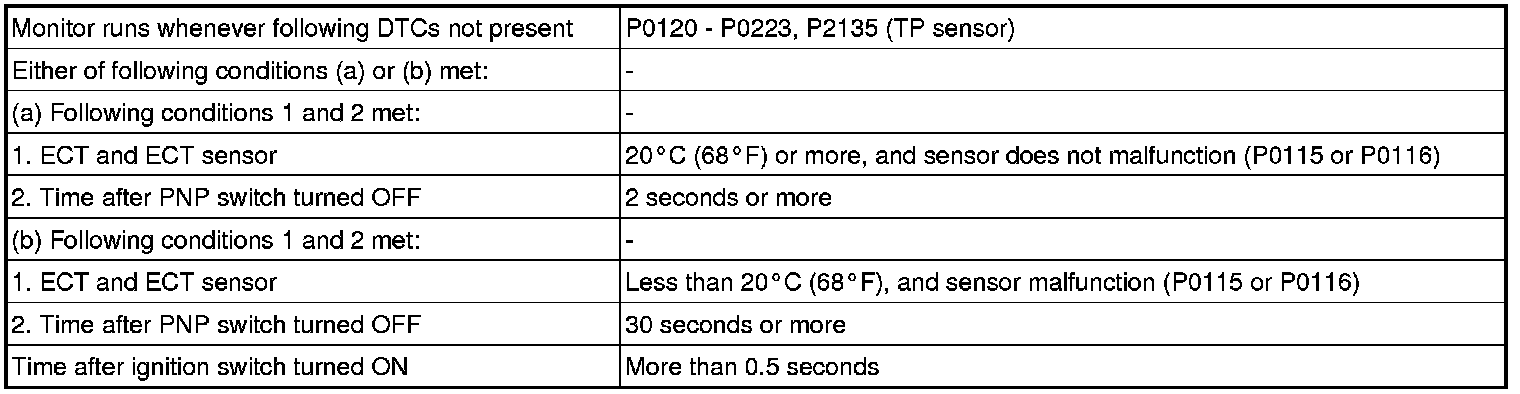

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS

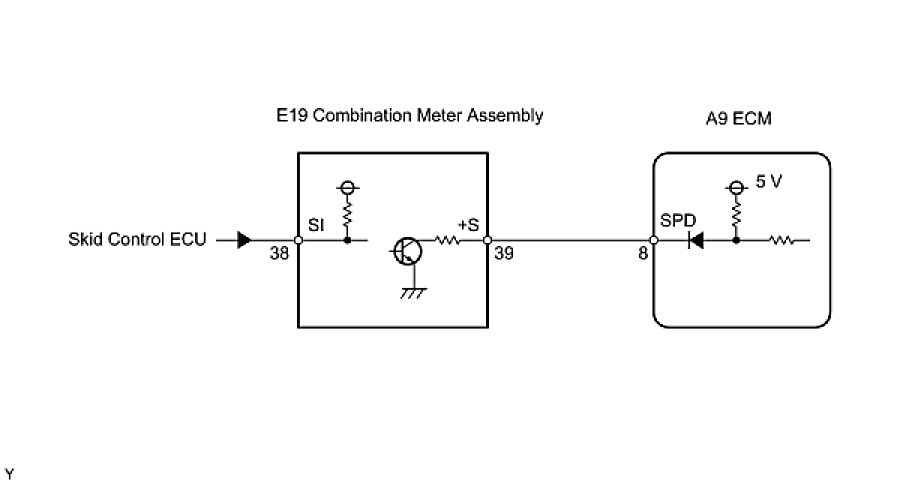

WIRING DIAGRAM





INSPECTION PROCEDURE
HINT: Read freeze frame data using Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. CHECK OPERATION OF SPEEDOMETER
(a) Drive the vehicle and check whether the operation of the speedometer in the combination meter is normal.
HINT:
- The vehicle speed sensor is operating normally if the speedometer reading is normal.
- If the speedometer does not operate, check it by following the procedure described in Speedometer Malfunction .

NG -- GO TO MALFUNCTION IN SPEEDOMETER
OK -- Continue to next step.
2. READ VALUE USING TECHSTREAM (VEHICLE SPD)
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch ON.
(c) Turn the tester ON.
(d) Select the following menu items: Powertrain / Engine and ECT / Data List / Vehicle Speed.
(e) Drive the vehicle.
(f) Read the value displayed on the tester.
OK:
Vehicle speeds displayed on tester and speedometer display are equal.
OK -- CHECK FOR INTERMITTENT PROBLEMS
NG -- Continue to next step.

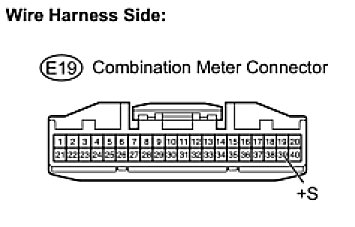

3. CHECK COMBINATION METER ASSEMBLY (+S VOLTAGE)





(a) Disconnect the E19 combination meter connector.
(b) Turn the ignition switch ON.
(c) Measure the voltage between the terminal of the combination meter and the body ground.
Standard voltage:





(d) Reconnect the combination meter connector.
NG -- CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
OK -- Continue to next step.

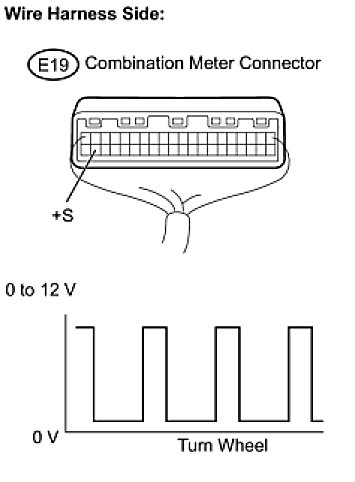

4. CHECK COMBINATION METER ASSEMBLY (SPD SIGNAL WAVEFORM)





(a) Shift the transmission gear selector lever to the neutral position.
(b) Jack up the vehicle.
(c) Turn the ignition switch ON.
(d) Check the voltage between the terminal of the combination meter and the body ground while the wheel is turned slowly.
Standard voltage:





HINT: The output voltage should fluctuate up and down, similarly to the diagram, when the wheel is turned slowly.

NG -- REPLACE COMBINATION METER ASSEMBLY
OK -- Continue to next step.

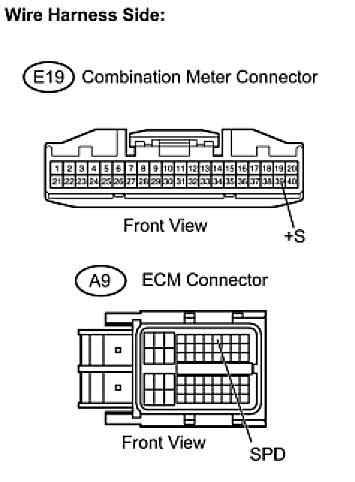

5. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)





(a) Disconnect the E19 combination meter connector.
(b) Disconnect the A9 ECM connector.
(c) Check the resistance.
Standard resistance (check for open):






Standard resistance (check for short):





(d) Reconnect the combination meter connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
