Steering Angle Sensor Circuit Malfunction - Vehicle Stability Control System

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1231/31: Steering Angle Sensor Circuit Malfunction

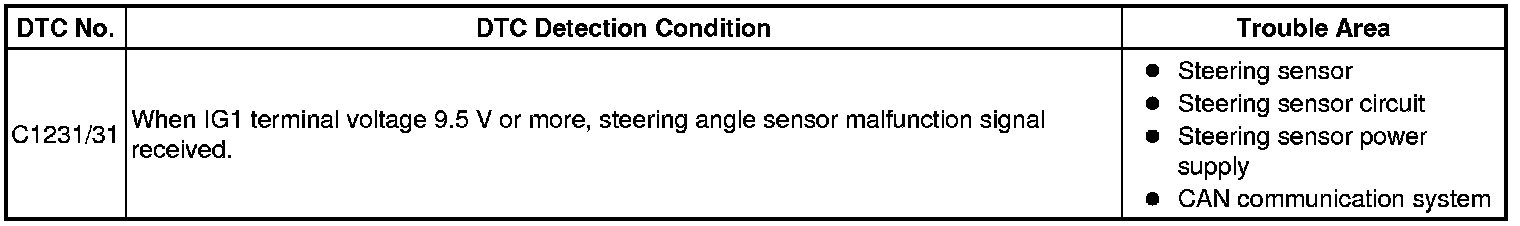

DTC C1231/31 - Steering Angle Sensor Circuit Malfunction

DESCRIPTION

The steering sensor signal is sent to the skid control ECU via the CAN communication system. When there is a malfunction in the CAN communication system, it is detected by the steering sensor zero point malfunction diagnostic function.

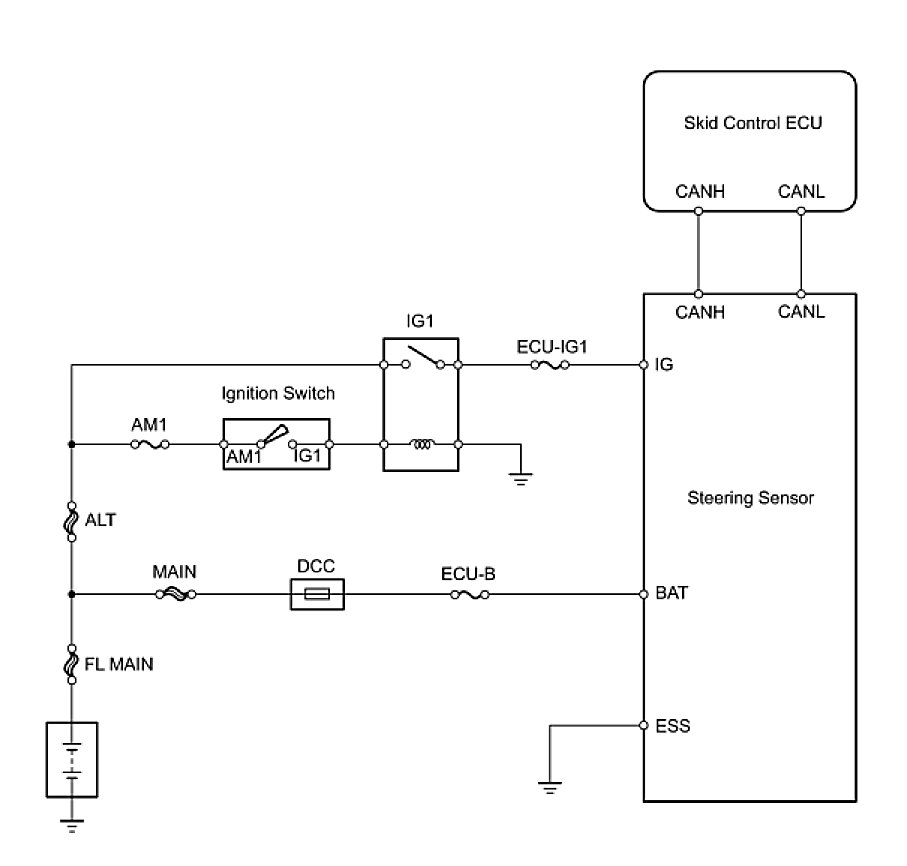

WIRING DIAGRAM





INSPECTION PROCEDURE
HINT:
- When U0073/94, U0123/62, U0124/95 or U0126/63 is output together with C1231/31, inspect and repair the trouble areas indicated by U0073/94, U0123/62, U0124/95 or U0126/63 first.
- When there are problems with the speed sensor or the yaw rate sensor, DTCs for the steering sensor may be output even when the steering sensor is normal. When DTCs for the speed sensor or yaw rate sensor are output together with other DTCs for the steering sensor, inspect and repair the speed sensor and yaw rate sensor first, and then inspect and repair the steering sensor.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (MOMENTARY INTERRUPTION)

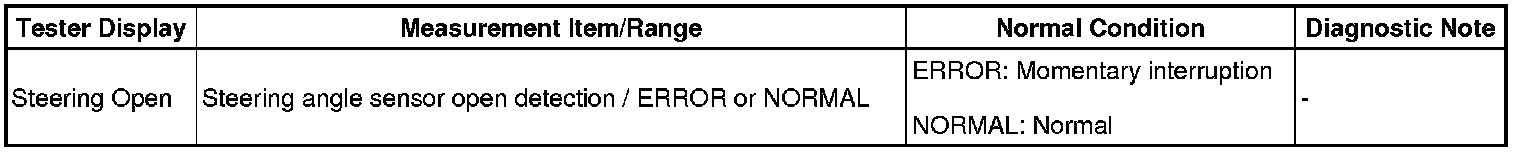

(a) Using the Data List of Techstream, check for any momentary interruptions in the wire harness and connectors between the skid control ECU and the steering sensor .

ABS / VSC / TRAC:





OK:
There are no momentary interruptions.
HINT: Perform the above inspection before removing the sensor and connector.

NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR (STEERING SENSOR TO SKID CONTROL ECU)
OK -- Continue to next step.
2. CHECK DTC
(a) Clear the DTC .
(b) Turn the ignition switch OFF.
(c) Turn the ignition switch ON again and check that no CAN communication system DTC is output.
(d) Drive the vehicle and turn the steering wheel to the right and left at a speed of 35 km/h (24 mph) and check that no speed and yaw rate sensor DTCs are output.

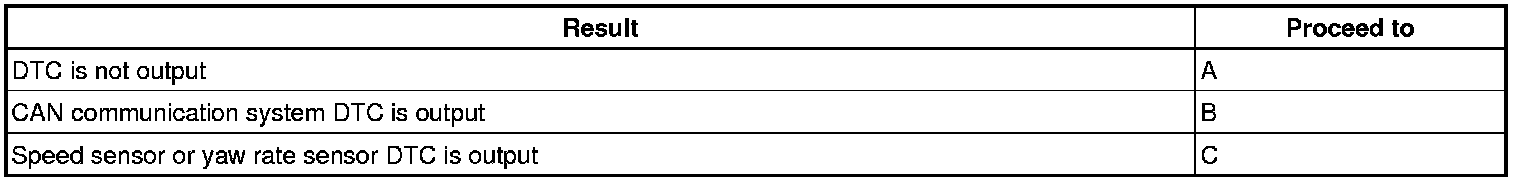

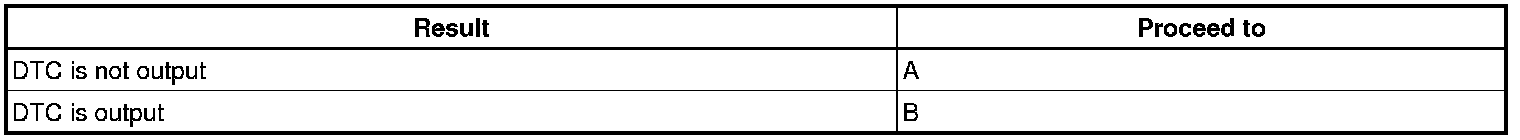

Result





C -- REPAIR CIRCUIT INDICATED BY OUTPUT DTC
B -- CHECK CAN COMMUNICATION SYSTEM
A -- Continue to next step.
3. CHECK WIRE HARNESS (STEERING SENSOR - BATTERY AND BODY GROUND)





(a) Remove the steering wheel assembly and the column cover.

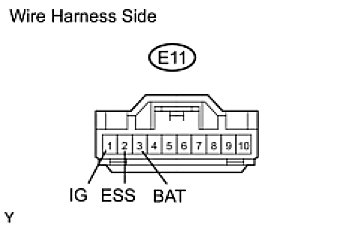

(b) Disconnect the E11 sensor connector.
(c) Measure the voltage of the wire harness side connector.

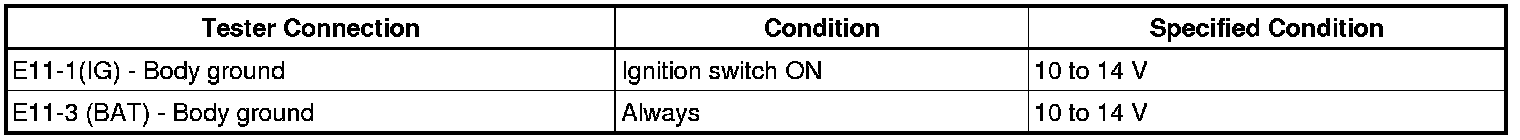

Standard voltage:





(d) Measure the resistance of the wire harness side connector.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE STEERING SENSOR
4. REPAIR OR REPLACE HARNESS AND CONNECTOR (STEERING SENSOR TO SKID CONTROL ECU)
NEXT -- Continue to next step.
5. RECONFIRM DTC
(a) Clear the DTC .
(b) Start the engine.
(c) Drive the vehicle and turn the steering wheel to the right and left at a speed of 45 km/h (28 mph) or more for several seconds.
(d) Check if the same DTC is recorded .

Result





B -- CHECK DTC
A -- END
