Tire Pressure Warning System

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

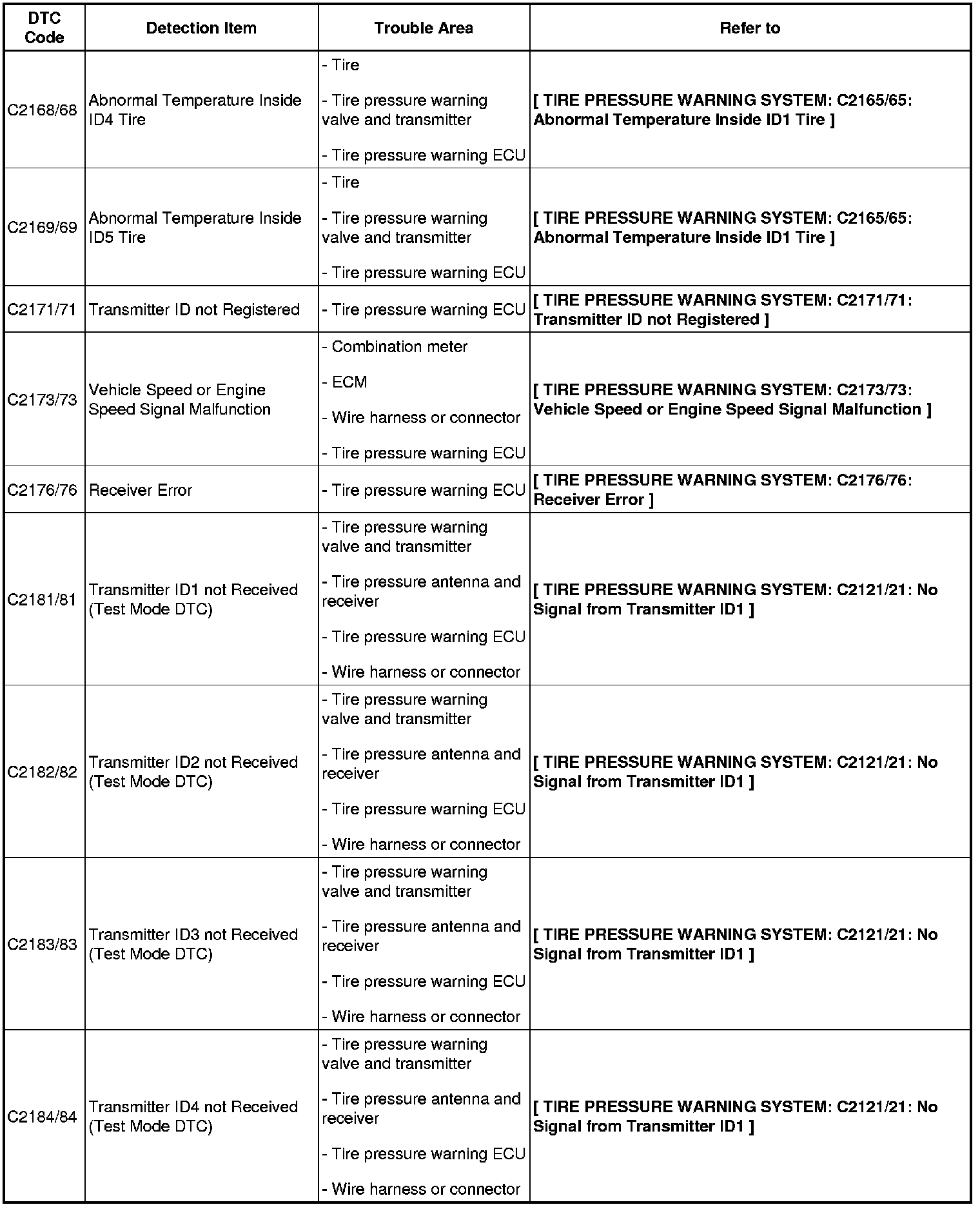

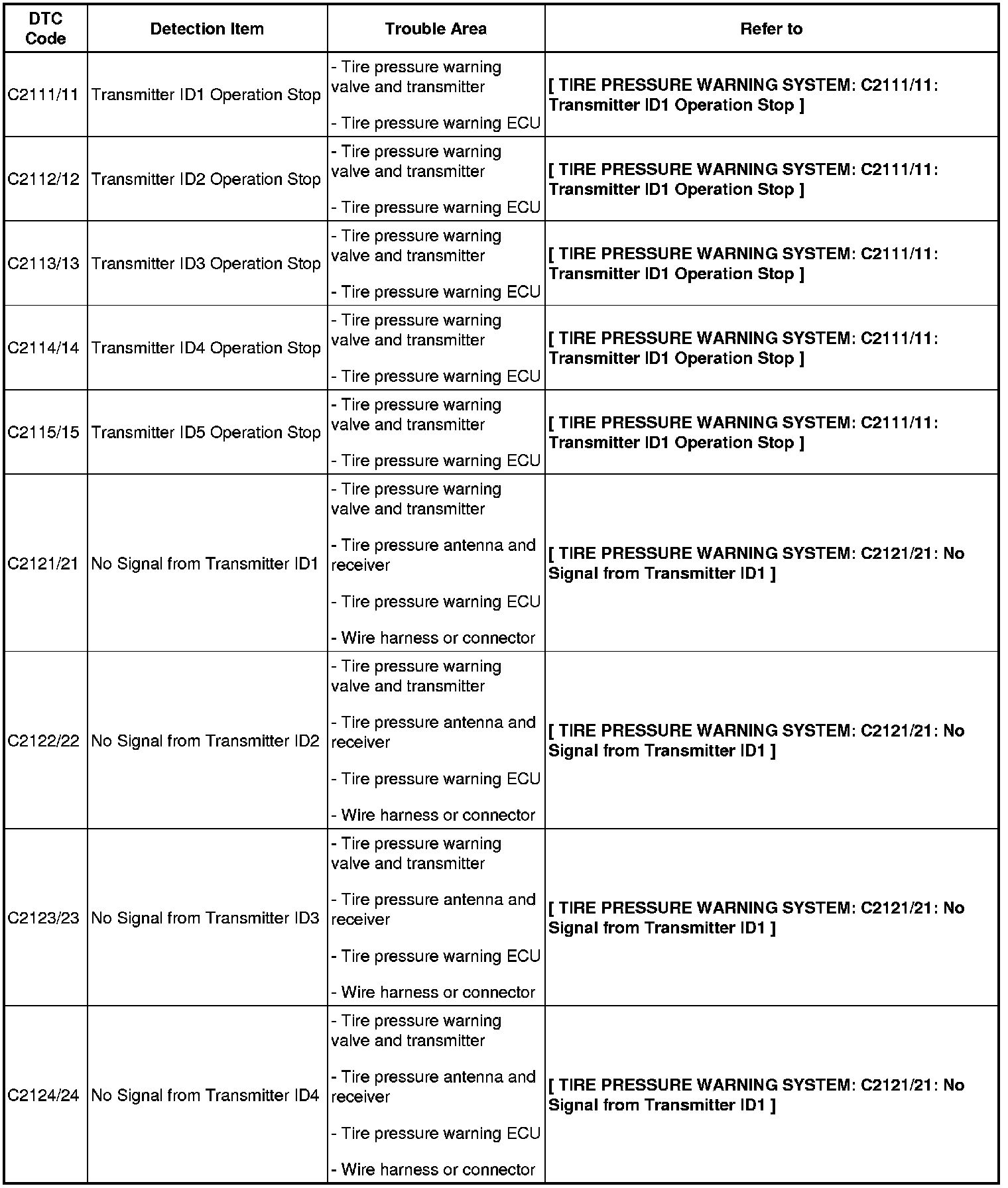

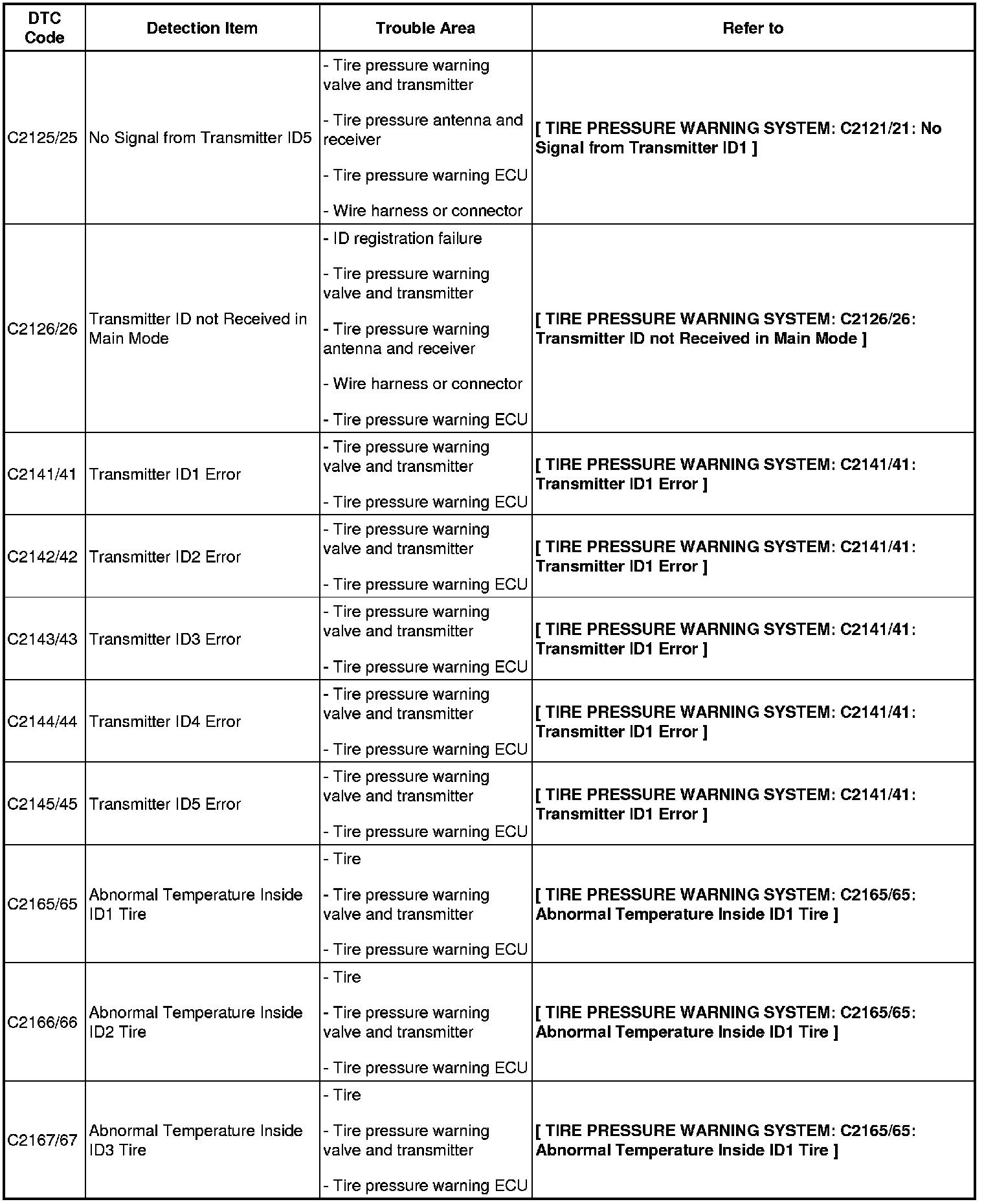

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, check the circuit listed for that code in the table below. Then proceed to the appropriate page.

Tire Pressure Warning System
