Cruise Control System

CRUISE CONTROL: CRUISE CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, check the trouble areas listed for that code in the table below and proceed to the applicable Diagnostic Trouble Code Test.

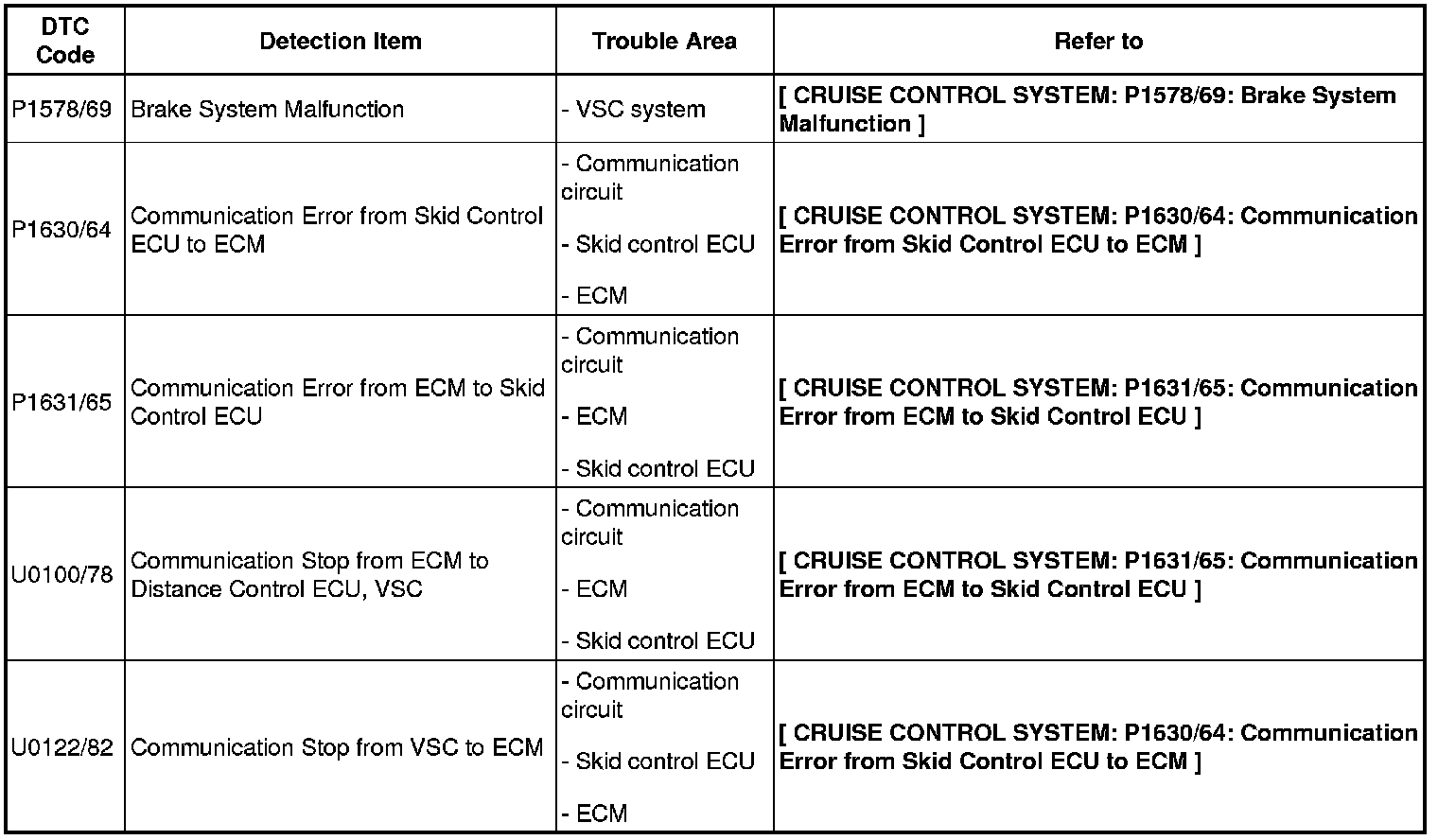

Cruise control system

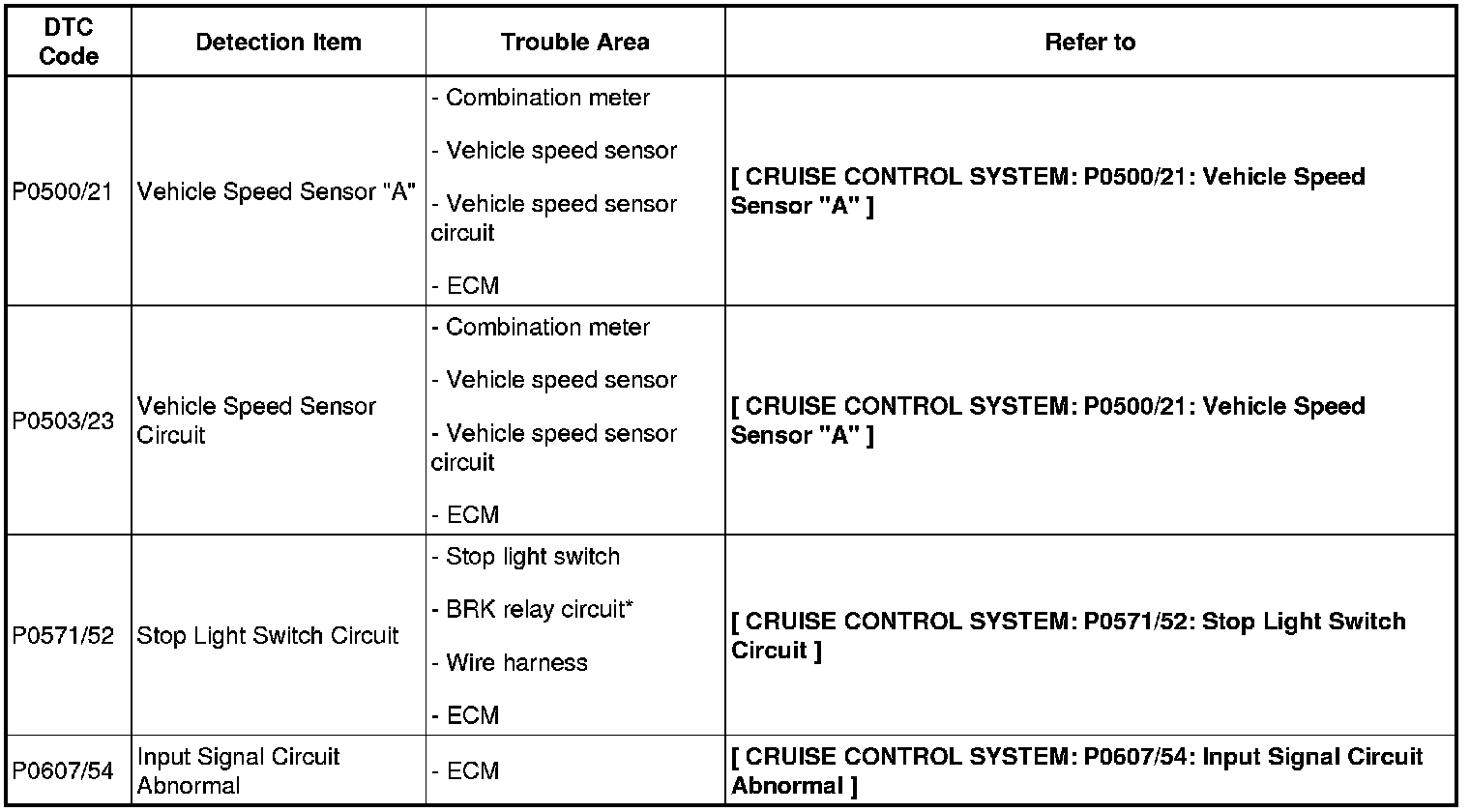

Cruise control system (w/ VSC)
