AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

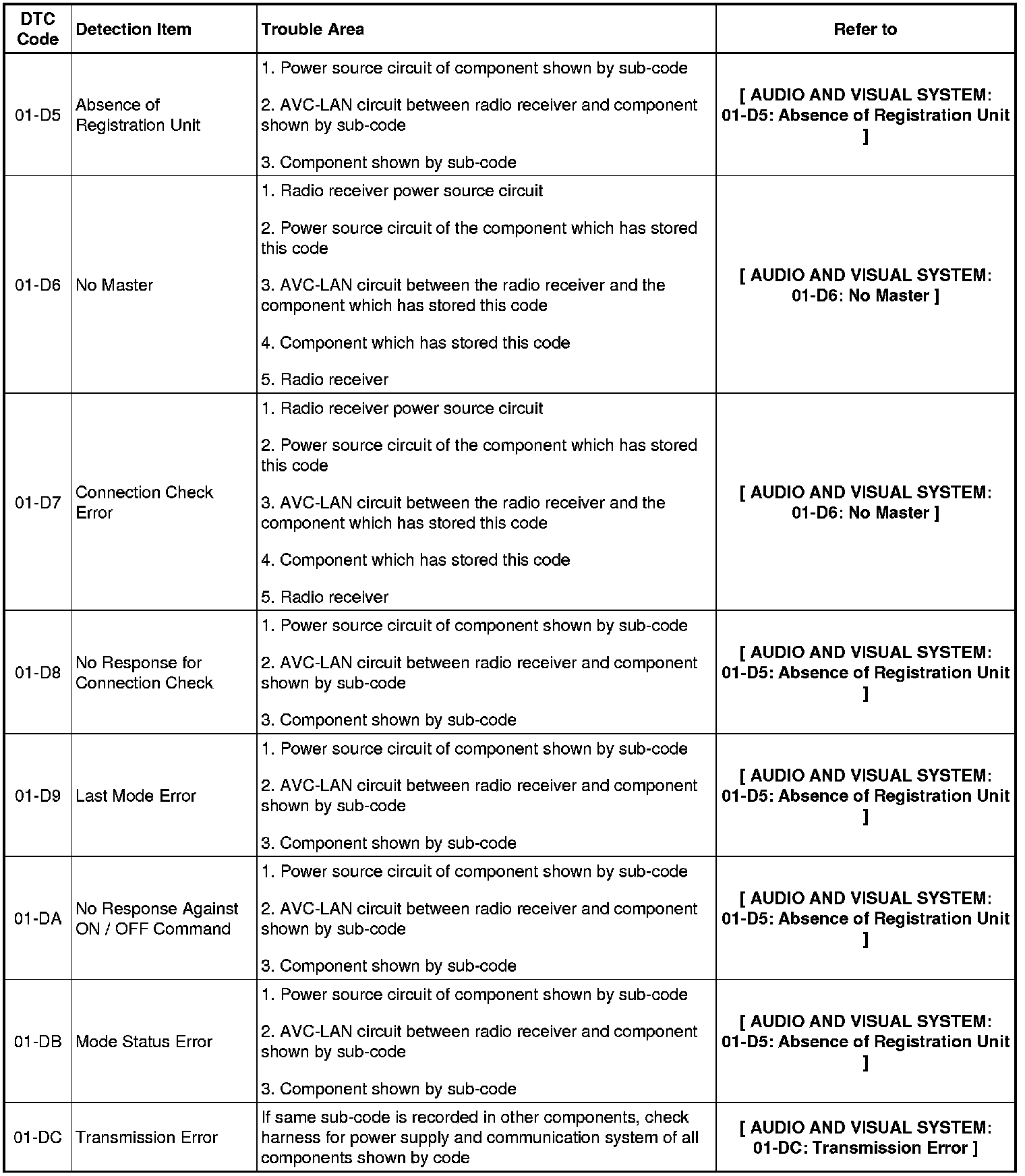

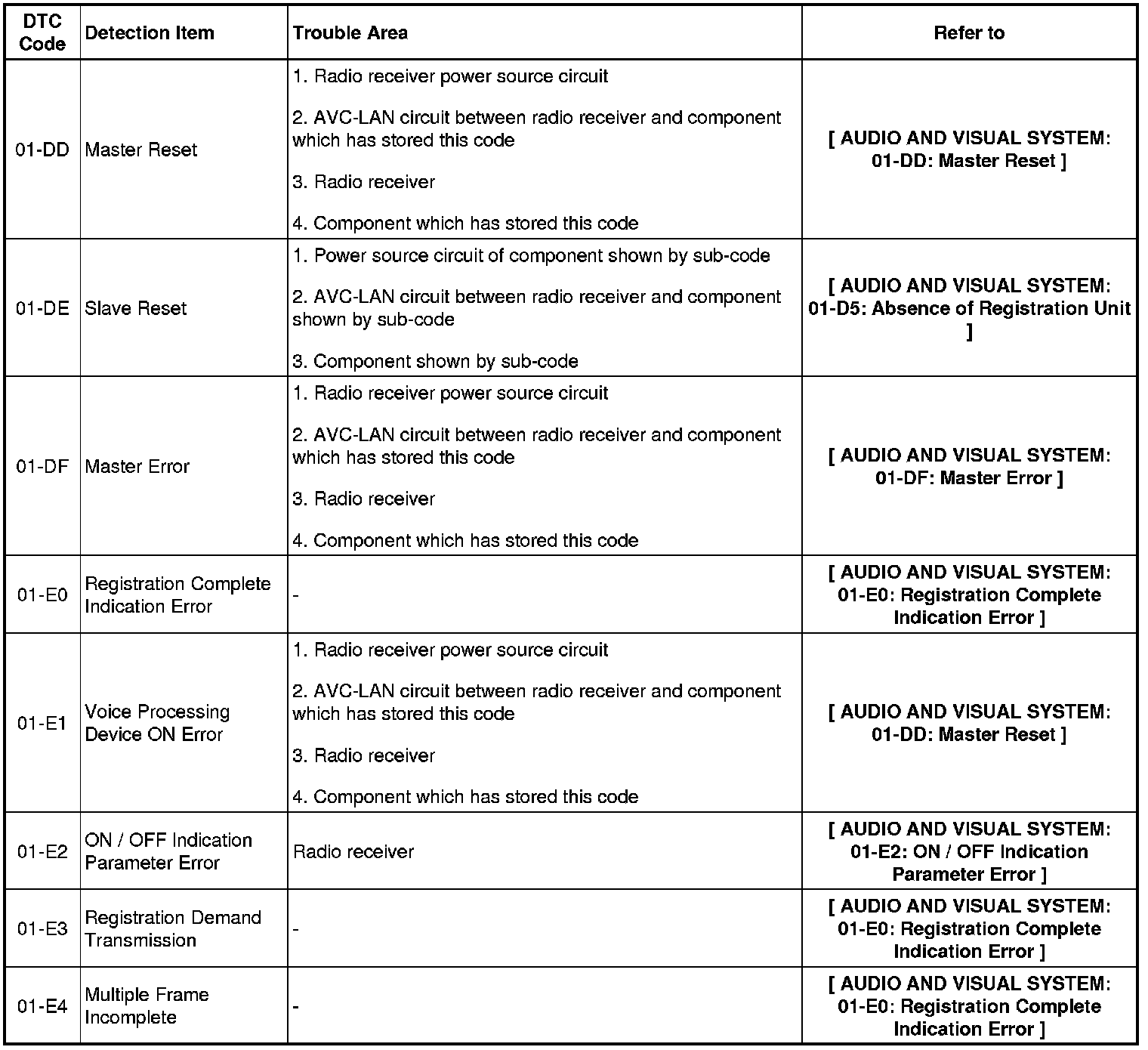

COMMUNICATION DIAGNOSIS:

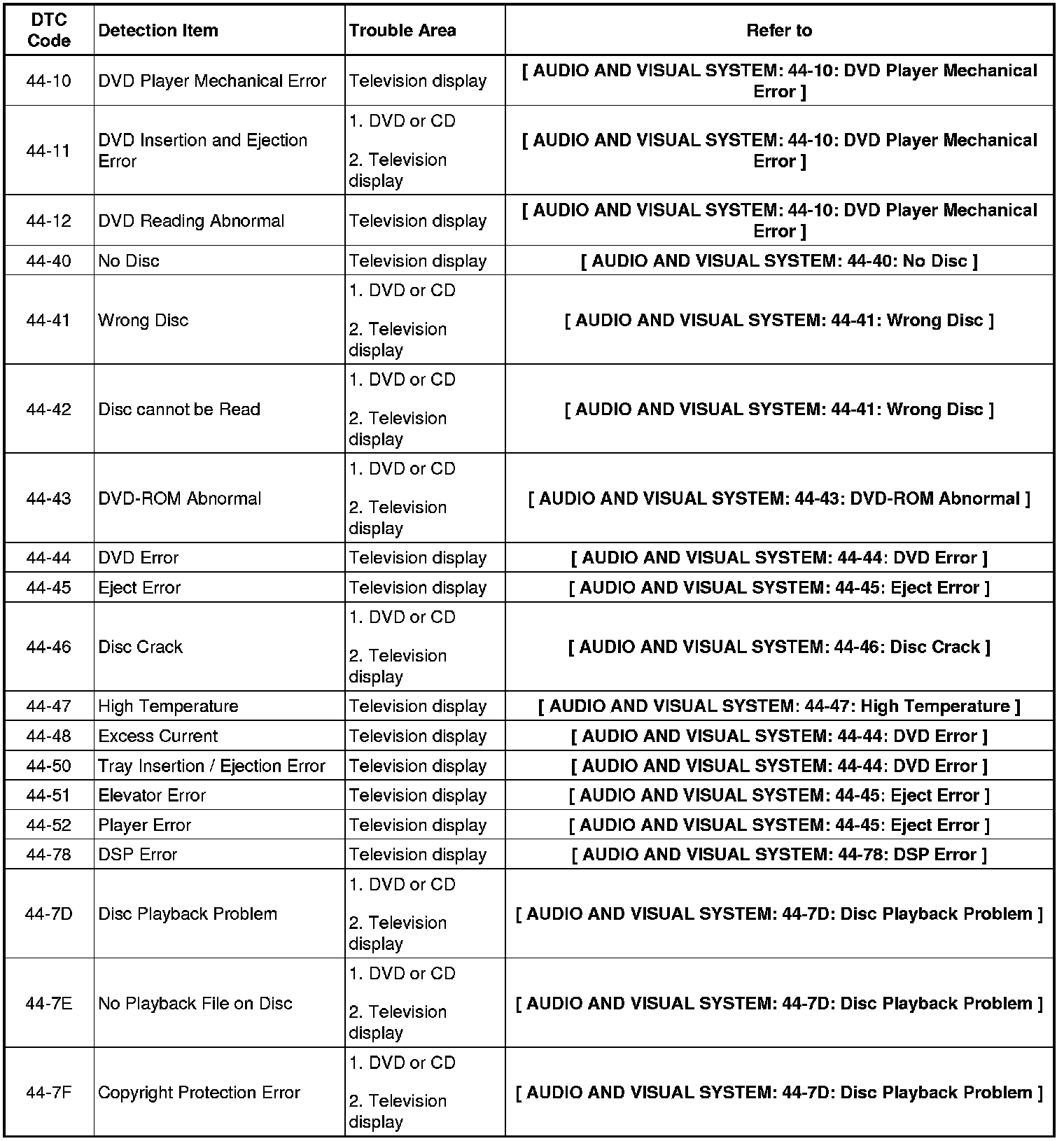

DVD PLAYER:

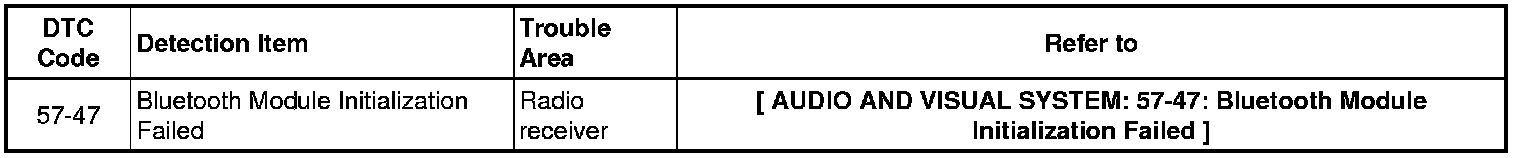

TELEPHONE:

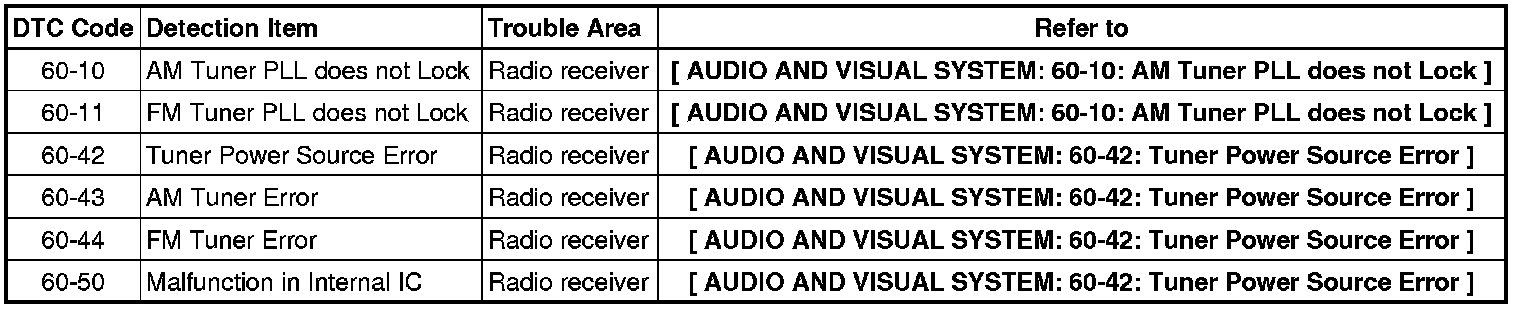

RADIO UNIT:

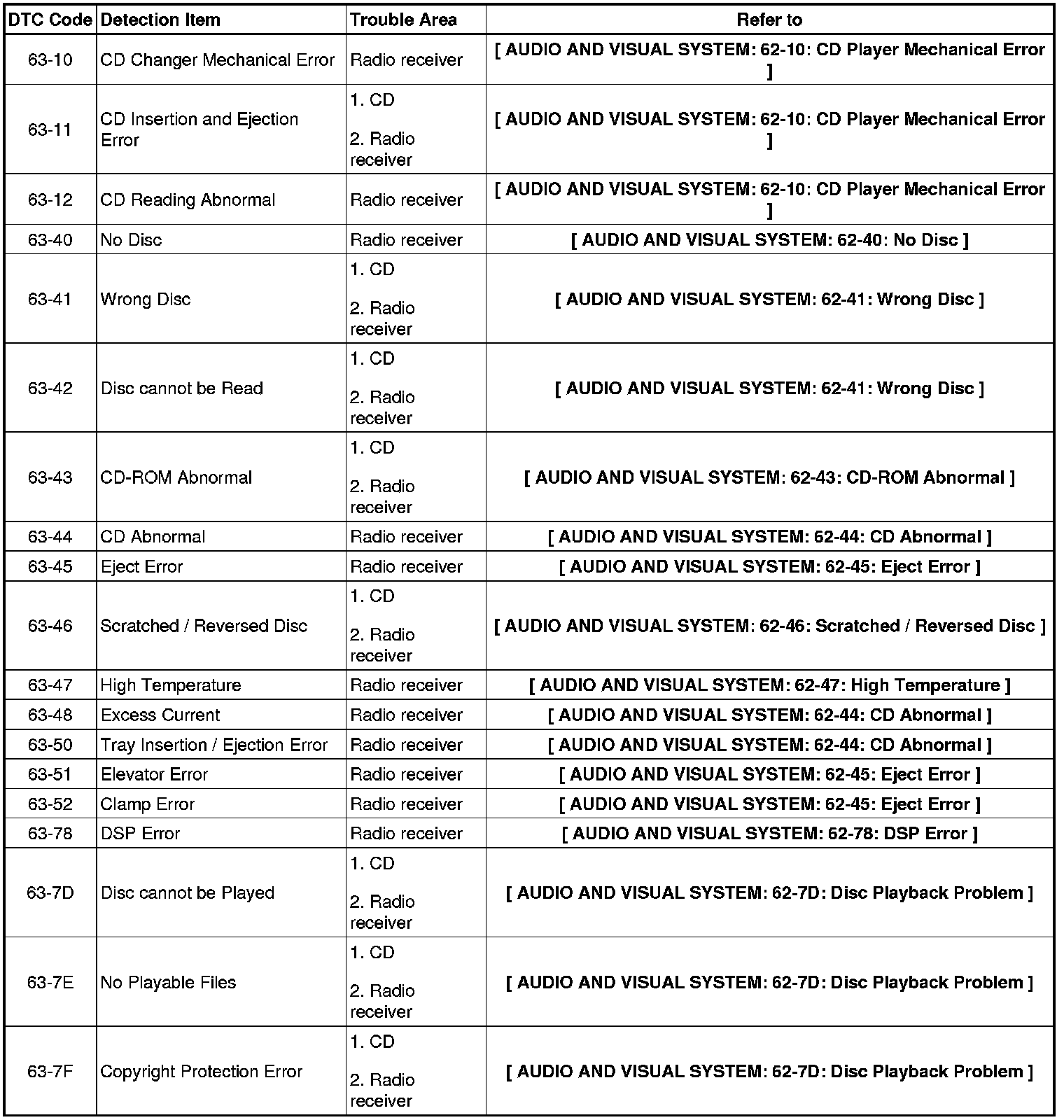

CD CHANGER:

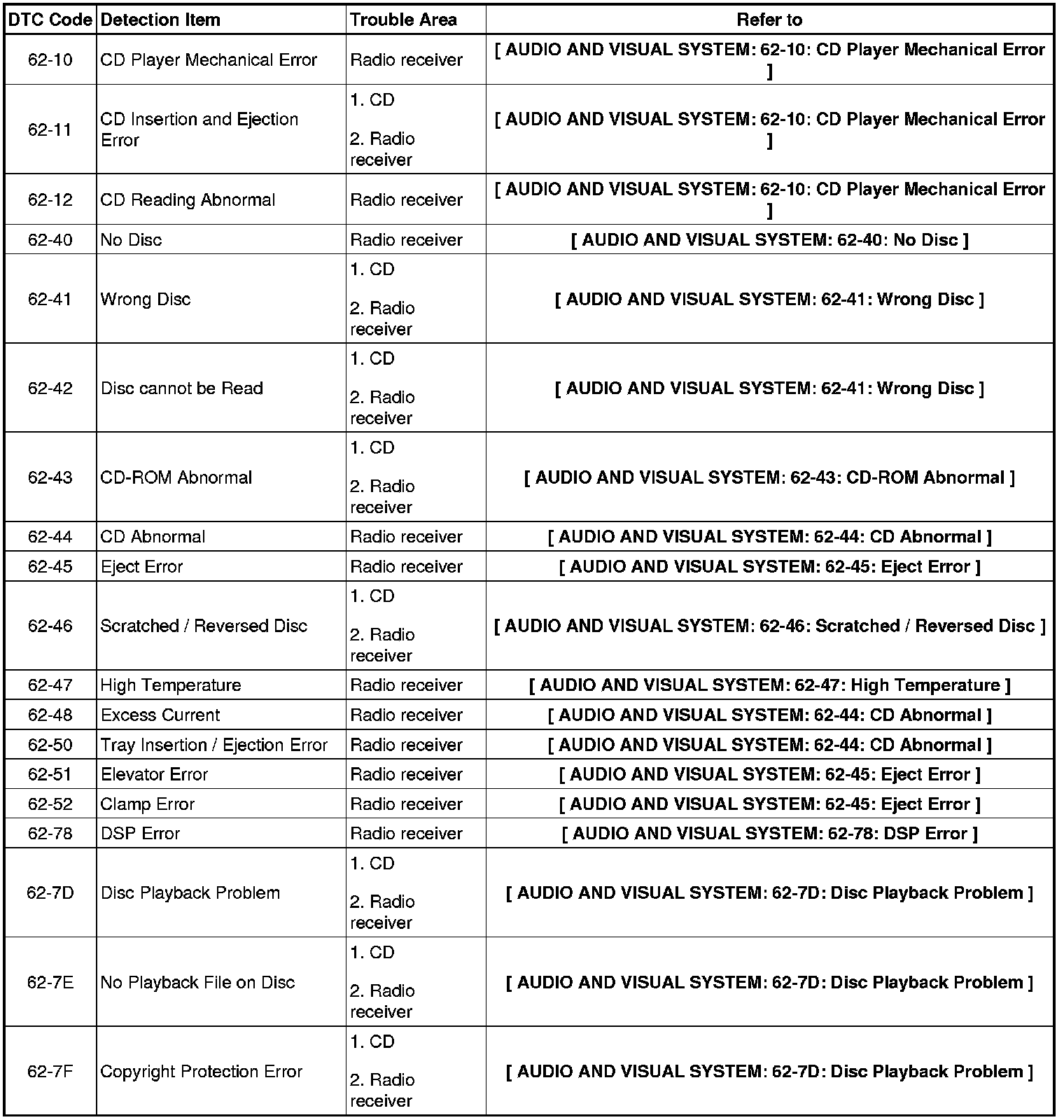

IN-DASH CD CHANGER:

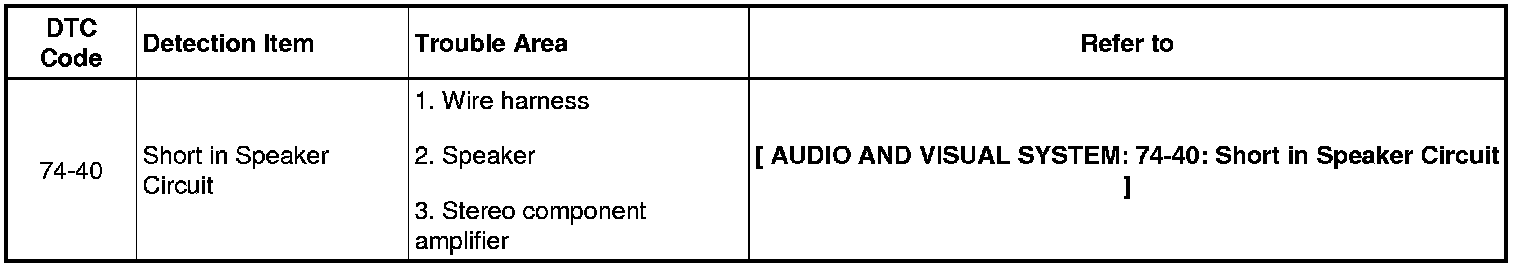

VOL:
