Manual Air Conditioning System

AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): DIAGNOSTIC TROUBLE CODE CHART

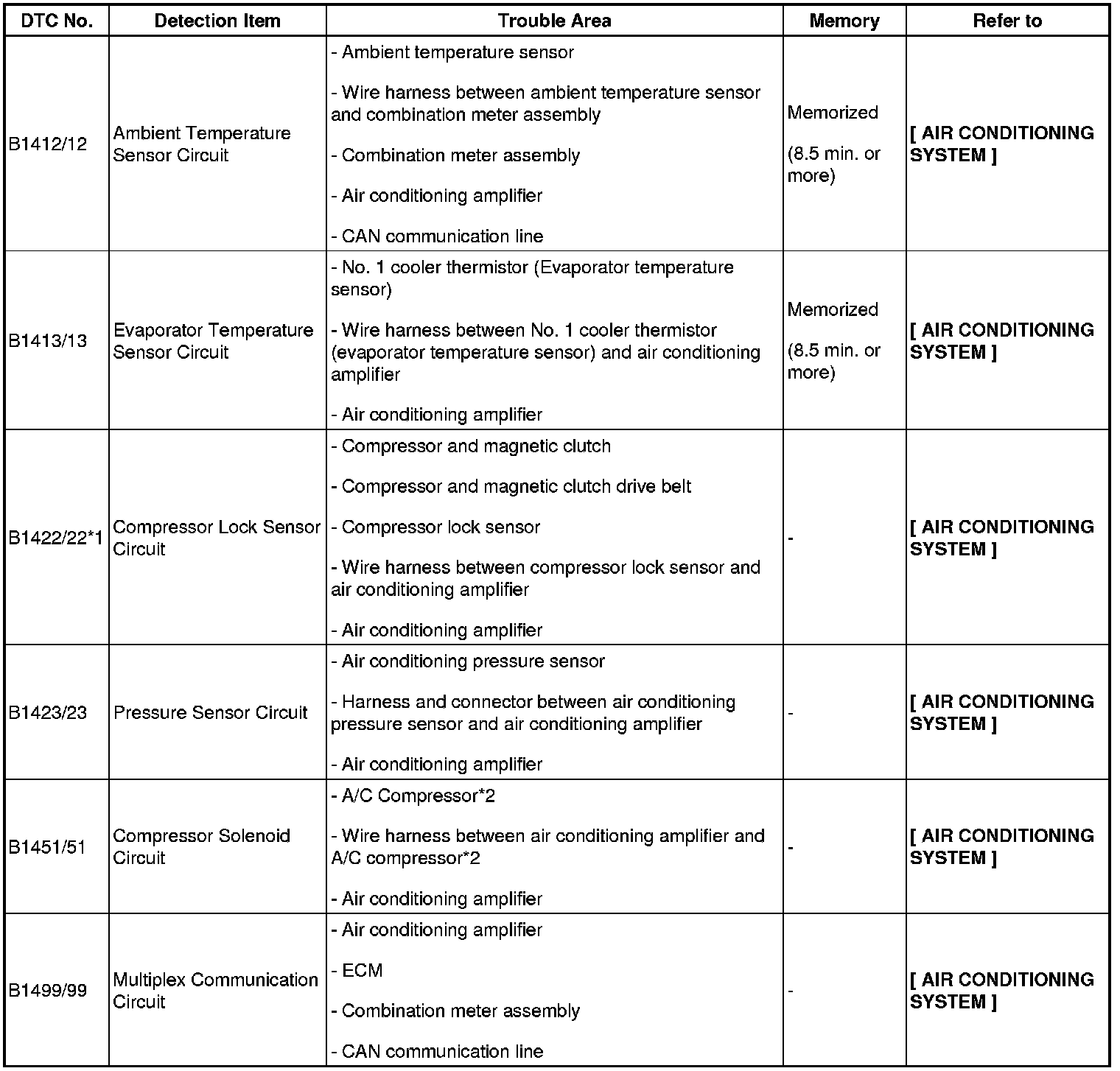

DIAGNOSTIC TROUBLE CODE CHART
HINT: When the air conditioning system functions properly, DTC B1400/00 is output.

Air Conditioning system





HINT: *1: DTC B1422/22 (Compressor Lock Sensor Circuit) is indicated only for a currently occurring malfunction for 2GR-FE.
*2: Compressor and Pulley for 2AZ-FE, Compressor and Magnetic Clutch for 2GR-FE
