Windshield Deicer System

WINDOW / GLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL
The windshield deicer system thin heater wires are attached to the inside of the windshield glass and deice the windshield surface quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.

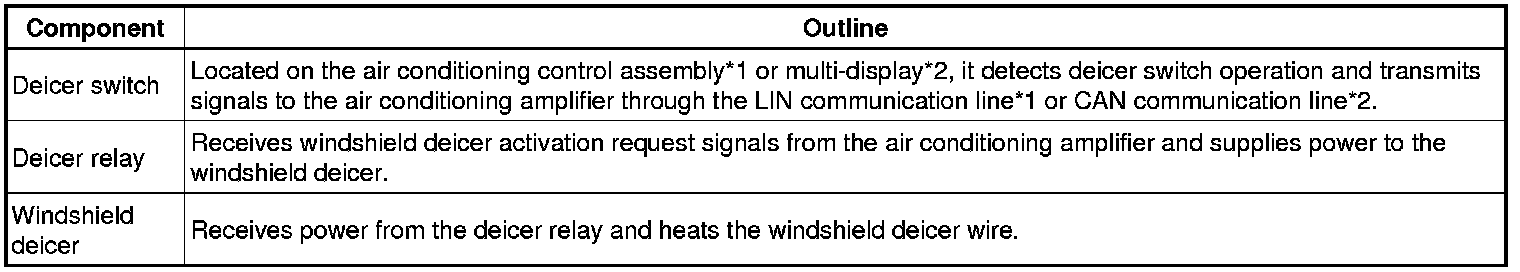

2. FUNCTION OF MAIN COMPONENT





HINT: *1: w/o Multi-display
*2: w/ Multi-display

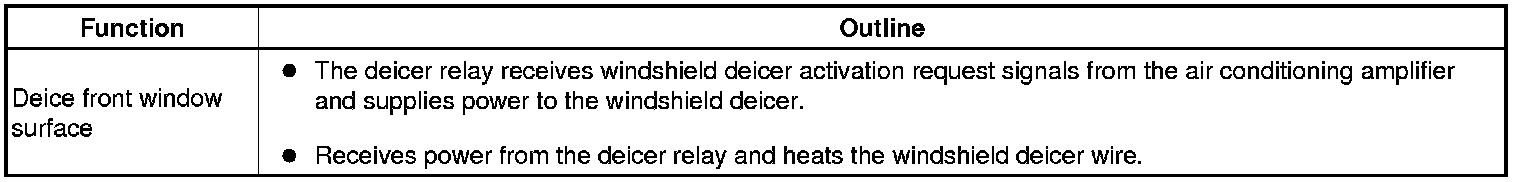

3. DESCRIPTION

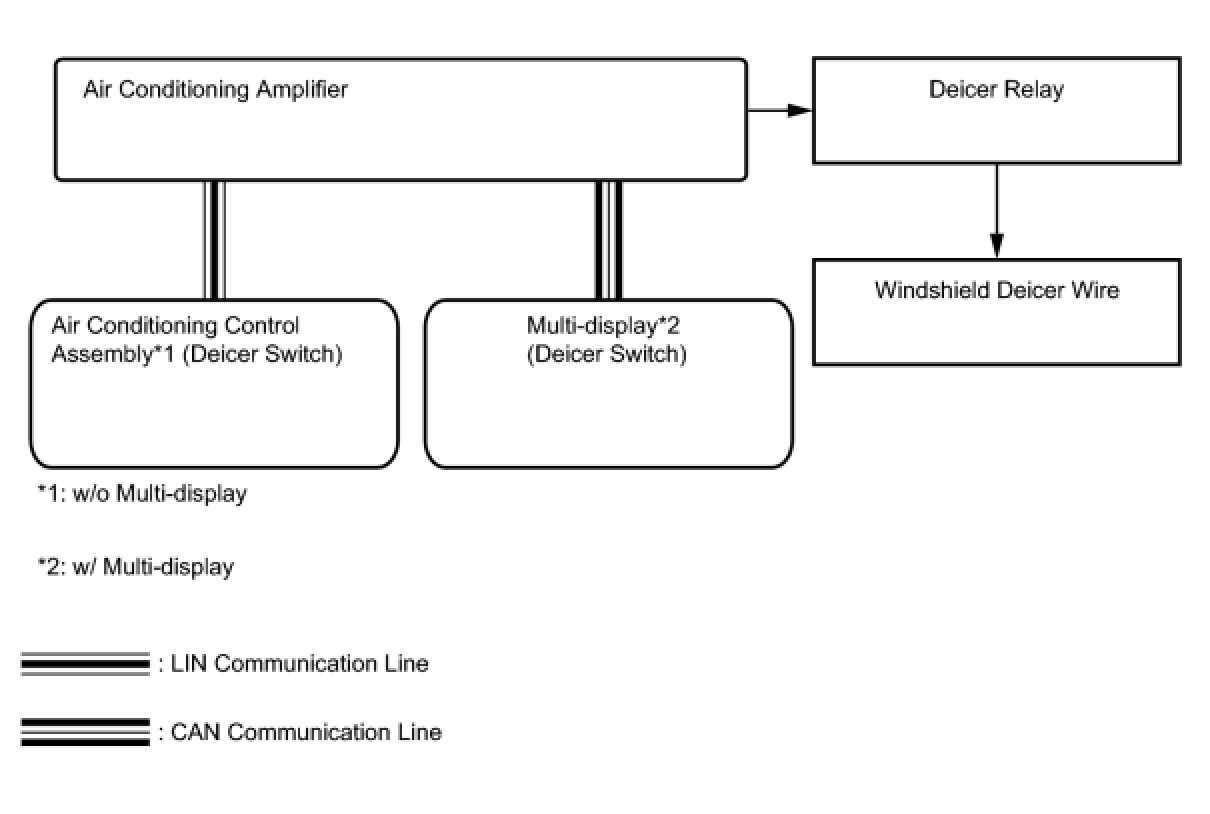

SYSTEM DIAGRAM

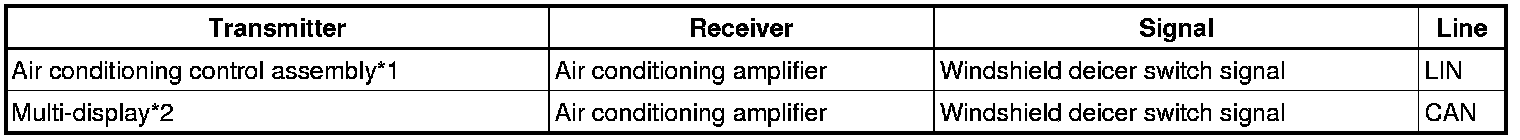

Communication Table





HINT:*1: w/o Multi-display
*2: w/ Multi-display
