Installation

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: SPEED SENSOR: INSTALLATION

INSTALLATION

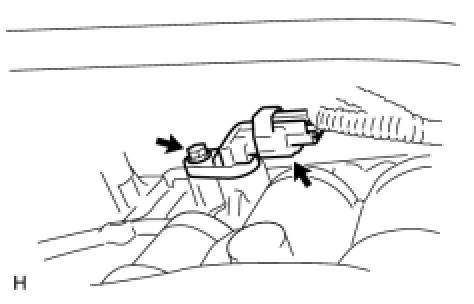

1. INSTALL SPEED SENSOR SP2
(a) Coat a new O-ring with ATF and install it to the sensor.
(b) Install the sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(c) Connect the sensor connector.

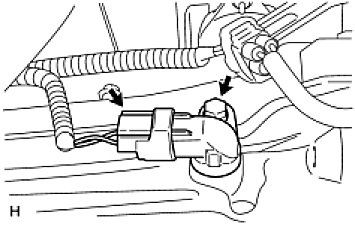

2. INSTALL SPEED SENSOR NT
(a) Coat a new O-ring with ATF and install it to the sensor.
(b) Install the sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(c) Connect the sensor connector.
