Removal

3UR-FE STARTING: STARTER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Removal

3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Removal

4. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

5. REMOVE NO. 2 ENGINE UNDER COVER

6. REMOVE FRONT FENDER APRON SEAL FRONT RH

7. REMOVE FRONT FENDER APRON SEAL REAR RH

8. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

9. REMOVE TAILPIPE ASSEMBLY

10. REMOVE CENTER EXHAUST PIPE ASSEMBLY

11. REMOVE FRONT EXHAUST PIPE ASSEMBLY

12. REMOVE NO. 1 MANIFOLD STAY

13. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

14. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH

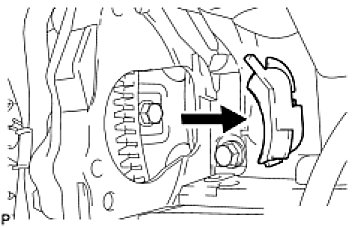

15. REMOVE STARTER COVER

(a) Remove the 3 bolts and starter cover.
16. REMOVE STARTER ASSEMBLY

(a) Disconnect the starter connector.
(b) Remove the nut and disconnect the starter wire.

(d) Remove the flywheel housing side cover.
