3UR-FE STARTING: STARTER: INSTALLATION

INSTALLATION

1. INSTALL STARTER ASSEMBLY

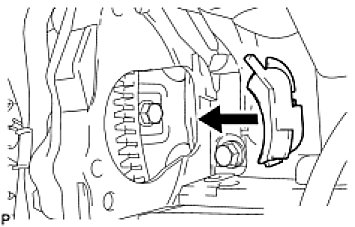

(a) Install the flywheel housing side cover.

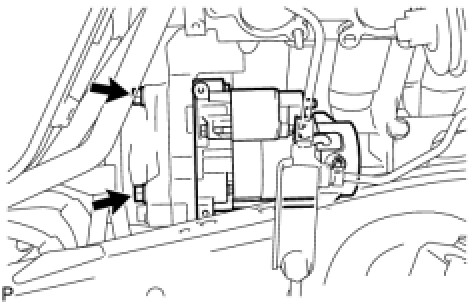

(b) Install the starter with the 2 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)

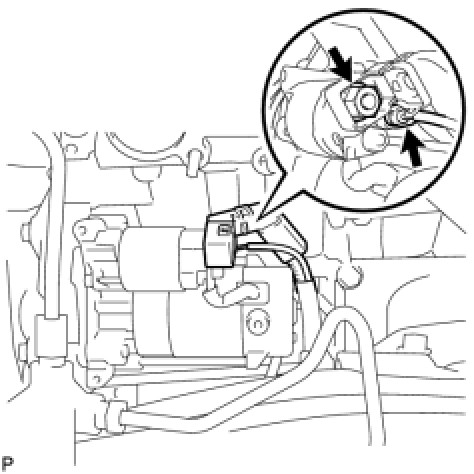

(c) Install the starter wire with the nut.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(d) Connect the starter connector.
2. INSTALL STARTER COVER

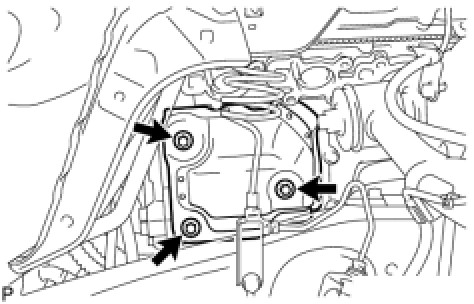

(a) Install the starter cover with the 3 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH

4. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

5. INSTALL NO. 1 MANIFOLD STAY

6. INSTALL FRONT EXHAUST PIPE ASSEMBLY

7. INSTALL CENTER EXHAUST PIPE ASSEMBLY

8. INSTALL TAILPIPE ASSEMBLY

9. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. INSPECT FOR EXHAUST GAS LEAK

12. INSTALL NO. 2 ENGINE UNDER COVER

13. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

14. INSTALL FRONT FENDER APRON SEAL REAR RH

15. INSTALL FRONT FENDER APRON SEAL FRONT RH

16. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation

17. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation
