Home >> Toyota Truck >> 2008 >> Landcruiser V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Specifications

Seat Belt Systems: Specifications








SPECIFICATIONS: SEAT BELT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

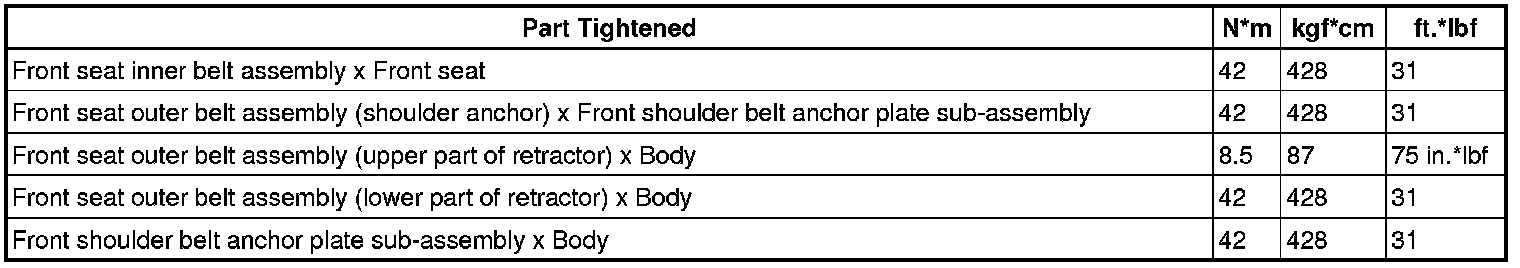

Front Seat Belt

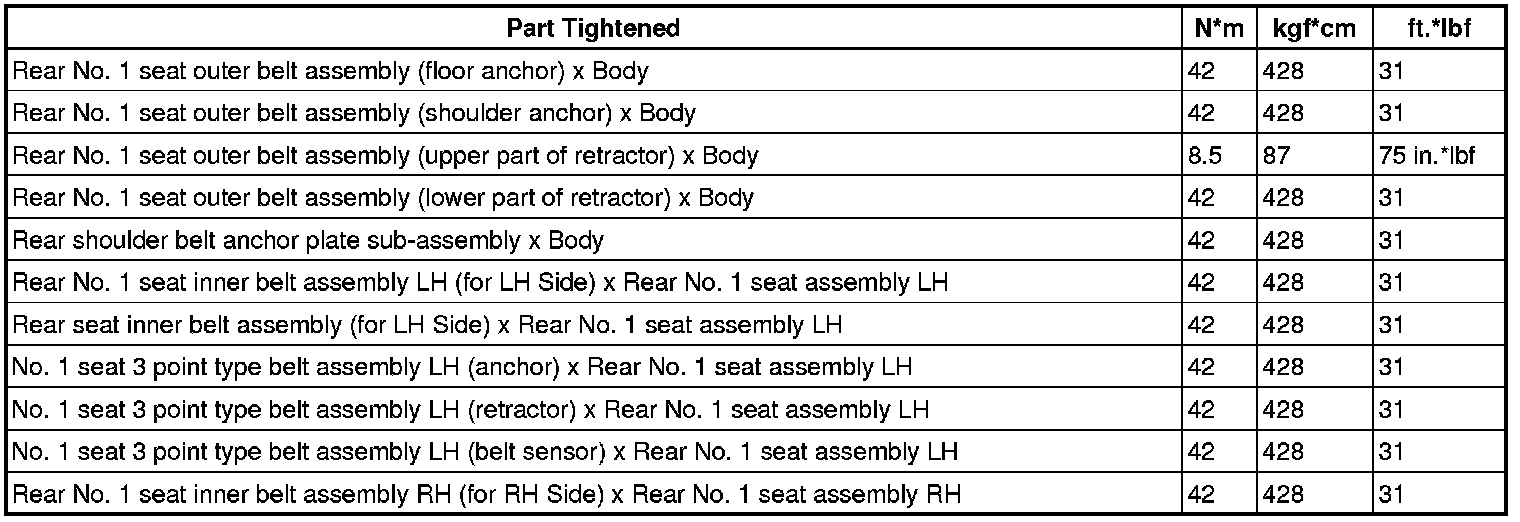

Rear No. 1 Seat Belt

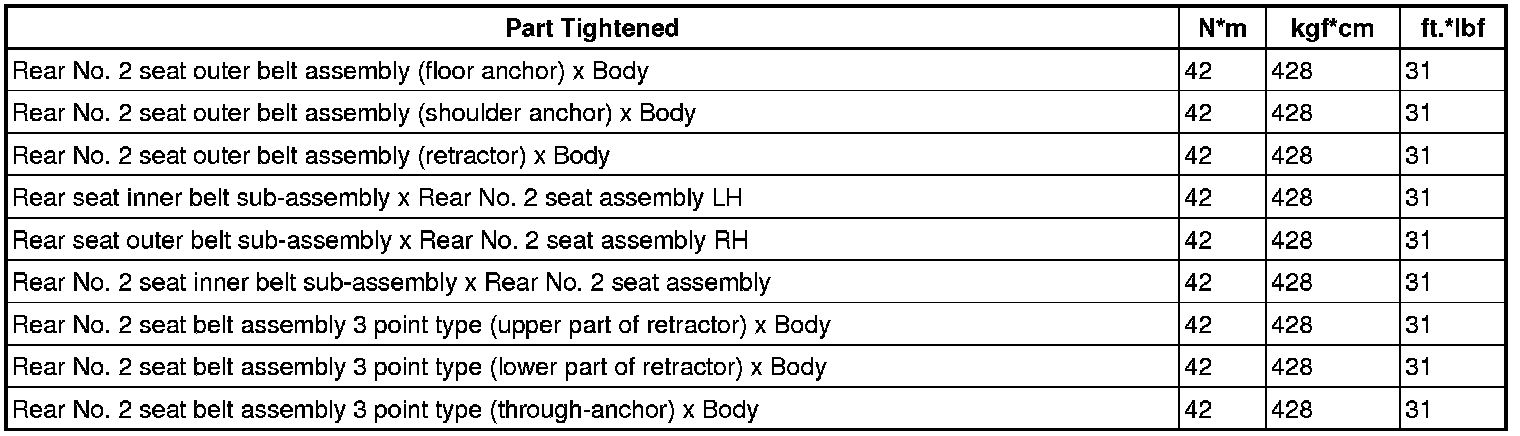

Rear No. 2 Seat Belt
