SUPPLEMENTAL RESTRAINT SYSTEMS: SIDE AIRBAG SENSOR: INSTALLATION

INSTALLATION

1. INSTALL SIDE AIRBAG SENSOR






(a) Check that the engine switch is off.
(b) Check that the cable is disconnected from the battery negative (-) terminal.
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

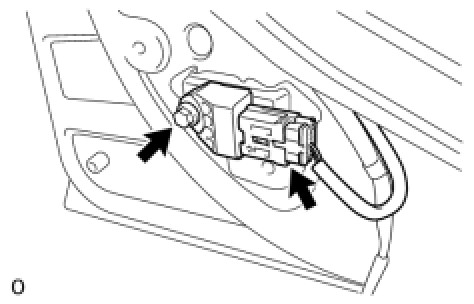

(c) Install the side airbag sensor with the bolt.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
NOTICE:
- If the side airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the side airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

(d) Check that there is no looseness in the installation parts of the side airbag sensor.
(e) Connect the connector.
2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

3. INSTALL DOOR ASSIST GRIP COVER LH Reassembly

4. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY Reassembly

5. INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH Reassembly

6. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH Reassembly

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
